Motorola UHF Bluetooth RFID Sled Reader Gun

Sku: RFD8500-1000100-US

Brand: Motorola

Category: Bar Code Printers

$1,910.70 $2,491.58 23% OFF

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Power: PowerPrecision Li-Ion batteries, 4410 mAh, Configurations: RFID only or RFID with SE4710 Imager, Notification: LED and audible tone, User Input: Trigger, 3 push button switch, Standards Supported: EPC Class 1 Gen 2; EPC Gen2 V2, RFID Engine: Zebra Proprietary Radio Technology, Fastest Read Rate: 600+ tags/sec.

-
+

We Accept

Thumbnail 3

Description

Manufacture # Motorola | Model # RFD8500-1000100-US

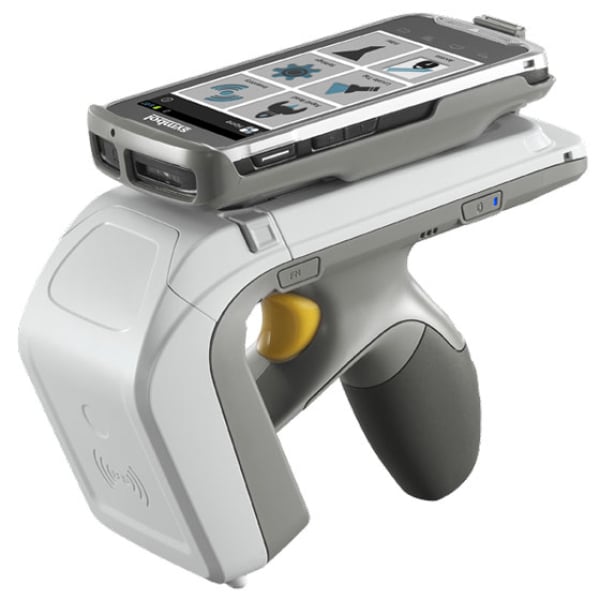

The Zebra RFD8500 UHF Bluetooth RFID Sled allows users with select Zebra and compatible third-party mobile devices, tablets and smart phones to enable enterprise-class UHF RFID scanning technology into those devices, whenever and wherever you need it. Simple, easy and cost-effective, the RFD8500 is a great addition to any industry looking to add RFID capability to their repertoire.



Features:

  • Leverage your mobile computing strategy and add world-class data collection capability. Just twist to lock onto or remove the RFD8500 from any Zebra or third-party mobile computer via a Quad Lock or Zebra custom-tailored adaptor.
  • Enable a real-time wireless connection to your mobile or backend systems via Bluetooth 2.1 or later. If a wireless connection is not available, batch mode enables the collection of up to 500 bar codes and/or 42,000 RFID tags.
  • Get maximum read/write speeds and coverage required to maximise workforce efficiency. And, our unique power-optimising algorithm delivers the superior battery cycle times that ensure full-shift power, even with intensive usage.


Overview:

  • Power: PowerPrecision Li-Ion batteries, 4410 mAh
  • Configurations: RFID only or RFID with SE4710 Imager
  • Notification: LED and audible tone
  • User Input: Trigger, 3 push button switch
  • Standards Supported: EPC Class 1 Gen 2; EPC Gen2 V2
  • RFID Engine: Zebra Proprietary Radio Technology
  • Fastest Read Rate: 600+ tags/sec



Manufacturer Warranty: 02 Year Limited Warranty

Dimensions 5.1 in. H x 3.1 in. W x in. 7.3 in.
Weight Imager Version: 15.3 oz./~435 grams
Non-Imager version: 15.3 oz./~430 grams
Power PowerPrecision Li-Ion batteries, 4410 mAh
Configurations RFID only or RFID with SE4710 Imager
Notification LED and audible tone
User Input Trigger, 3 push button switch
Standards Supported EPC Class 1 Gen 2; EPC Gen2 V2
RFID Engine Zebra Proprietary Radio Technology
Fastest Read Rate 600+ tags/sec
Nominal Read 20+ ft./ 6+ m
Frequency Range/RF Output US: 902-928MHz; 4 - 34 dBm (EIRP)
EU: 865-868MHz; 4 - 34 dBm (EIRP)
Japan: 916-921Mhz (w LBT), 4 - 34 dBm (EIRP)
Japan: 916-923Mhz, 4- 27 dBm (EIRP)
Batch Mode Store 40,000+ RFID Tags, 500 barcode
Drop Specification Multiple 4 ft./1.2 m drops to concrete (0° to 40° C)
Tumble Specification 1000 drops (500 tumbles, 1.6 ft./0.5 m) at room temperature
Operating Temp. -10°C to 40°C / 14°F to 104°F
Storage Temp -40°C to 70°C / -40°F to 158°F
Charging Temp 0°C to 40°C / 14°F to 104°F
Humidity 5-85% non-condensing
Electrostatic Discharge +/-15kV air discharge
+/-8kV direct discharge
+/-8kVdc indirect discharge
Sealing IP52
Bluetooth Bluetooth Version 2.1
SPP profile
HID Profile
Apple iAP2/Mfi
Bluetooth Class 2
Bluetooth Pairing Secure Simple Pairing ‘just works’ method
Compatible Host Devices (Bluetooth) Devices with Android 4.4 or iOS 8 OS
External Interface MicroUSB Connector and Charging Cradle based charging
Other Accessories Adapter mounts for Enterprise Zebra Mobile Computers; Quad lock adapter for variety of smart phones
EMI/EMC FCC Part 15 Subpart B Class B; ICES 003 Class B
EN 301 489-1; EN 301 489-3; EN 301 489-17;
EN 55022 Class B; EN55024; EN 55032 Class B
Electrical Safety UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEC 60950-1, EN 60950-1
RF Exposure EU: EN 50364, EN 62479; USA: FCC Part 2
(Section 2.1091), OET Bulletin 65 Supplement C;
Canada: RSS-102
RFID/Bluetooth EU: EN 300 328, FCC Part 15 Subpart C;
Canada: RSS-247
