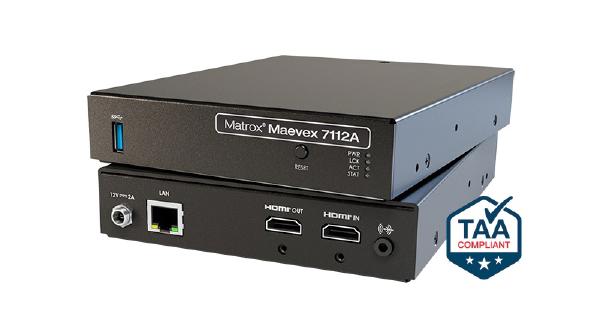

Matrox Maevex 7112A H.264 4K Encoder

Sku: MVX-E7112A-1

Availability: Out of Stock

Brand: Matrox

Category: Matrox Video Cards

$2,874.30

Maximum Capture Resolution: 1x 3840x2160 at 60Hz, Encoding Level: Up to 5.2, File formats: Transport Stream (.TS), IP Stream Support: Unicast, multicast, Network Security: 802.1x support, 02 Years Limited Warranty, MVX-E7112A-1.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # Matrox | Model # MVX-E7112A-1



A single-channel H.264 encoder, Matrox Maevex 7112A delivers 4K60 input capture and encode with zero-latency pass-through. Maevex 7112A supports multiple streaming protocols, multiple chroma sub-sampling, and adjustable encoding parameters. All of this is packaged in a fanless, low power, rack-ready appliance. Maevex 7100 Series includes the PowerStream Plus application and Command Center, a convenient new web user interface.



Features:

  • 4K60 input capture - and encode Stream and record-simultaneously-up to 4K60, with high quality scaling options.
  • Zero latency pass-through - Achieve zero-latency pass-through for real-time output of desktop, camera, and other types of content.
  • Standards-based HEVC and AVC codecs - Deliver interoperability between existing devices and environments.
  • H.265 efficiency - Achieve flawless quality with minimal bandwidth usage.
  • Ultra-low latency - When paired with Maevex 6152 decoders, Maevex 7112 delivers ultra-low latency transmission.
  • Flexible streaming - Enjoy five streaming protocols-RTSP, MPEG2-TS, RTP, RTMP(S) and SRT-for secure, trouble-free streaming.
  • Fanless, quiet, and rack mountable - Deliver zero noise operation thanks to its fanless design, making Maevex 7112 ideal for control room environments and operator desktops. Install up to three devices horizontally in 1 RU of rack space.


Overview:

  • Maximum Capture Resolution: 1x 3840x2160 at 60Hz
  • Encoding Level: Up to 5.2
  • File formats: Transport Stream (.TS)
  • IP Stream Support: Unicast, multicast
  • Network Security: 802.1x support



Manufacturer Warranty: 02 Years Limited Warranty

Decoder or Encoder Signal Type - Video
Rackmountable Yes
Maximum Capture Resolution 1x 3840x2160 at 60Hz
Color Space Capture RGB and YUV 8-bit support, Color space conversion support
Encoding formats (Codecs) Video: H.264/MPEG-4 Part 10 (AVC), Audio: MPEG-4 AAC-LC, OPUS and LPCM
Chroma Sub-Sampling 4:2:0 (8-bit and 10-bit)
Encoding capability at 420 1x 3840x2160 at 60Hz
Profiles Baseline (BP), Main (MP), High (HiP), High10 (Hi10P), Intra, up to Level 5.2
Encoding Level Up to 5.2
Bitrate range (Per stream) 64Kbps to 60 Mbps, 15 Mbps (default)
Rate Control CBR, VBR, adjustable GOP size
Audio Sample Frequency 32 kHz, 44.1 kHz, and 48 kHz
Audio Bitrates From 64 to 320 Kb/s (AAC-LC, OPUS and LPCM)
Scaling Yes
File formats Transport Stream (.TS)
Programmability Start/stop, duration, file location
Recording Locations Shared network drive or NAS, USB 3.0
Streaming Protocols RTSP (TCP), RTCP & RTP (UDP) - all required, RTP over UDP, SRT over UDP, RTMP/(S), MPEG2-TS over UDP, MPEG2-TS over RTP, RTSP over TCP (interleaved)
Command and Control HTTPS over TCP, UPnP (discovery), SSDP
Network Standard 100/1,000 base-T Ethernet, auto speed, half/full duplex, IGMPv2 and IGMPv3 support
IP addressing iPv4, DHCP (default) and static IP address support, iPv6
IP Stream Support Unicast, multicast
Network Security 802.1x support
PowerStream Plus (Free download) Compatible with Maevex 6100 Series and Maevex 5100 Series, Network discovery, Multi-encoding and recording management, Multi-protocol management, Frame rate management, Resolution control, Administrator and user credential management, Scaling management
Command Center Web-UI Encoding and recording management, Multi-protocol management, Frame rate management, Resolution control, Scaling management
Maevex 7100 Series REST API Available for lower-level development
Supported Operating Systems Microsoft Server 2022, Windows Server 2019, Windows 11, Windows 10
Network Connector 1x RJ45 with status LED indicators
Video Input 1x HDMI 2.0 (Type A) with audio support
Video Output/Pass-Through 1x HDMI 2.0 (Type A) with audio support
Audio Input 1x HDMI digital LPCM two-channel stereo audio, 1x 3.5 mm analog stereo audio in, 0.57 Vrms, 29 kohms, 6 dB to +16.5 dB
Audio Output 1x HDMI digital LPCM two-channel stereo audio
USB (For recording) 1x USB 3.0
Operating Temperature (Maximum) 113 F
Operating Temperature (Minimum) 32 F
AC Voltage (Maximum) 240 Volts
AC Voltage (Minimum) 100 Volts
Active Power 12 Watt
DC Voltage 12 Volts
Operating Altitude 650 hPa (3580m) to 1013 hPa (0m)
Operating Humidity 10 to 90% non-condensing
Depth 1.68 in
Height 7.52 in
Width 8.53 in
