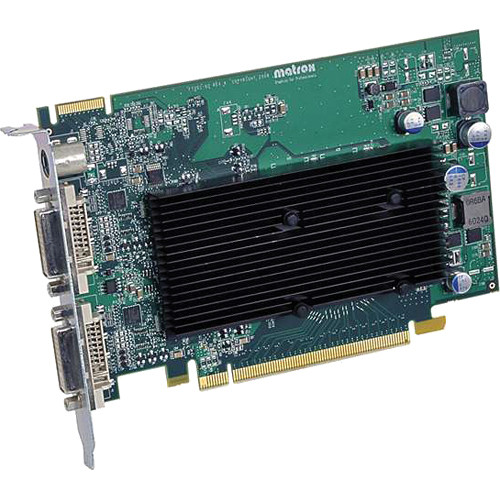

Matrox M-Series M9120 PCIe x16 ATX graphics card

Sku: M9120-E512F

Availability: Out of Stock

Brand: Matrox

Category: PCI Cards

$613.80

The Matrox M9120-E512F is a high-resolution, fanless graphics card designed for multi-display setups in professional environments. Featuring 512MB DDR2 memory and PCIe x16 interface, it supports two video outputs via DVI-I, delivering resolutions up to 2048x1536 (analog) or 1920x1200 (digital) per output. Its compact full-height, half-length design makes it ideal for space-constrained systems, while advanced software like Matrox PowerDesk enables features such as stretched desktop, clone, pivot, and bezel management (Windows only). Perfect for business, control rooms, or digital signage applications.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Matrox | Model: M9120-E512F



The Matrox M9120-E512F is a reliable professional-grade graphics card designed for dual-display setups in business and industrial environments. With a PCIe x16 interface and full-height, half-length form factor, it supports both digital and analog outputs via dual DVI-I connectors. This fanless card is equipped with 512 MB of DDR2 memory and supports maximum analog resolutions up to 2048x1536 and digital resolutions up to 1920x1200 per output. The included Matrox PowerDesk software enables advanced multi-display configurations such as independent desktop, stretched, clone, pivot, and joined adapter modes. Ideal for mission-critical workstations, the M9120 is a quiet and efficient solution for 2D business graphics.



Key Features:



  • Part Number: M9120-E512F
  • PCIe x16 bus interface with full-height, half-length design
  • Fanless cooling for silent operation
  • Dual-channel video output via DVI-I (Analog and SL-DVI)
  • Supports resolutions up to 2048x1536 (Analog) and 1920x1200 (Digital)
  • 512 MB DDR2 video memory for stable multi-monitor performance
  • Compatible with Matrox PowerDesk software for flexible display modes
  • Includes 2x DVI to Analog (HD15) adapters

Part Number M9120-E512F
Bus Interface PCIe x16
Form Factor Full height / Half length
Bracket ATX
Video Output Channels: 2
Formats: SL-DVI, Analog
Connectors: DVI-I
Max Cards per System 2
Max Resolutions Analog: 2048x1536
Digital: 1920x1200 (per output)
Memory 512 MB DDR2
Bezel Management Yes (Windows only)
Cooling Fanless
Dimensions (L x H) 6.60 x 4.376 inches
OpenGL Support OpenGL 2.0
Included Accessories 2x DVI to Analog (HD15) Adapters
Software Matrox PowerDesk (Free Download)
Modes: Independent Desktop, Stretched, Clone, Pivot, Joined Adapter*
