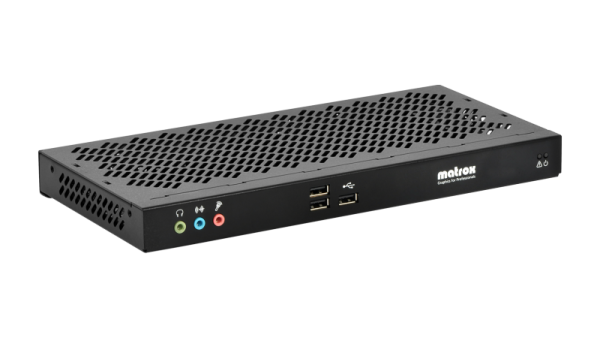

Matrox Extio F2208 Dual-Monitor KVM Extender

Sku: XTO2-F2208F

Availability: Out of Stock

Brand: Matrox

Category: Matrox Video Cards

$5,621.00

Video Output: 2x DisplayPort 1.1, Link Connector: Dual-LC, USB Ports: 5x USB 2.0 (Type A), GPU: Matrox, Memory: 2 GB, Video Resolutions: 2x 2560x1600 (DisplayPort), 2x 1920x1200 (Digital, Analog), Warranty: 02 Years, XTO2-F2208F.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # Matrox | Model # XTO2-F2208F



Matrox Extio F2208 is a point-to-point, KVM extension solution that uses fiber-optic cable to separate the keyboard, mouse, USB, audio peripherals and up to two displays from the rest of the computer by up to 1 km (3280 feet). Equipped with the latest Matrox KVM technology, the Extio F2208 extends the bus via a PCIe bus interface card while the fiber-optical connection guarantees performance - eliminating hidden/dropped frames, data latency, and artifacts as seen with compression-based solutions.



Features:

  • Independent and stretched mode support for 2x1 configurations
  • Combine two Matrox PCIe interface cards, Matrox Extio F2208, Extio F2408, plus Extio F2408E Expander units to drive up to 16 DisplayPort and/or DVI displays, keyboard, mouse, audio and up to eight additional USB 2.0 ports at up to 1 km from the PC
  • Clone multiple displays in two separate remote locations across two fiber-optic cables, while also stretching desktops
  • Max. resolution of 2560x1600 (DisplayPort), & 1920x1200 (Digital, Analog) per display
  • Fiber-optic connection allows raw, uncompressed data to travel between the remote host system and the user-side Extio F2208 appliance, resulting in unmatched HD resolution support and uncompromised workstation performance
  • Designed for process control rooms, dispatch centers, and other mission-critical environments that require stable, reliable I/O extension technology
  • Flexible connectivity with 5x USB 2.0 ports for keyboard, mouse, touch screens and other HIDs
  • BIOS Level Keyboard Support enables basic keyboard functionality and access to the system BIOS directly from the user-side Extio F2208 appliance
  • Extio Setup Utility (BIOS Level Configuration & Diagnostics) to verify and/or configure the fiber-optic transceiver, link status, USB ports, hardware mapping and device password protection



Overview:

  • Video Output: 2x DisplayPort 1.1
  • Link Connector: Dual-LC
  • USB Ports: 5x USB 2.0 (Type A)
  • GPU: Matrox
  • Memory: 2 GB
  • Video Resolutions: 2x 2560x1600 (DisplayPort), 2x 1920x1200 (Digital, Analog)



Manufacturer Warranty: 02 Years Limited Warranty

Video Output 2x DisplayPort 1.1
Link Connector Dual-LC
USB Ports 5x USB 2.0 (Type A)
Audio Input Line in 3.5 mm, mic in 3.5 mm
Audio Output Line out 3.5 mm, headphone out 3.5 mm
GPU Matrox
Memory 2 GB
Video Resolutions 2x 2560x1600 (DisplayPort),
2x 1920x1200 (Digital, Analog)
Color Space and Chroma Sub-Sampling RGB
8:8:8
USB Support Keyboard, mouse, touch screens and other HIDs
Maximum Distance on Fiber-Optic Cables (Point-to-Point) OM4 multi-mode (50/125 μm) - 400 meters (1312 feet)
OM3 multi-mode (50/125 μm ) - 380 meters (1247 feet)
OM2 multi-mode 50/125 μm - 150 meters (492 feet)
OM1 multi-mode 62.5/125 μm - 70 meters (230 feet)
OS1, OS2 single-mode 9/125 μm - 1 km / (3280 feet)
Additional Features 2x LED Indicators (status and power)
Hardware Included 2x DisplayPort to DVI adapters
Universal, external, 12-volt-DC, 5-amp, power adapter
Power supply cable for various regions (North America / Japan, UK, Continental Europe, Australia)
Accessories (sold separately) Single mode upgrade kit (XTO2-2SMTXF)
• Consists of two transceivers that upgrades the host PCIe interface card and Extio F2208 unit to support extension distances above 400m (1312’) and up to 1 km (3280’).

DisplayPort to Analog (VGA) adapter
• DisplayPort to Analog (VGA) adapter allows you to connect an analog monitor to the DisplayPort output of the Extio F2208 and Extio F2408.
• Available from 3rd party vendors. Contact Matrox for details.
Software Matrox Drivers and PowerDesk (free download)
Supported Operating Systems Microsoft Windows desktop/workstation/server operating systems, and Linux (a detailed list is available here).
