LG KT-T49E 49 USB IR Interactive Digital Touch Board

LG KT-T49E 49" USB IR Interactive Digital Touch Board

Name: LG KT-T49E 49 USB IR Interactive Digital Touch Board
Brand: LG
SKU: KT-T49E
Price: 2243 AUD
Availability: InStock

SKU : KT-T49E

Brand : LG

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

49-inch display with IR touch technology, supporting up to 10 multi-touch points. USB interface, compatible with multiple OS, and operates in temperatures from 0°C to 40°C.

Ask a question about this product

Call Us

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture: LG | Model: KT-T49E

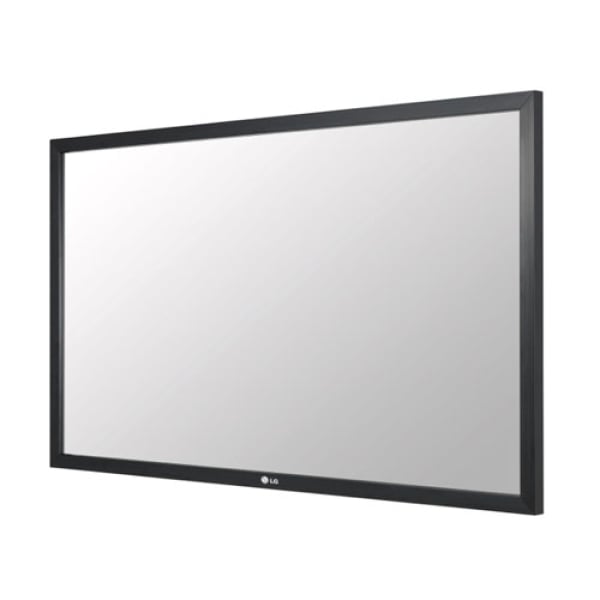

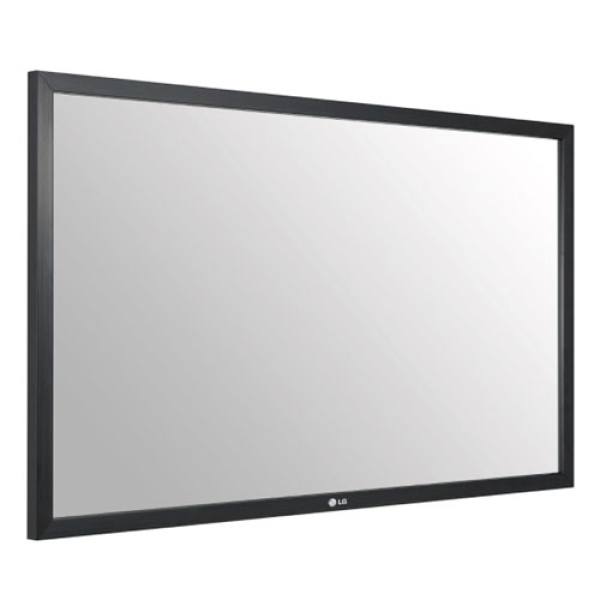

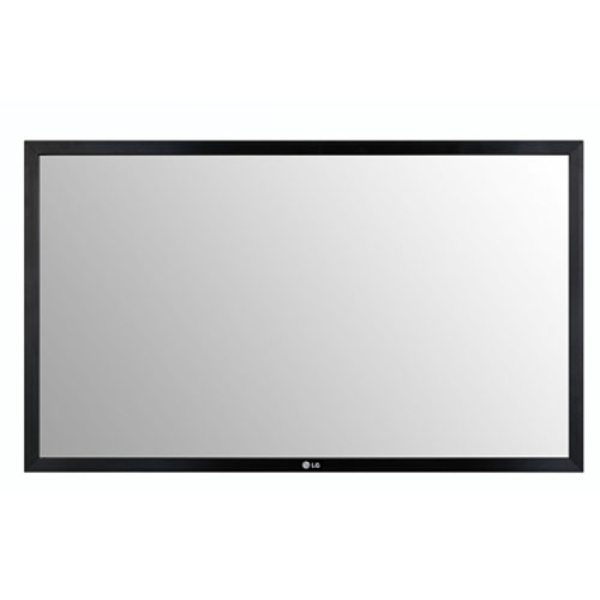

The 49” Touch Overlay is designed to enhance the functionality of compatible screens, adding interactive capabilities. With a 49-inch size and support for up to 10 touch points, it uses infrared (IR) scattering technology to provide precise touch accuracy. The overlay is built for both landscape and portrait orientations and offers a protection glass thickness of 2.8T with anti-glare properties.

Key Features:

Touch Type: IR (Infrared Rays) Scattering
Available Object Size for Touch: Ø6 mm (Single), Ø8 mm (Multi)
Scan Time: 15 ms or less
Accuracy: 2 mm (Over 90% Area)
Interface: USB 2.0
Protection Glass Thickness: 2.8T (Anti-Glare)
Protection Glass Transmission: 85 ± 5%
Operating System Support: Windows 7, 8, 8.1, 10; Android (Kernel Version 3.5 or Over); Linux (Kernel Version 3.5 or Over); Mac OS X (10.9 or Over); Chrome (39 or Above)
Multi Touch Points: Max 10 Points

Panel Specifications:

Screen Size: 49 inches
Compatible Products: 49SH7(P)E, 49SH7DD/E, 49SM5(K)D/E, 49SL5B/E, 49SL5PE, 49SM3C, 49SE3(K)D/DD/E
Orientation: Landscape & Portrait

Physical Specifications:

Bezel Width: 32.7 mm
Overlay Dimension: 1,142.2 x 672.4 x 29.3 mm
Weight (Head): 7.8 kg
Carton Dimensions: 1,250.0 x 792.0 x 162.0 mm
Packed Weight: 12.7 kg

Environmental Conditions:

Operating Temperature: 0°C to 40°C
Operating Humidity: 10% to 80%

Power Specifications:

Power Supply: USB
Max Power Consumption: 1.8 W

Accessories Included:

Overlay Manual (CD)
Install Accessories

Technical Specifications

TOUCH
Touch Type	IR (Infrared Rays) Scattering
Available Object Size for Touch	Φ6 mm↑ (Single), Φ8 mm↑ (Multi)
Scan Time	15 ms ↓
Accuracy	2 mm (Over 90% Area)
Interface	USB 2.0
Protection Glass Thickness	2.8T (Anti-Glare)
Protection Glass Transmission	85 ± 5%
Operating System Support	Windows 7, Windows 8, Windows 8.1, Windows 10, Android (Kernel Version 3.5 Over), Linux (Kernel Version 3.5 Over), Mac OS X (10.9 Over), Chrome (39 or Above)
Multi Touch Points	Max 10 Points
PANEL
Screen Size	49"
Compatible Products	49SH7(P)E, 49SH7DD/E, 49SM5(K)D/E, 49SL5B/E, 49SL5PE, 49SM3C, 49SE3(K)D/DD/E
Orientation	Landscape & Portrait
CONNECTIVITY
Input	USB
PHYSICAL SPECIFICATION
Bezel Width	32.7 mm
Overlay Dimension (W x H x D)	1,142.2 × 672.4 × 29.3 mm
Weight (Head)	7.8 kg
Carton Dimensions (W x H x D)	1,250.0 × 792.0 × 162.0 mm
Packed Weight	12.7 kg
ENVIRONMENT CONDITIONS
Operation Temperature	0°C to 40°C
Operation Humidity	10% to 80%
POWER
Power Supply	USB
Max Power Consumption	1.8 W
ACCESSORY
Basic	Overlay Manual (CD), Install Accessories
