Sku: 4X81B32809
Brand: Lenovo
Category: Drawing Tablets
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
We Accept
Manufacture # Lenovo | Model # 4X81B32809

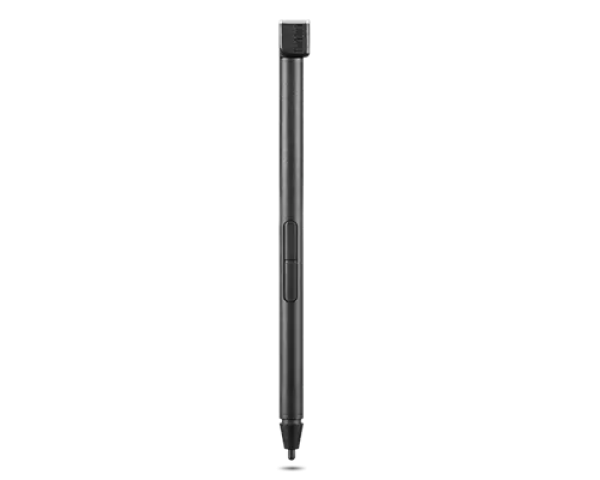

The ThinkBook Yoga integrated smart pen, with up to 4096 levels of pressure sensitivity, provides a natural pencil-and-paper-like experience when you sketch and jot down notes. Users will also enjoy easy access to short-cut functions through two built-in customisable buttons on the base of the pen. This pen can also be conveniently stored and charged in the notebook’s pen slot.
Overview:
Manufacturer Warranty: 01 Year Limited Warranty
| Product Type | Smart Pen |
| Color | Grey |
| Cable Length | 110 [mm] |
| Battery Charging Time | Operating and charging time 15 seconds charging: more than 36 [min.] 300 seconds charging: more than 42 [min.] (Measured in the initial state) |
| Diameter | 5.3 [mm] |
| Input Rating Voltage | 3.3 [V] |
| Oscillating Frequency | 1800 [kHz] ± 5 % |
| Presure Resolution | Up to 4096, depends on touch IC’s F/W setting |
| Power Requirement | EDLC 0.3 [F] (No replacement) 3.3 [V] ± 5 %, Ripple ± 1.5 %, Min 350 [mA] |
| Battery Life | Operating Life 18,000 [h] Operating and charging time 15 seconds charging : more than 36 [min.] 300 seconds charging: more than 42 [min.] (Measured in the initial state) |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 5°C |
| Maximum Relative Humidity (%) | 0.8 |
| Minimum Relative Humidity (%) | 0.3 |
| Weight | 4g |
