LENOVO Rackswitch G8052 (front To 715952F

SKU : 715952F
Brand : Lenovo
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Lenovo 715952F, Port 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+, Jumbo Frame 12288 bytes, Interface 48 x Gigabit LAN RJ-45, 4 x 10Gbit LAN SFP+, 1 x management (mini-USB), 1 x USB, Voltage AC 120/230 V (50/60 Hz), Protocol RIP-1, RIP-2, BGP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, policy-based routing (PBR).   This Lenovo RackSwitch G8052 is a top-of-rack data center switch that delivers outstanding line-rate performance at an attractive price.
Ask a question about this product
$5,588.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Lenovo | Model # 715952F

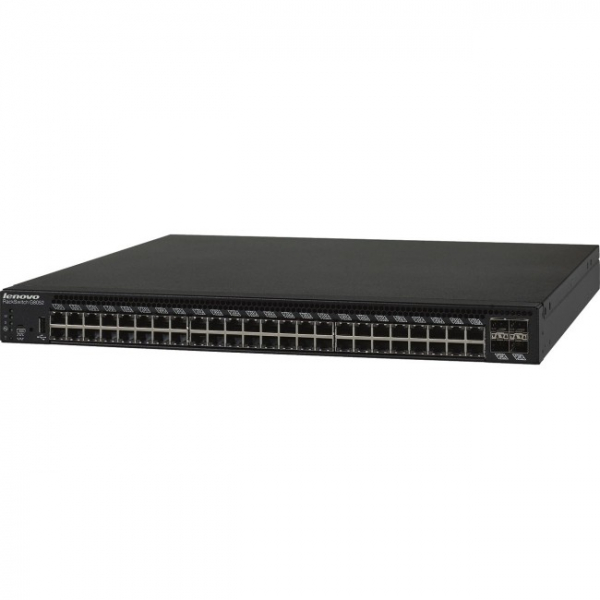

This Lenovo RackSwitch G8052 is a top-of-rack data center switch that delivers outstanding line-rate performance at an attractive price.



Features:

  • It Lenovo 715952F 48 RJ-45 ports and 4 10 Gigabit Ethernet SFP+ ports
  • Includes hot-swap redundant power supplies and fans
  • Minimizes your configuration requirements
  • The G8052 has convenient airflow that matches the server's airflow.



Overview:

  • Device Type: Switch - 48 ports - L3 - managed - stackable
  • Enclosure Type: Back to front airflow rack-mountable 1U
  • Ports: 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
  • Performance: Throughput: 176 Gbps



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Back to front airflow rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
Performance Throughput: 176 Gbps
Capacity MSTP instances: 32 | Virtual interfaces (VLANs): 4094 | Maximum IPv4 with ACL applied: 640 | IPv4 routes (static): 128 | IPv6 routes (static): 128 | Maximum IPv6 with ACL applied: 128 | Active VLANs: 2048 | Priority queues per port: 8
MAC Address Table Size 32000 entries
Jumbo Frame Support 12288 bytes
Max Units In A Stack 8
Routing Protocol RIP-1, RIP-2, BGP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, policy-based routing (PBR)
Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SLP, SCP
Authentication Method RADIUS, TACACS+, LDAP
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1Qbg
Interfaces 48 x Gigabit LAN RJ-45 | 4 x 10Gbit LAN SFP+ | 1 x management (mini-USB) | 1 x USB
Power Device Internal power supply - hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required AC 120/230 V (50/60 Hz)
Rack Mounting Kit Included
Width 17.3 in
Depth 17.5 in
Height 1.7 in
Weight 12.13 lbs
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 10 - 85% (non-condensing)
