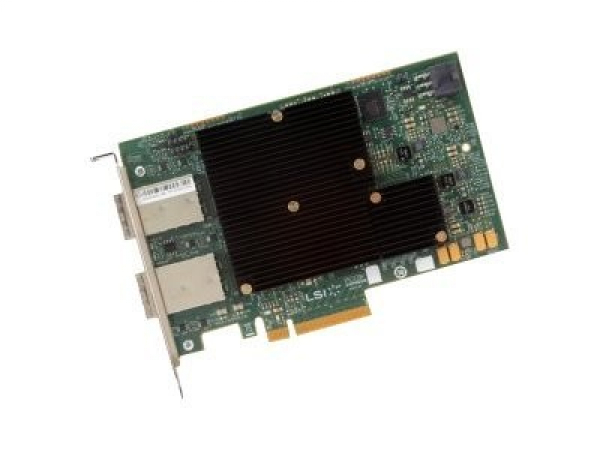

Lenovo N2226 SAS/SATA HBA For IBM System SATA-SAS Controller (00AE916)

Description

Manufacturer # Lenovo | Model # 00AE916

The N2215 SAS/SATA HBA is a 12Gb SAS/SATA host bus adapter for connectivity to internal storage. This eight-port host bus adapter supports direct attachment to SAS and SATA internal HDDs and SSDs. With a low-profile form-factor design, the N2215 SAS/SATA HBA offers two x4 internal mini-SAS HD connectors.

Features:

• SATA-SAS Controller (00AE916) IBM N2226 SAS/SATA 12Gbps Supported in a
• Full-High Slot only Host Bus Adapter (HBA)
• The N2225 and N2226 SAS/SATA HBAs support
• SAS data transfer rates of 3, 6, and 12 Gbps per lane
• SATA transfer rates of 3 and 6 Gbps per lane, and they enable maximum connectivity
• Performance in a low-profile (N2225) or full-height (N2226) form factor.

Overview:

• Device Type: Storage Controller
• Bus Type: PCI Express 3.0 x8
• Channel Quantity: 16
• Interface: SATA 6Gb/s / SAS 12Gb/s
• Data Transfer Rate: 12GBps
• Form Factor: Plug-in Card
• Connector Location: External

Manufacturer Warranty: 01 Year Limited Warranty
