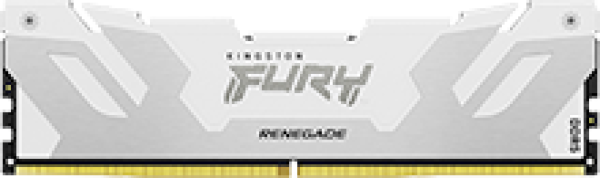

Kingston FURY Renegade 32GB DDR5 7600MT/s CL38 XMP Memory White

Description

Manufacture: Kingston | Model: KF576C38RWK2-32

Kingston FURY KF576C38RWK2-32 is a kit of two 2G x 64-bit (32GB) DDR5-7600 CL38 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-7600 at a low latency timing of 38-46-46 at 1.45V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

Features

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.54” (39.2mm), w/heatsink

Factory Timing Parameters

• Default (JEDEC) : DDR5-4800 CL40-39-39 @1.1V
• XMP Profile #1 : DDR5-7600 CL38-46-46 @1.45V
• XMP Profile #2 : DDR5-7200 CL38-44-44 @1.45V
• XMP Profile #3 : DDR5-6800 CL36-42-42 @1.4V
