Kingston Fury Beast RGB 64GB (32GBx2) DDR5 5600MT/s CL36 DIMM Memory White

Sku: KF556C36BWEAK2-64

Brand: Kingston

Category: DDR5 Ram

$345.40

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Memory Capacity: 64 GB, Form Factor: DIMM, Pins: 288, Rank: Dual-rank, CAS Latency: CL36, 01 Year Limited Warranty.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Kingston | Model: KF556C36BWEAK2-64

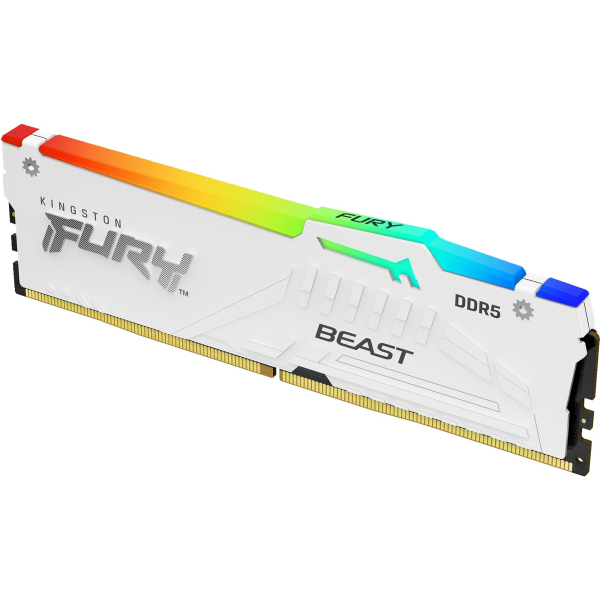

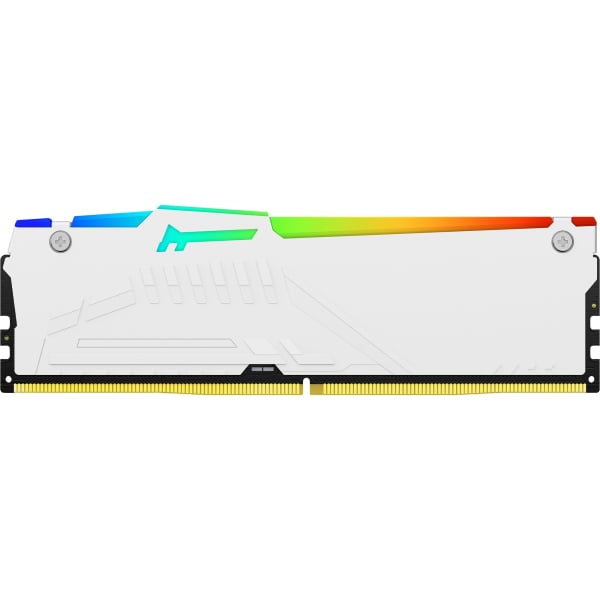

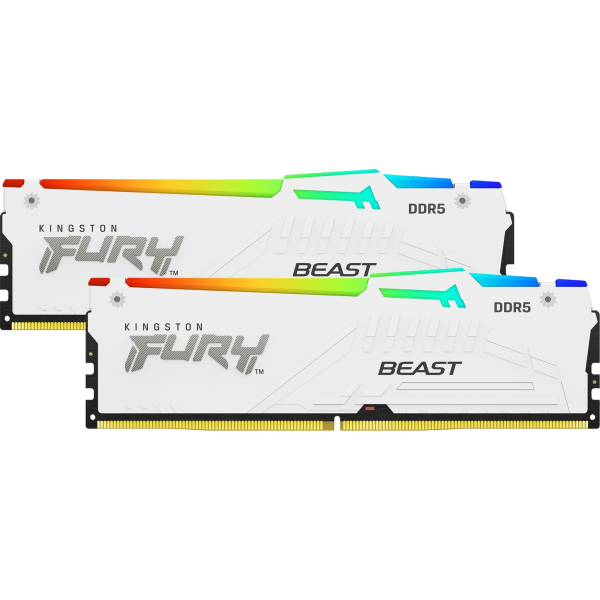

Kingston FURY KF556C36BWEAK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.0 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 36-38-38 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

Features

  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • Height 1.66” (42.23mm), w/heatsink

Factory Timing Parameters

  • Default (JEDEC) : DDR5-4800 CL40-39-39 @1.1V
  • EXPO Profile #0 : DDR5-5600 CL36-38-38 @1.25V
  • EXPO Profile #1 : DDR5-5200 CL40-40-40 @1.25V
  • XMP Profile #1 : DDR5-5600 CL36-38-38 @1.25V
  • XMP Profile #2 : DDR5-5200 CL40-40-40 @1.25V

CL(IDD) 40 cycles
Row Cycle Time (tRCmin) 48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin) 295ns(min.)
Row Active Time (tRASmin) 32ns(min.)
UL Rating 94 V - 0
Operating Temperature 0° C to +85° C
Storage Temperature -55° C to +100° C
