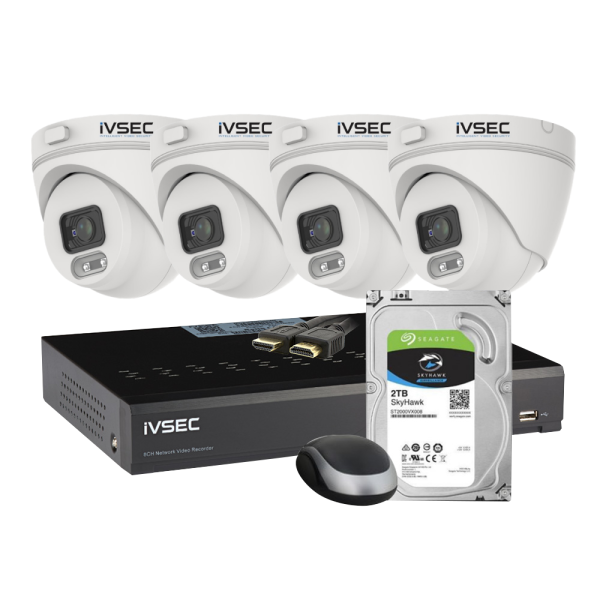

IVSEC LX-Series 4MP 4CH 2TB NVR 4 x POE Security Camera Kit

Sku: LVK-000

Availability: In Stock

Brand: IVSEC

Category: IP Cameras

$702.90

This 4MP turret camera features a 1/2.7" progressive CMOS sensor with a 2560x1440 resolution and a 2.8mm fixed lens offering an 88° field of view. It supports video compression formats H.265, H.264, and MJPEG, with ONVIF compatibility (Profile S/G/T). Designed for outdoor use with an IP66 rating, the camera provides up to 20 meters of night vision and offers audio streaming with an integrated microphone. It supports Power over Ethernet (PoE), edge recording via microSD card, and intelligent video features such as motion detection, line crossing, and perimeter intrusion.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: IVSEC | Model: LVK-000



The 4MP Turret IP Camera is a high-performance surveillance solution designed for outdoor security applications. Featuring a 1/2.7” Progressive CMOS image sensor, it delivers crystal-clear 4MP (2560 x 1440) resolution video, ensuring detailed and high-quality footage. With a 2.8mm fixed lens providing an 88° horizontal field of view, it offers broad coverage for effective monitoring. The camera is equipped with a 20-meter infrared (IR) night vision capability, ensuring visibility in low-light conditions.

Supporting advanced video compression formats such as H.265, H.264, and MJPEG, the camera optimizes bandwidth and storage efficiency. It is ONVIF-compliant (Profile S/G/T) with HTTP API support, allowing seamless integration with third-party security systems. Built for durability, the camera has an IP66-rated weatherproof housing, making it suitable for outdoor use in harsh environments. Operating within a temperature range of -10°C to 55°C, it withstands varying weather conditions with humidity levels between 20% and 80% RH.

The camera is equipped with intelligent video analytics, including smart motion detection, perimeter intrusion detection, line crossing detection, and sound detection. Additional features such as automatic day/night mode, multiple image enhancement settings, and microSD/SDHC edge recording enhance its functionality. With Power over Ethernet (PoE IEEE 802.3af) and DC12V power options, installation is simplified. The built-in microphone allows for audio streaming, adding an extra layer of security. Remote access is supported via a mobile app (QR code) and surveillance client software (CMS/VMS). The camera comes with mounting accessories, an installation template, and a quick user guide for easy setup.



Key Features:



  • 4MP resolution (2560 x 1440) with 1/2.7” Progressive CMOS sensor
  • 2.8mm fixed lens with 88° horizontal field of view
  • 20m infrared (IR) night vision for enhanced low-light performance
  • H.265, H.264, and MJPEG compression for optimized storage and bandwidth usage
  • ONVIF compatibility (Profile S/G/T) with HTTP API support
  • Weatherproof IP66-rated housing for outdoor use
  • Power over Ethernet (PoE IEEE 802.3af) and DC12V power supply
  • Intelligent video analytics: smart motion detection, perimeter intrusion, line crossing, and sound detection
  • Built-in microphone for audio streaming
  • Supports microSD/SDHC edge recording
  • Remote access via mobile app (QR code) and CMS/VMS surveillance client
  • Lightweight and compact design (100 x 100 mm, 0.22 kg)
  • Includes installation accessories: mounting screws, plugs, installation template
  • 12-month parts warranty for reliable performance

Camera Type Turret
Image Sensor 1/2.7” Progressive CMOS
Maximum Video Resolution (Megapixels) 4
Maximum Video Resolution 2560 x 1440
Lens 2.8 mm (H.FOV: 88°)
Lens Type Fixed
Maximum Night IR Distance (M) 20
Video Compression H.265, H.264, MJPEG
ONVIF Depends on firmware version, ONVIF (Profile S/G/T) 21.12 or greater, HTTP API
IP Rating IP66
Operating Environment -10ºC to 55ºC (14ºF-131ºF), Humidity: 20%-80% RH
Dimensions 100 x 100 mm
Weight (Net) 0.22 kg
Accessories IV2422X, IV2477X, IV2433X, IV2444X, IV2455X, IV2457X
Power Supply Power over Ethernet IEEE 802.3af, DC12V
Power Consumption < 4W
Connectors RJ-45, DC Power Input
Outdoor Use Yes
Vandal Resistant No
Frame Rate at Resolution 25
Day/Night Mode Auto
Image Enhancement Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction
Edge Recording microSD/SDHC Card
Multiple Streams (encode format) 2 Streams
Audio Streaming Yes (microphone included)
Protocols TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code)
Intelligent Video (IVS) Smart Motion Detection, Perimeter Intrusion Detection, Line Crossing Detection, Sound Detection
Software Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code)
Power Over Ethernet Yes
Ethernet Ethernet (10/100 Base-T)
In The Box Printed quick user guide, installation template, mounting screws and plugs
Warranty 12 Months Parts Warranty
