IVSEC Dome 25FPS 9MP POE Fisheye IP Camera

Sku: NC541XA

Availability: In Stock

Brand: IVSEC

Category: IP Cameras

$729.30

12MP fisheye camera with 360° FOV, H.265 compression, and 5m night IR distance. Features include audio streaming, edge recording, multiple viewing modes, and vandal resistance. POE and IP66 for outdoor use.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: IVSEC | Model: NC541XA

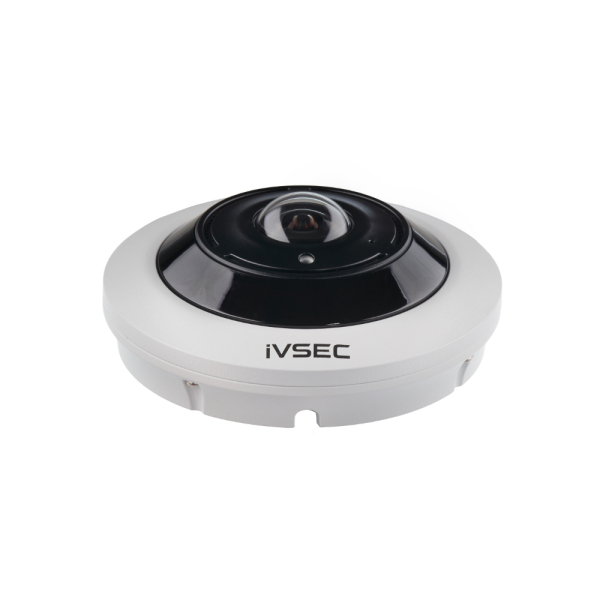

The 12MP Fisheye Camera delivers a full 360° field of view with its ultra-wide-angle 2mm lens, making it ideal for large-area surveillance. Featuring a 1/1.7” Progressive CMOS sensor, it captures crystal-clear 3000 x 3000 resolution footage. Its versatile fisheye dewarping modes allow for multiple viewing angles, including panoramic and multi-PTZ perspectives, ensuring optimal coverage for security applications. The built-in IR illuminators provide up to 5m night vision, while audio support enables two-way communication. Designed for both indoor and outdoor use, this camera boasts an IP66-rated weatherproof housing and vandal-resistant construction for enhanced durability.



Key Features:



  • 12MP ultra-HD resolution with a 360° fisheye lens
  • Multiple viewing modes, including panoramic and PTZ dewarping
  • Smart IR night vision up to 5m for low-light environments
  • ONVIF Profile S & G compliance for seamless integration
  • Built-in microphone and speaker for two-way audio communication
  • Weatherproof IP66-rated and vandal-resistant design
  • Supports microSD card storage for edge recording
  • H.265/H.264 compression for optimized bandwidth usage
  • PoE-powered for easy installation with minimal wiring
  • Comes with mounting accessories and a 3-year warranty

Camera Type Fisheye
Image Sensor 1/1.7″ Progressive CMOS
Maximum Video Resolution (Megapixels) 12
Maximum Video Resolution 3000 x 3000
Lens 2mm (H.FOV 360°)
Lens Type Fixed
Maximum Night IR Distance (M) 5
Image Clarity 3
Connectors RJ-45, Analog Video Out, Audio In, Audio Out, Alarm in or out *4
Video Compression H.265, H.265
ONVIF ONVIF (Profile S, Profile G)
Operating Environment -30?+55°C/less than ≤ 95% RH
Dimensions Ø120 x 55mm
Weight (Net) 0.4 kg
Power Supply Power over Ethernet IEEE 802.3af, DC12V
Power Consumption <7W
Connectors (web) RJ-45, Analog Video Out, Audio In, Audio Out, Alarm in or out *4
Outdoor Use Yes
IP Rating IP66
Vandal Resistant Yes
Frame Rate at Resolution 25
Day/Night Mode Auto
Image Enhancement Fisheye ceiling/desktop/wall/tilt, VR, cylinder, Panorama 180, Panorama 360, 4PTZ, Fisheye+3PTZ, Fisheye+8PTZ, 3 Panorama 360 PTZ, 8 Panorama 360 PTZ, Rotate, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue
Edge Recording Slot microSD/SDHC Card Yes
Audio Streaming Yes (microphone and speaker included)
Protocols TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, P2P (QR code)
Software Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app
Power Over Ethernet Yes
Ethernet Ethernet (10/100 Base-T)
UPNP Yes
In The Box Free Software available from FAQ, Printed quick user guide, Installation template, Mounting screws and plugs
Warranty 3 Year Warranty
