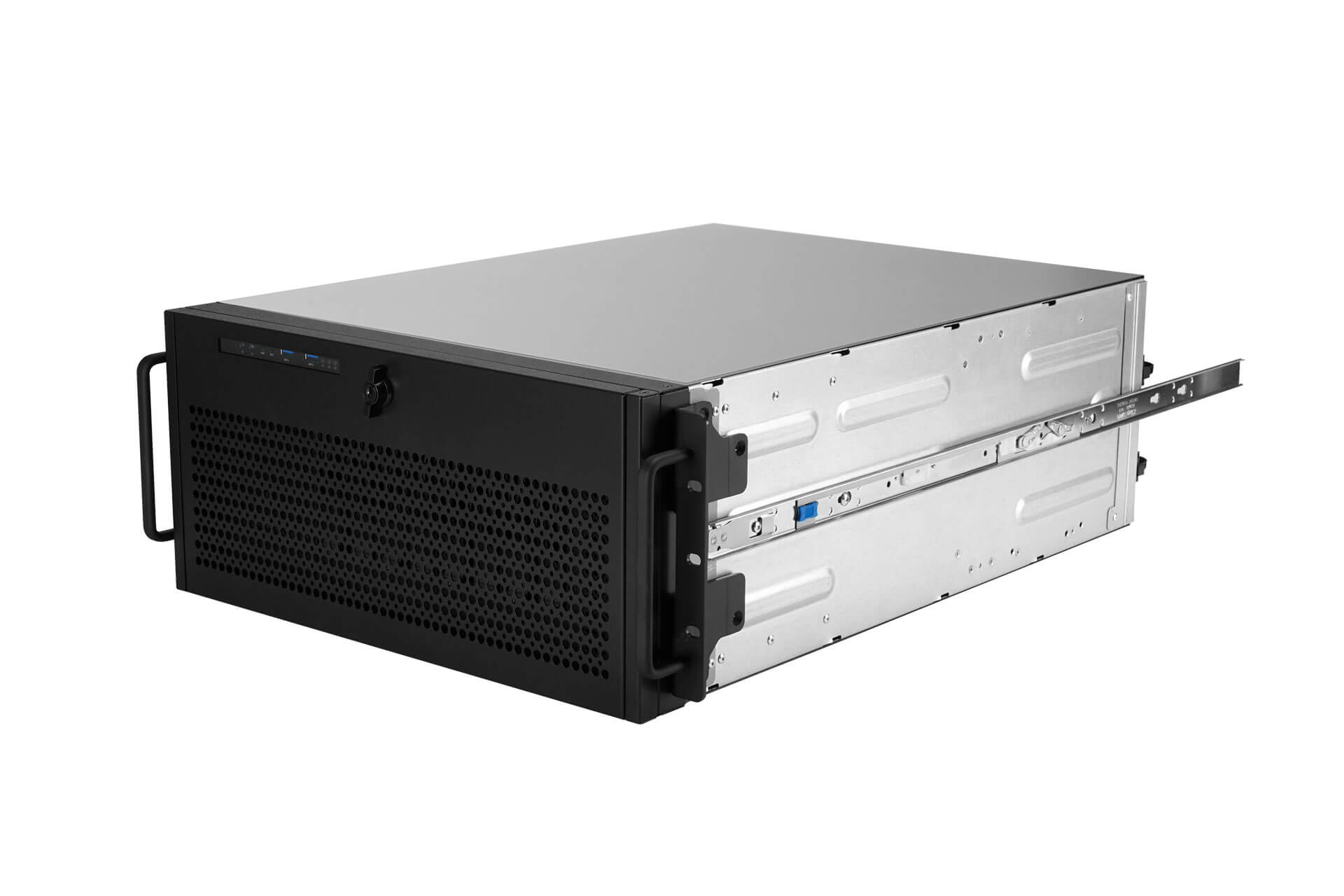

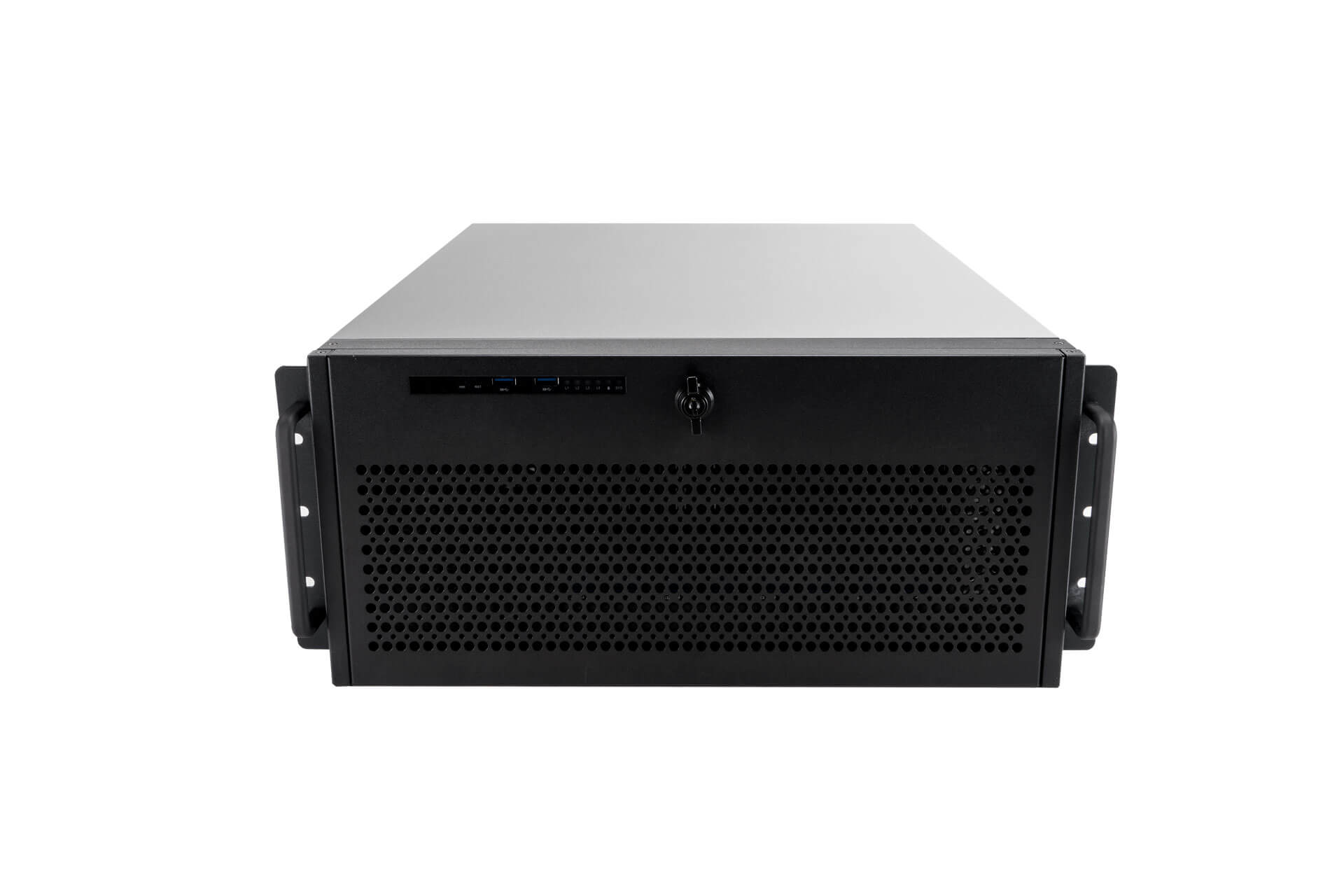

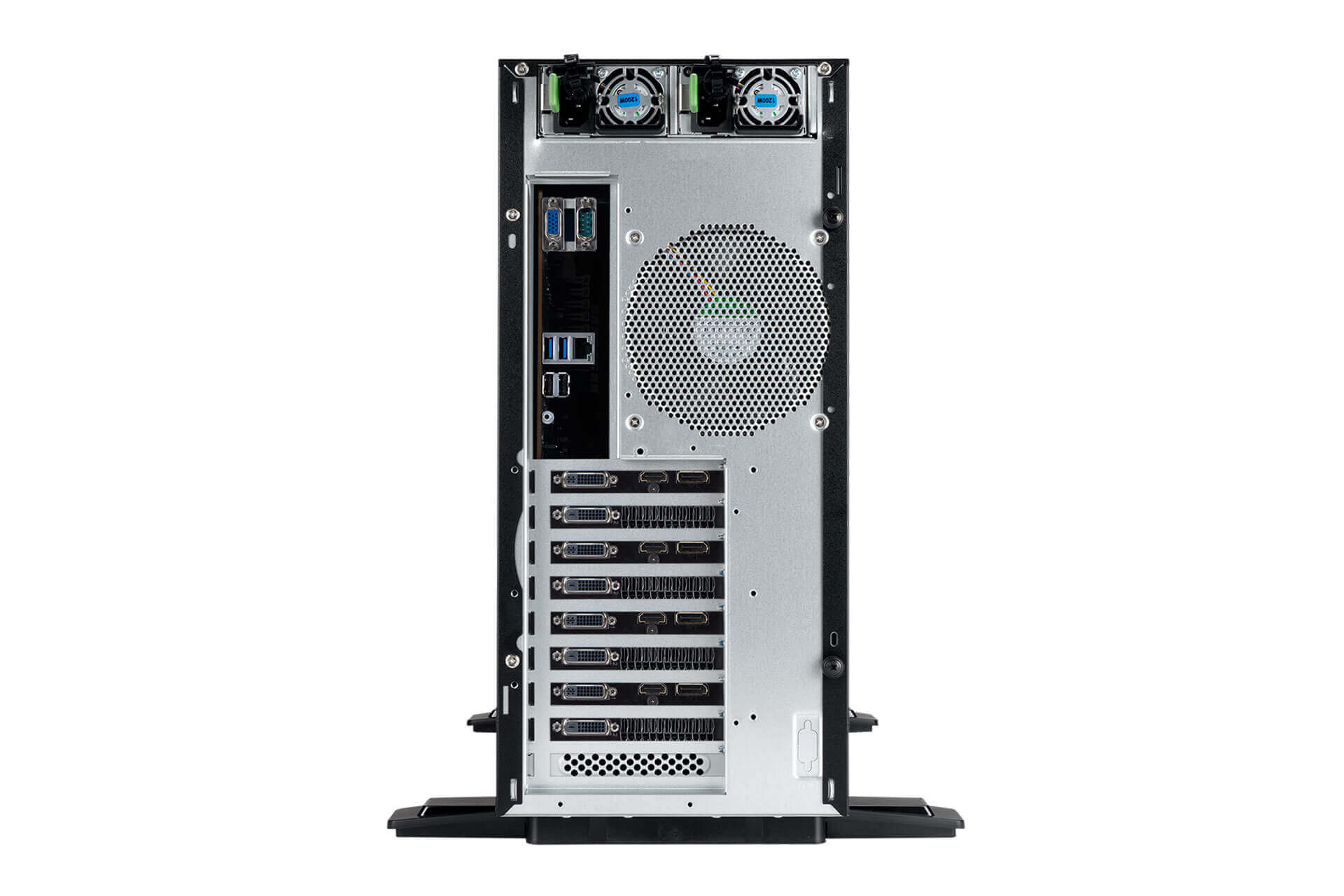

InWin PLG Tower Chassis 800W Redundant Power Supply Unit Black

The IW-PLG workstation by InWin is tailored for professionals demanding maximum compute performance, storage capacity, and thermal efficiency. Whether for AI development, scientific research, data analytics, or VFX rendering, the IW-PLG provides exceptional flexibility and expansion.

This GPU-optimized chassis supports up to 4 double-width, full-length GPUs across 9 PCIe expansion slots, offering unmatched graphics acceleration. With support for both Intel® Xeon Scalable and AMD EPYC processors on ATX, CEB, or EEB motherboards, the IW-PLG ensures wide platform compatibility.

Storage is extensive: up to 14 x 2.5" SSDs, including 8 pre-installed hot-swap bays, plus options for NVMe, SATA, and SAS via Mini-SAS HD and OCuLink backplanes. A Platinum-rated CRPS PSU module (up to 2000W) ensures clean and efficient power delivery for high-demand configurations.

A thoughtfully engineered airflow system includes 3 x 92mm front intake fans, 1 x 120mm rear exhaust, and an optional 80mm GPU-targeted fan kit, providing powerful and focused thermal control.

With tool-less rail support, a screwless GPU card holder, and built-in cable management, the IW-PLG is rack-ready and easy to deploy.

Key Features

Compute & GPU Support

• Compatible with Intel Xeon Scalable and AMD EPYC platforms

• 9 PCIe expansion slots for up to 4x full-height, full-length, double-width GPUs

• Adjustable screwless GPU card holder for secure installation

Storage Capabilities

• 14 x 2.5” SSD support (internal + hot-swap trays)

• Mini-SAS HD & OCuLink 12Gbps backplanes (2 pre-installed, max 3)

• NVMe / SATA / SAS support

• 1 x 5.25” external drive bay for ODD or LCD module

• Optional internal 3.5” HDD support

Power Supply

• 80 Plus Platinum Certified CRPS PSU support

• Up to 2000W power (800W, 1200W, 1600W options also supported)

• Fully equipped with essential power connectors:

  • 24-pin motherboard

  • Dual 8-pin CPU

  • 6x 6+2-pin GPU

  • 4-pin HDD backplane

  • PMBus support

Thermal Management

• 3 × 92mm front intake fans (pre-installed)

• 1 × 120mm rear exhaust fan (pre-installed)

• Optional 80mm GPU rear fan kit (8300 RPM)

• Supports efficient front-to-rear airflow

Ease of Installation

• Tool-less 28" ball-bearing slide rail support for rack installation

• Lockable front and side panels

• Kensington lock slot and padlock loop
