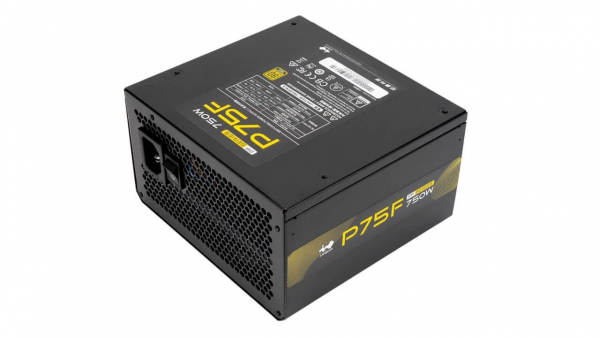

InWin 750W ATX 12V 80 PLUS Gold Non-Modular PSU P75F-750W

Description

Manufacture: InWin | Model: P75F-750W

This high-performance 750W power supply unit (PSU) delivers reliable power with an active power factor correction (PFC) of 0.95 and an efficiency rating of 90%. Designed for PC applications, it adheres to the ATX 2.52 standard and is 80 PLUS Gold certified, ensuring energy-efficient performance. The PSU supports a wide AC input voltage range of 100-240V with a frequency of 50-60Hz and input current of 8-10A. It features a robust power distribution, delivering 750W on the +12V rail, 120W on +3.3V and +5V rails, and multiple protections against overcurrent, overvoltage, overheating, and short circuits. The PSU includes a 12cm cooling fan with sleeve-bearing technology, operating at a quiet noise level of 25dB. With non-modular cabling, it provides essential connectivity, including a 20+4 pin ATX motherboard connector, 6 SATA power connectors, 3 Molex connectors, and 4 PCIe (6+2 pin) connectors. The PSU is housed in a black chassis, measuring 150mm in width, 140mm in depth, and 86mm in height, with an operational temperature range of 0-40°C.

Key Features:

• 750W total power output with 90% efficiency
• Active Power Factor Correction (PFC) with a power factor of 0.95
• 80 PLUS Gold certified for energy-efficient operation
• Multiple power protections: Overcurrent, Overpower, Overvoltage, Overheating, Short Circuit, Undervoltage
• ATX 2.52 standard, suitable for high-performance PCs
• Quiet 12cm cooling fan with sleeve-bearing technology (25dB noise level)
• Non-modular cabling with essential connectivity options
• Supports 6 SATA power connectors, 3 Molex connectors, and 4 PCIe (6+2 pin) connectors
• Compact dimensions: 150mm (W) x 140mm (D) x 86mm (H)
• Mean Time Between Failures (MTBF) of 100,000 hours
