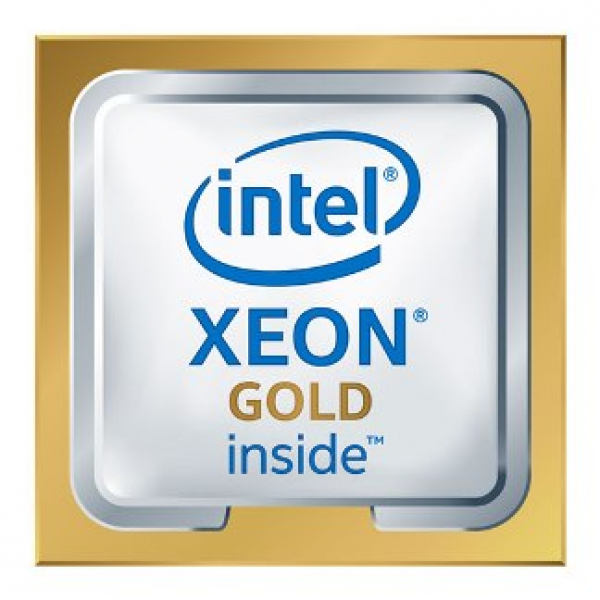

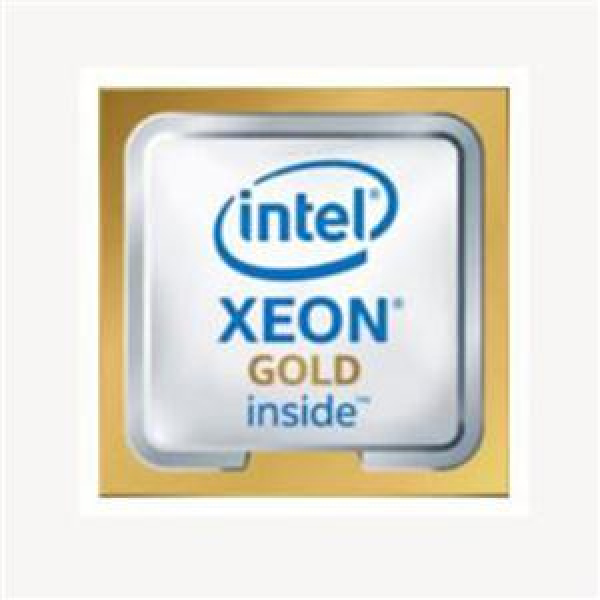

INTEL Xeon Gold 5120 2.20ghz 19.25mb Cache Turbo BX806735120 INTEL Xeon Gold 5120 2.20ghz 19.25mb Cache Turbo BX806735120 INTEL Xeon Gold 5120 2.20ghz 19.25mb Cache Turbo BX806735120

INTEL Xeon Gold 5120 2.20ghz 19.25mb Cache Turbo BX806735120

SKU : BX806735120
Brand : Intel
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered
Xeon Gold 5120 BX806735120, Thermal Design Power 105W, Clock Speed 2.20 GHz, Socket 3647, Overclocking Speed 3.20 GHz.   The Intel Xeon Gold Processor delivers significant improvement in performance, advanced reliability and hardware-enhanced security. It is optimized for demanding mainstream.
Ask a question about this product
$2,753.00
Buy Now

Estimated Shipping

Delivery when available

Find

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Intel | Model # BX806735120



The Intel Xeon Gold Processor delivers significant improvement in performance, advanced reliability and hardware-enhanced security. It is optimized for demanding mainstream data center, multi-cloud compute and network workloads.



Overview:

  • Product Family: Xeon Gold
  • L2 Cache: 14 MB
  • L3 Cache: 19.25 MB
  • Clock Speed: 2.20 GHz
  • Processor Socket: Socket 3647
  • Product Model: 5120
  • Process Technology: 14 nm





Manufacturer Warranty: 01 Years Limited Warranty

Technical Specifications

General

Series/Family
Intel Xeon Scalable Processors
Supported Socket The socket is the component that provides the mechanical and electrical connections between the processor and motherboard.
LGA3647
Total Cores Cores is a hardware term that describes the number of independent central processing units in a single computing component (die or chip).
14
No. of Performance-cores
N/A
No. of Efficient-cores
N/A
Total Threads Threads are the virtual components, which divides the physical core of a CPU into virtual multiple cores.
28
Max Turbo/Boost Clock Max Turbo/Boost Clock Frequency is the maximum single-core frequency at which the processor is capable of operating.
3.20GHz
Base Clock
2.20GHz
Cache CPU Cache is an area of fast memory located on the processor. Cache refers to the architecture that allows all cores to dynamically share access to the last level cache.
L3: 19.25MB
Default TDP
105W
Lithography Lithography refers to the semiconductor technology used to manufacture an integrated circuit, and is reported in nanometer (nm), indicative of the size of features built on the semiconductor.
14nm
Segment
Server

Connectivity

PCI Express Version Peripheral Component Interconnect Express (or PCIe) is a high-speed serial computer expansion bus standard for attaching hardware devices to a computer. The different PCI Express versions support different data rates.
3.0
Memory Types
DDR4 up to 2400MHz

Additional Info

Integrated Graphics Integrated Graphics indicates graphics processing circuitry integrated into the processor, providing the graphics, compute, media, and display capabilities.
No
Supported Chipset
C621, C622
Code Name
Skylake
