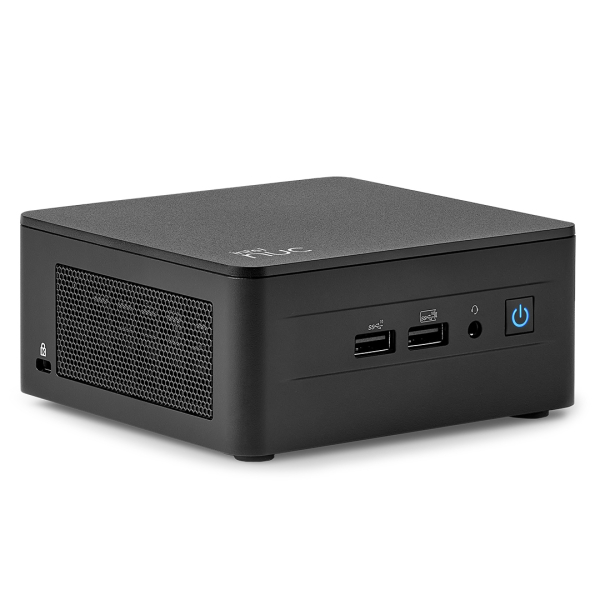

Intel NUC i5-1340P 13th Gen 4.60 GHz Mini PC Wi-Fi 6E Barebone Kit

SKU : RNUC13ANHI50000
Brand : Intel
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Form Factor: M.2 and 2.5" Drive, # of Internal Drives Supported: 3, Total Cores: 12, Total Threads: 16, Lithography: Intel 7, Max Turbo Frequency: 4.60 GHz, Max Memory Size: 64 GB, No of Displays Supported: 4, Warranty: 03 Years, RNUC13ANHI50000.
Ask a question about this product
$742.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Intel | Model # RNUC13ANHI50000



Intel NUC 13 Pro Mini PCs, Kits, and Boards offer the perfect combination of performance, connectivity, and graphics for a wide range of businesses. 13th Gen Intel Core processors deliver stunning speed in a 4x4 form factor, and the optional Intel vPro Enterprise provides comprehensive security, enterprise-grade stability, and hardware-based remote management.



Features:

  • Drive business growth with the perfect combination of size, performance, and reliability. Intel NUC 13 Pro is ready to work.
  • Enjoy productivity every day with 13th Gen Intel Core processors delivering unmatched speed and intelligence, enabling impressive productivity, content creation, and gaming experiences with the best connectivity.
  • Built with Intel’s performance hybrid architecture, a combination of powerful Performance-cores (P-cores) for demanding tasks and smaller Efficient-cores (E-cores) for background tasks.
  • Intel® NUC 13 Pro Mini PCs are ready to use out of the box and available with Windows 11 Pro.
  • Intel® NUC 13 Pro Kits are easy to customise with OS, memory, and storage to meet a wide range of business and home office needs.
  • Enjoy business-class performance with 13th Gen Intel® Core™ processors.
  • Wired and wireless connections are lightning fast with an Intel® Ethernet 2.5 Gbps port and new Intel® Wi-Fi 6E (Gig+).



Overview:

  • Form Factor: M.2 and 2.5" Drive
  • # of Internal Drives Supported: 3
  • Total Cores: 12
  • Total Threads: 16
  • Lithography: Intel 7
  • Max Turbo Frequency: 4.60 GHz
  • Max Memory Size: 64 GB
  • No  of Displays Supported: 4



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Product Collection Intel NUC Kit with 13th Generation Intel Core Processors
Code Name Products formerly Arena Canyon
Marketing Status Launched
Launch Date Q1'23
Expected Discontinuance 1H'26
Supported Operating Systems (not included) Windows 11 Home* | Windows 11 Pro* | Windows 10 IoT Enterprise* | Red Hat Linux* | Ubuntu*
Board Number NUC13ANBi5
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 and 2.5" Drive
# of Internal Drives Supported 3
DC Input Voltage Supported 12-20 VDC
Processor Included Intel Core i5-1340P Processor (12M Cache | up to 4.60 GHz)
Total Cores 12
Total Threads 16
Lithography Intel 7
Max Turbo Frequency 4.60 GHz
Included Items VESA bracket
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-3200 1.2V SODIMMs
Max # of Memory Channels 2
Max # of DIMMs 2
ECC Memory Supported No
Integrated Graphics Yes
Graphics Output 2x HDMI 2.1 TMDS Compatible | 2x DP 1.4a via Type C
# of Displays Supported 4
PCI Express Revision Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
PCI Express Configurations PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1 Gen 3: M.2 22x42 (key B) PCIe x1: M.2 22x30 (key E)
M.2 Card Slot (wireless) 22x30 (E)
M.2 Card Slot (storage) 22x80 NVMe (M); 22x42 SATA (B)
# of USB Ports 4

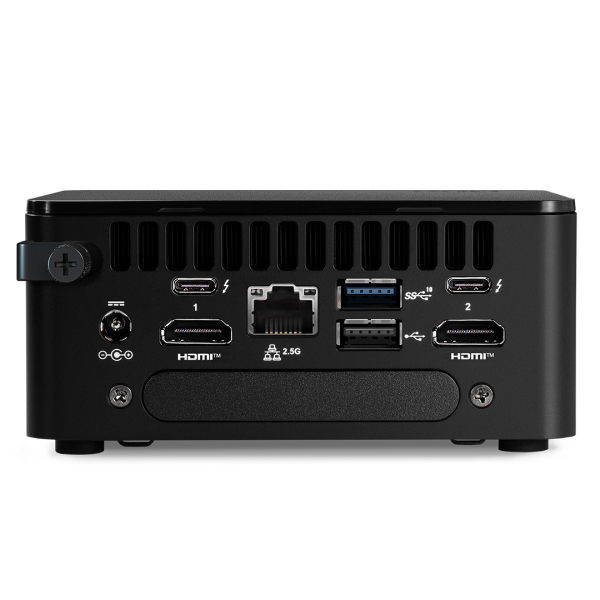

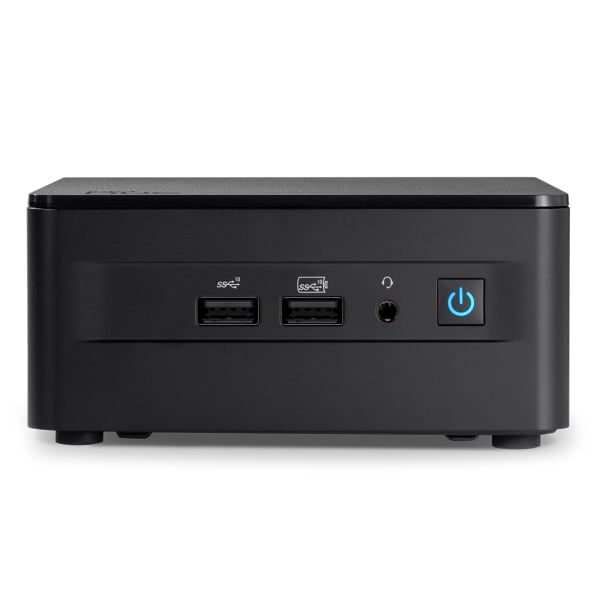

USB Configuration Front: 2x USB 3.2 Rear: 2x USB 4 (type C) | 1x USB 3.2 | 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22x42 (pins) | 2x USB 2.0 (headers)
Total # of SATA Ports 1
Serial Port via Internal Header No
Audio (back channel + front channel) Front panel: 3.5mm headphone/mic jack
Integrated LAN Intel Ethernet Controller i226-V
Integrated Wireless Intel Wi-Fi 6E AX211(Gig+)
Integrated Bluetooth Yes
Additional Headers Front_panel (PWR | RST | 5V | 5Vsby | 3.3Vsby); Internal 2x2 power connector
# of Thunderbolt Ports 2x Thunderbolt 4
Chassis Dimensions 117 x 112 x 54 [mm] (LxWxH)
Intel Optane Memory Supported No
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel ME Firmware Version 16.1
Intel HD Audio Technology Yes
Intel Virtualization Technology (VT-x) Yes
Intel Platform Trust Technology (Intel PTT) Yes
Intel AES New Instructions Yes
