Sku: RNUC13ANHI70000
Brand: Intel
Category: Mini PC
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
Board Form Factor: UCFF (4" x 4"), Socket: Soldered-down BGA, Internal Drive Form Factor: M.2 and 2.5in Drive, Total Cores: 12, Memory Size: 64GB, 03 Years Limited Warranty, RNUC13ANHI70000.
We Accept
Manufacture # Intel | Model # RNUC13ANHI70000

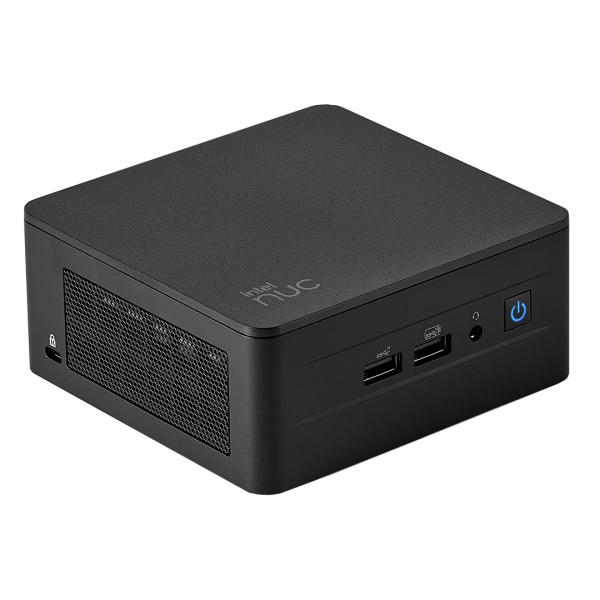

The Intel NUC 13 Core i7 Pro Mini PC Kit features a 13th Gen Intel Core i7-1360P processor with Intel Iris Xe graphics, 2 x SODIMM slots with 1 x M.2 NVMe PCIe 4.0 SSD slot, 2.5in SSD bay, Intel i226 RJ45 Ethernet, Wi-Fi 6E AX211, and integrated Bluetooth 5.3.
Features:
Overview:
Manufacturer Warranty: 03 Years Limited Warranty
| Board Number | NUC13ANBi7 |
| Board Form Factor | UCFF (4" x 4") |
| Socket | Soldered-down BGA |
| Internal Drive Form Factor | M.2 and 2.5in Drive |
| Internal Drives Supported | 3 |
| DC Input Voltage Supported | 12-20 VDC |
| Processor Included | Intel Core i7-1360P Processor (18M Cache, up to 5.00 GHz) |
| Total Cores | 12 |
| Total Threads | 16 |
| Lithography Intel | 7 |
| Max Turbo Frequency | 5.00 GHz |
| Included Storage | None |
| Included Memory | None |
| Max Memory Size (dependent on memory type) | 64 GB |
| Memory Types | DDR4-3200 1.2V SODIMMs |
| Max Number of Memory Channels | 2 |
| Max Number of DIMMs | 2 |
| ECC Memory Supported | No |
| Integrated Graphics | Yes |
| Graphics Output | 2 x HDMI 2.1 TMDS Compatible, 2 x DP 1.4a via Type C |
| Displays Supported | 4 |
| PCI Express Revision | Gen 4 (m.2 22x80 slot); Gen 3 (otherwise) |
| PCI Express Configurations | PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x 1 Gen 3: M.2 22x42 (key B) PCIe x1: M.2 22x30 (key E) |
| M.2 Card Slot (wireless) | 22x30 (E) |
| M.2 Card Slot (storage) | 22x80 NVMe (M); 22x42 SATA (B) |
| USB Ports | 4 |

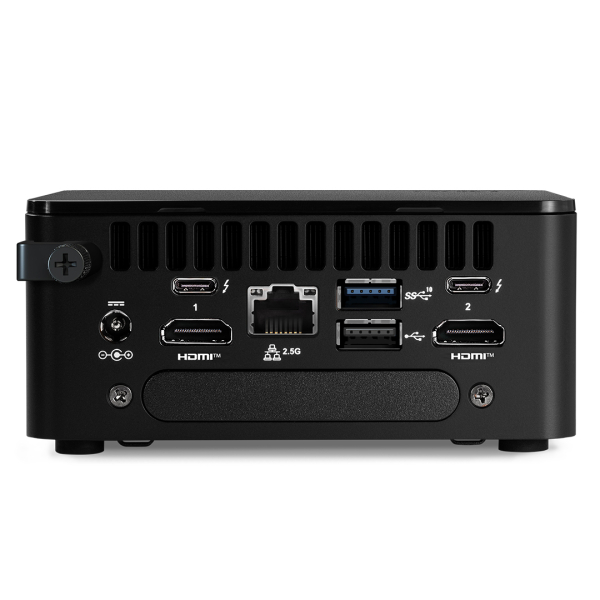

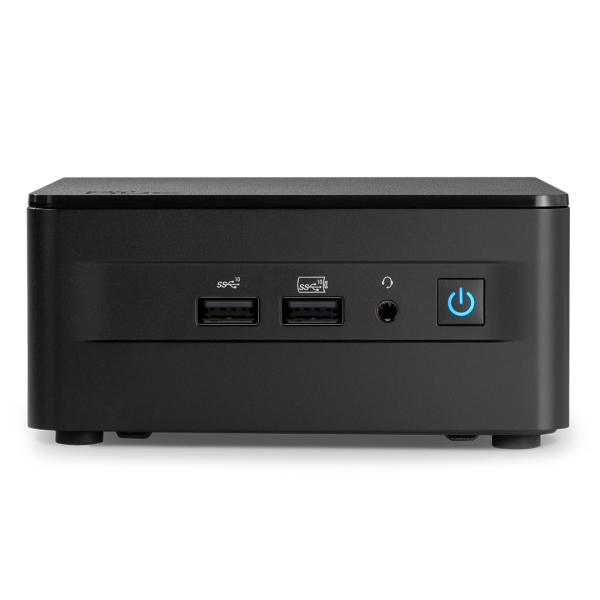

| USB Configuration | Front: 2 x USB 3.2 Rear: 2 x USB 4 (type C), 1 x USB 3.2, 1 x USB 2.0 Internal: 1 x USB 3.2 on m.2 22x42 (pins), 2 x USB 2.0 (headers) |
| Total of SATA Ports | 1 |
| Serial Port via Internal Header | No |
| Audio (back channel + front channel) | Front panel: 3.5mm headphone/mic jack |
| Integrated LAN | Intel Ethernet Controller i226-V |
| Integrated Wireless | Intel Wi-Fi 6E AX211(Gig+) |
| Integrated Bluetooth | Yes |
| Additional Headers | Front panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
| Thunderbolt Ports | 2 x Thunderbolt 4 |
| Intel Optane Memory Supported | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel ME Firmware Version | 16.1 |
| Intel HD Audio Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Platform Trust Technology (Intel PTT) | Yes |
| Intel AES New Instructions | Yes |
