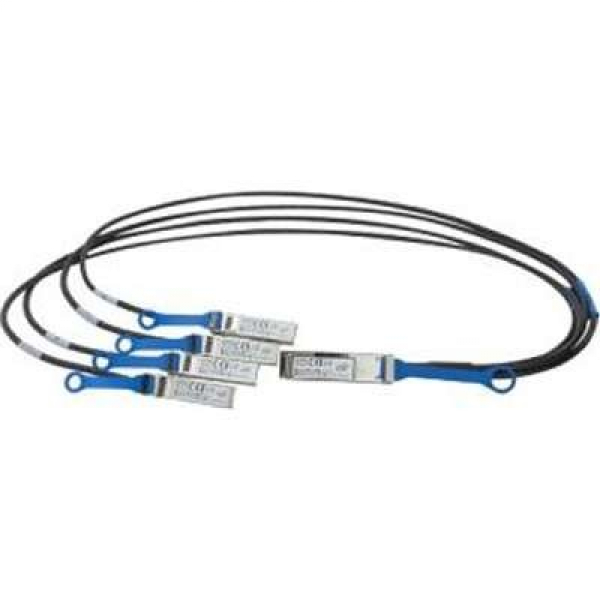

INTEL Ethernet Qsfp + Breakout Cable 3 X4DACBL3

Description

Manufacture # INTEL | Model # X4DACBL3

The QSFP-4SFP10G-DAC-P3M QSFP+ to 4xSFP+ direct attach copper breakout cable assembly (also known as DAC) is suitable for very short distances and offers a highly cost-effective way to establish a interconnect between the devices using QSFP+ ports and SFP+ ports. The QSFP+ to 4xSFP+ DAC breakout cable is designed for 40Gb/s high-speed interconnecting networking applications such as high-performance computing (HPC), enterprise networking including top-of-rack switching and network storage markets. It fully complies with QSFP+ Multi-Source Agreement (MSA) standards SFF-8436 and SFP+ MSA SFF-8431. This passive DAC cable has no signal amplification built into the cable assembly.

Features:

• Economically Links up a QSFP port with an upstream 10GbE-SFP+ Switch
• Compliant with IEEE 802.3ba 40GBASE-CR4 standard
• Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate)
• Bridge the gap between your 10G and 40G capable switches/host adapters
• High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector
• Reduced power budget and lower port cost compared to transceiver and AOC
• RoHS Compliant and Lead-Free.

Overview:

• Brand: INTEL
• Model: X4DACBL3
• Connector Type: QSFP+ to 4 SFP+
• Minimum Bend Radius: 21mm

Manufacturer Warranty: 01 Years Limited Warranty
