Manufacture # HP | Model # JL072A

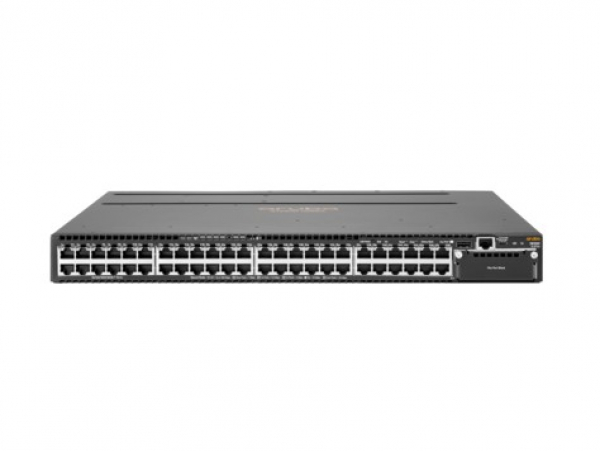

Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. This JL072A has 48 x 10/100/1000 ports together with 1 x open module slots and a stacking module slot. It comes with a replaceable fan tray. It supports one or two power supplies; power supplies are ordered separately. Available modules are: 4 x SFP+; 1 x 40GbE QSFP+; 2 x 40GbE QSFP+; 4 port stacking module.
Features:
Overview:
Manufacturer Warranty: Lifetime Warranty
| Brand | HP |
| Model | JL072A |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 |
| Performance | Routing/switching capacity 160 Gbps ? Switching fabric bandwidth 169 Gbps ? Latency (1 Gbps) 2.8 ?s ? Latency (10 Gbps) 1.8 ?s ? Throughput (64-byte packet size) up to 95.2 Mpps ? Latency (40 Gbps) 1.5 ?s |
| Capacity | IPv4 routing table entries 10000 ? IPv6 routing table entries 5000 |
| MAC Address Table Size | 64K entries |
| Routing Protocol | OSPF, BGP-4, RIP-1, RIP-2, BGP, OSPFv2, OSPFv3 |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, SSH-2, XRMON |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1AX |
| Dimensions (WxDxH) | 44.25 cm x 43.13 cm x 4.39 cm |
| Weight | 5.99 kg |
