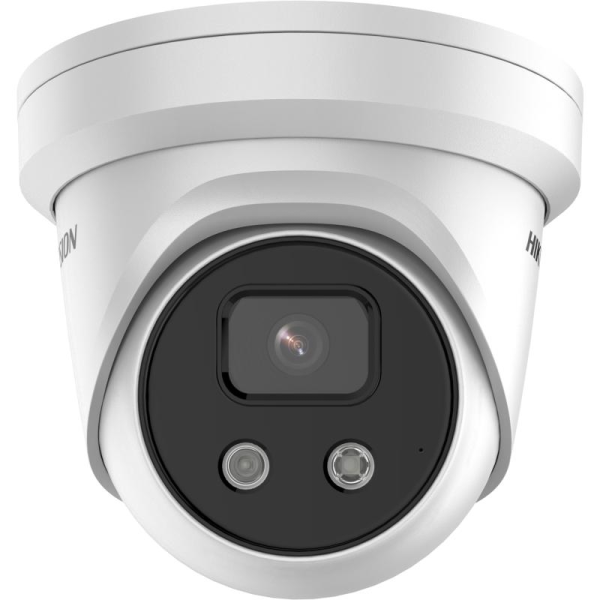

Hikvision DS-2CD2366G2-IU IP Camera 6MP Turret Network 4mm Camera

SKU : DS-2CD2366G2-IU-4
Brand : Hikvision
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Discover a high-performance 1/2.4 Progressive Scan CMOS security camera with 3200×1800 resolution, H.265+/H.264+ compression, and infrared night vision up to 30m. Features include low-light sensitivity (0.003 Lux @ F1.6, 0 Lux with IR), fixed focal lenses (2.8mm, 4mm, 6mm), smart IR technology, and advanced security encryption (TLS 1.3, HTTPS, IP filtering). Ideal for professional surveillance with triple streaming, region of interest (ROI), and scalable video coding (SVC).
Ask a question about this product
$270.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture: Hikvision | Model: DS-2CD2366G2-IU-4

The camera with a 1/2.4" Progressive Scan CMOS image sensor is designed to deliver high-definition video and exceptional clarity. With a maximum resolution of 3200 × 1800, it captures crisp and detailed footage, ideal for surveillance and monitoring purposes. The camera performs well in low-light environments, with a minimum illumination of 0.003 Lux in color and 0 Lux in black and white mode with infrared (IR) support. Its wide range of shutter speeds from 1/3 s to 1/100,000 s ensures optimal performance in varying lighting conditions, while the IR cut filter enables seamless day and night functionality.



Key Features:



  • 1/2.4" Progressive Scan CMOS Image Sensor for High-Quality Video
  • Maximum Resolution of 3200 × 1800 for Clear and Detailed Footage
  • Low Light Sensitivity: 0.003 Lux in Color and 0 Lux with IR
  • Wide Shutter Speed Range from 1/3 s to 1/100,000 s for Flexible Lighting Control
  • IR Cut Filter for Day & Night Operation
  • Fixed Lenses with Options for 2.8 mm, 4 mm, and 6 mm
  • IR Illuminator with Range Up to 30 m and Smart Supplement Light
  • Video Compression Support: H.265+/H.265/H.264+/H.264
  • High-Quality Audio Compression for Clear Mono Sound

Technical Specifications

Image Sensor 1/2.4" Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lenses Lens Type: Fixed lens, 2.8, 4, and 6 mm optional
Focal Length & FOV:
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
Aperture F1.6
Lens Mount M12
Illuminator Supplement Light Type: IR
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Video Main Stream:
50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream:
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 (*Third stream is supported under certain settings)
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region(s) for main stream and sub-stream
Target Cropping Yes
Audio Audio Type: Mono sound
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: Yes
