Gigabyte GP-AE850PM PG5 850W Power Supply Black

Description

Manufacture: Gigabyte | Model: GP-AE850PM PG5

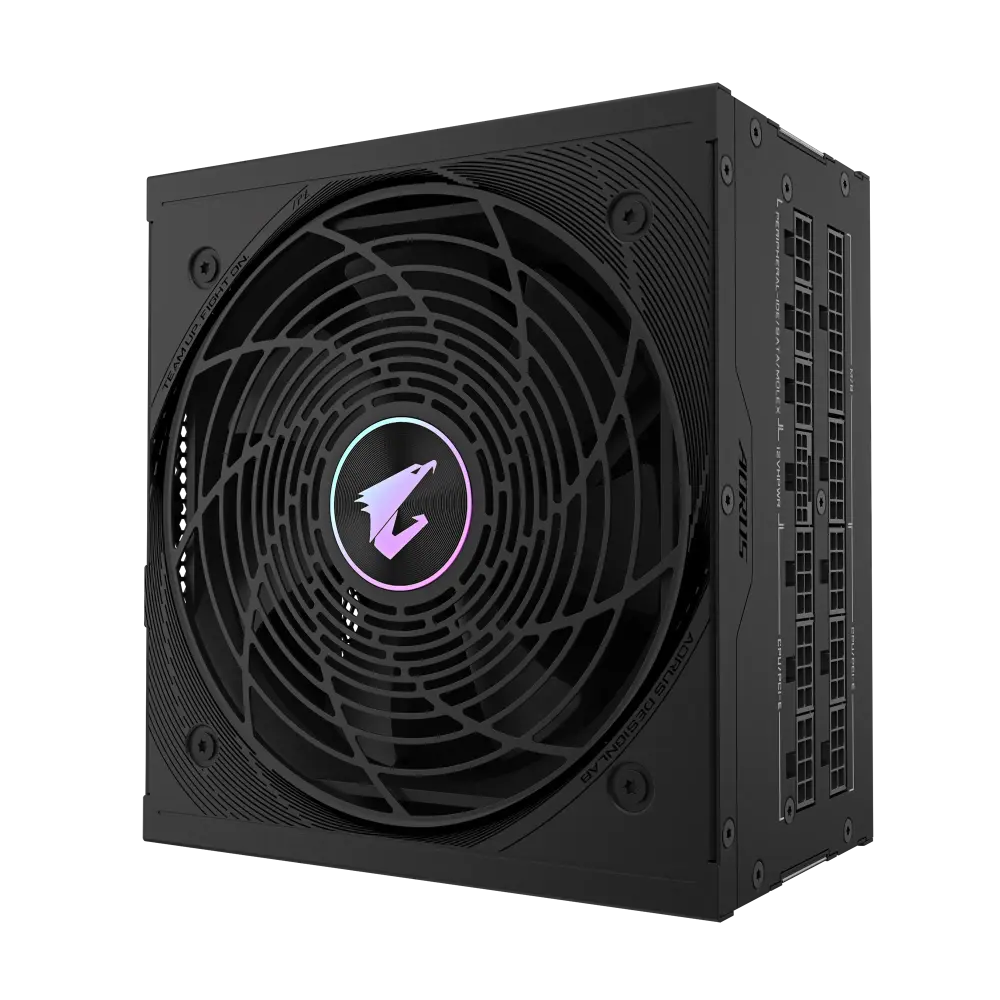

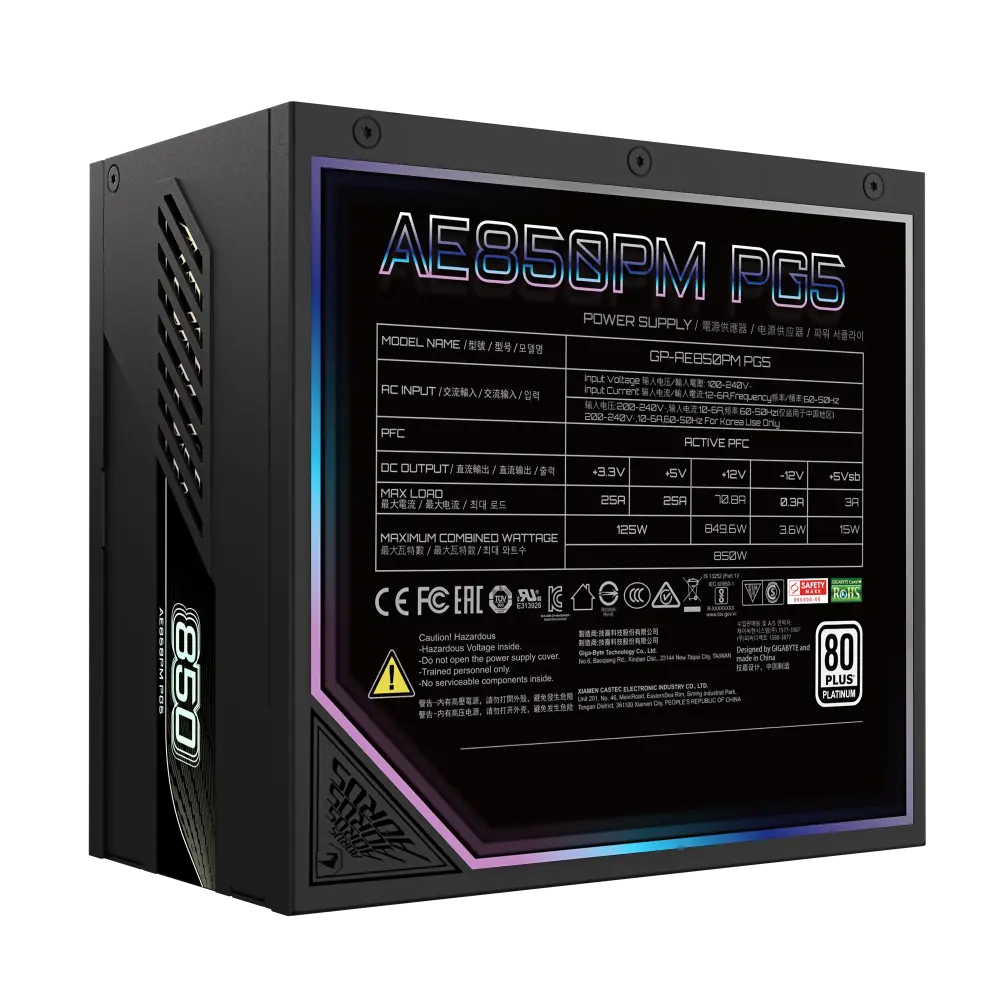

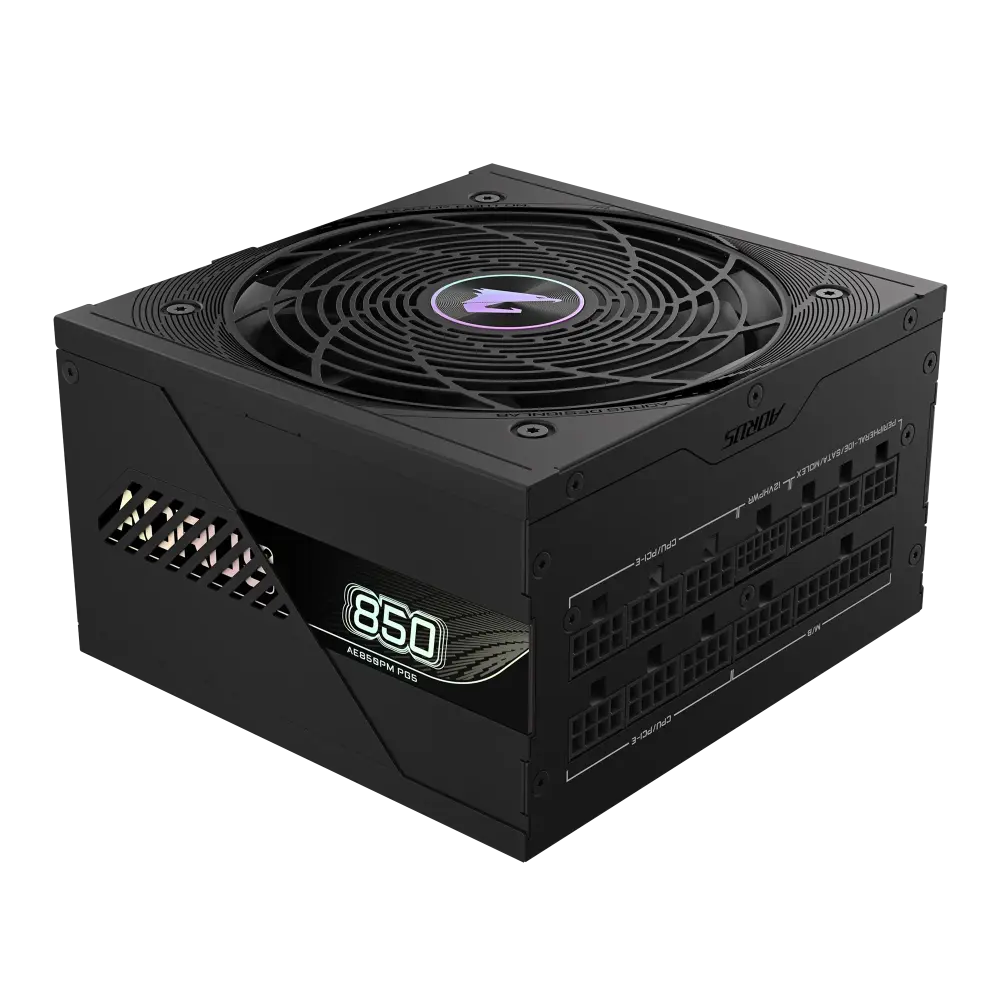

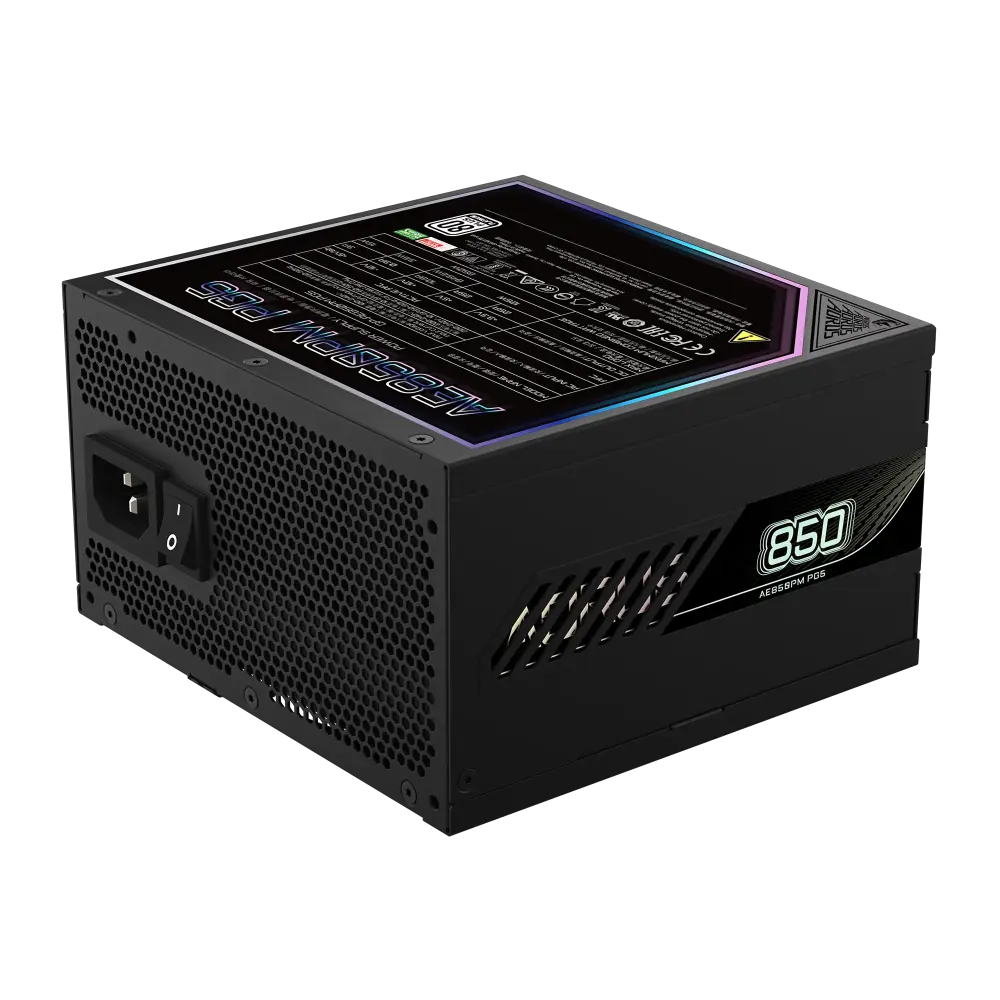

The GP-AE850PM PG5 is a high-performance 850W power supply, built to meet the latest Intel Form Factor ATX 12V v3.1 standards. Featuring Active PFC for improved power efficiency and stability, it operates within a wide input voltage range of 100-240V AC. With an 80 PLUS Platinum certification, it delivers up to 92% efficiency at typical loads, reducing energy consumption and heat output. The unit is equipped with a durable 120mm Fluid Dynamic Bearing (FDB) fan, ensuring effective cooling with minimal noise. Designed for longevity, it boasts an MTBF of over 100,000 hours and multiple protection mechanisms such as OVP, OPP, SCP, UVP, OCP, and OTP for safe and stable power delivery. The flat, all-black cables enhance cable management and aesthetics in PC builds. Additionally, it features a power good signal of 100-150ms and a hold-up time of over 16ms. With versatile connectivity, including PCI-e, CPU/EPS, and SATA connectors, this PSU is ideal for high-performance gaming and workstation setups.

Key Features:

• 850W ATX 12V v3.1 Power Supply
• 80 PLUS Platinum Certified for 92% Efficiency
• Active PFC for Enhanced Power Stability

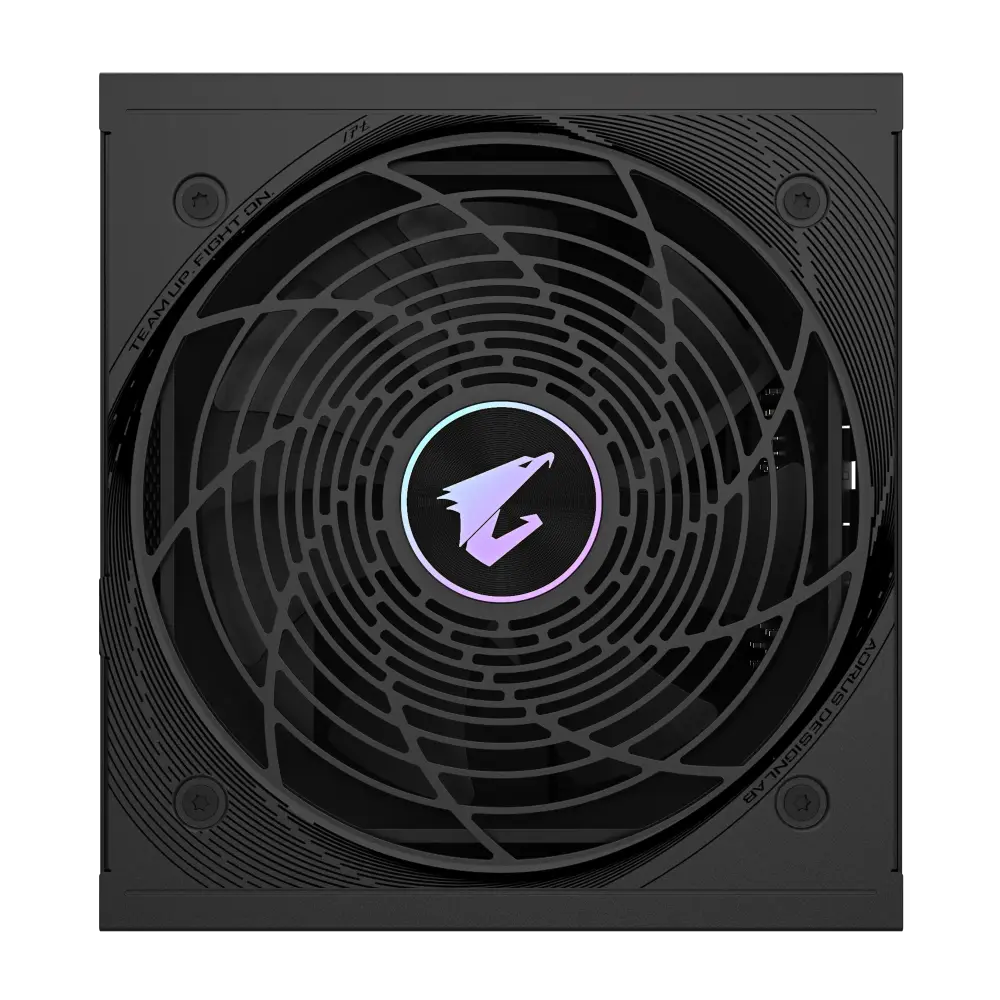

• 120mm Fluid Dynamic Bearing (FDB) Cooling Fan
• Multiple Protection Mechanisms: OVP, OPP, SCP, UVP, OCP, OTP
• Flat, All-Black Cables for Easy Cable Management
• MTBF of Over 100,000 Hours for Long-Term Reliability
• Power Good Signal: 100-150ms
• Hold-Up Time Greater than 16ms

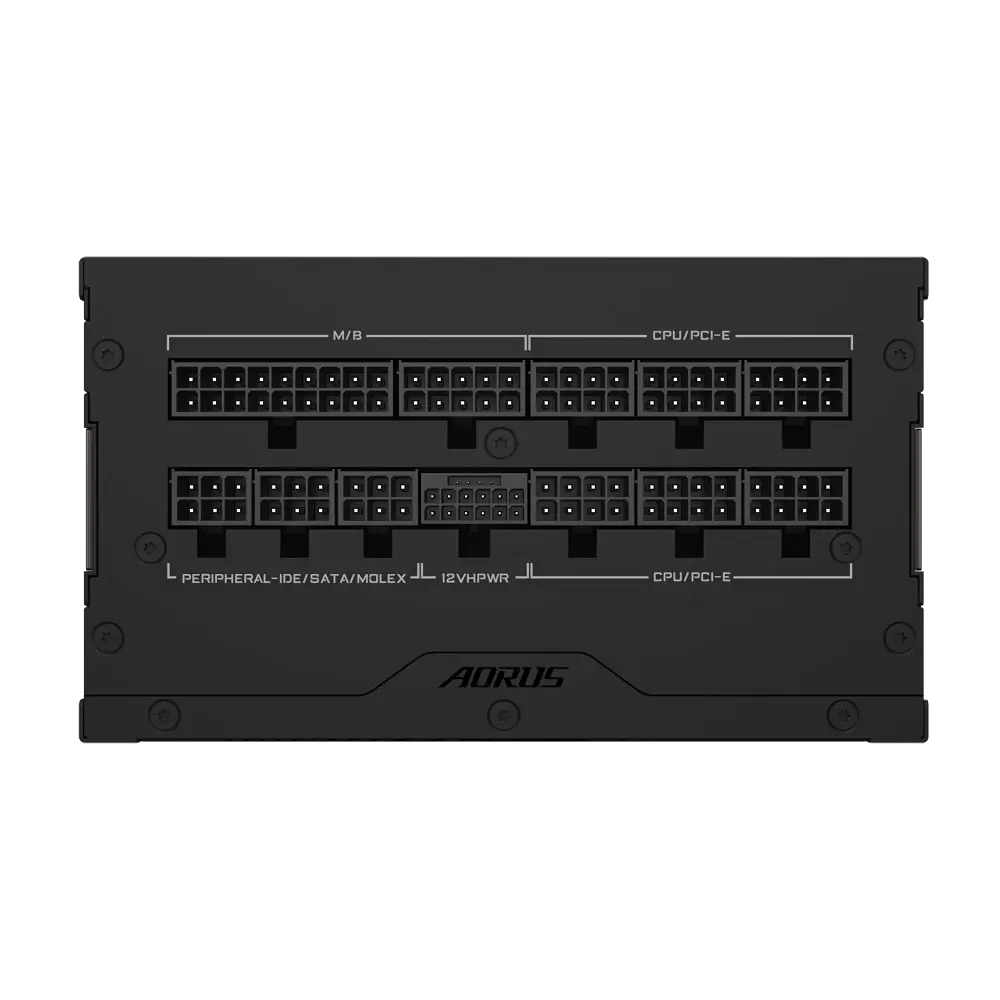

• Comprehensive Connectivity: ATX, EPS, PCI-e, SATA, and Peripheral
