Manufacture: Gigabyte | Model: GP-AE1000PM PG5 ICE

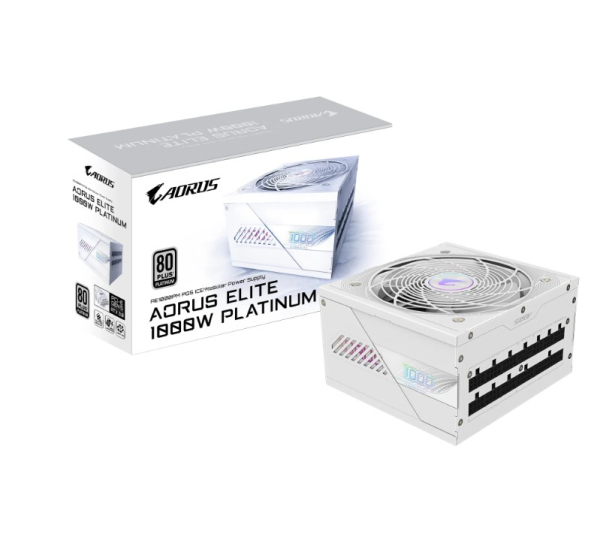

The GP-AE1000PM PG5 ICE is a high-performance 1000W power supply, designed to meet Intel Form Factor ATX 12V v3.1 standards. It features an Active PFC with a power factor of over 0.9, ensuring stable and efficient power delivery. With an 80 PLUS Platinum certification, it achieves up to 92% efficiency at typical loads, reducing energy waste and heat generation. The unit is equipped with a 120mm Fluid Dynamic Bearing (FDB) fan for optimal cooling and silent operation. Built for durability, it boasts an MTBF of over 100,000 hours and includes multiple protection features such as OVP, OPP, SCP, UVP, OCP, and OTP. The power good signal ranges between 100-150ms, and it maintains a hold-up time of over 16ms. A standout feature of this PSU is its sleek, all-white flat cables, offering an aesthetic upgrade for clean and organized cable management. With a wide range of connectors, including PCI-e, EPS, and SATA, this power supply is ideal for high-performance gaming and professional workstation setups.
| Model | GP-AE1000PM PG5 ICE |
| Type | Intel Form Factor ATX 12V v3.1 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1000 W |
| Dimension | 150 x 140 x 86 mm |
| Fan Type | 120mm Fluid Dynamic Bearing (FDB) Fan |
| 80 PLUS | Platinum |
| Efficiency | 92% at typical load |
| MTBF | >100,000 Hours |
| Protection | OVP, OPP, SCP, UVP, OCP, OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All White |
| Connectors | ATX/MB 20+4 Pin x 1: 650mm*1 CPU/EPS 4+4 Pin x 2: 700mm*2 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 6: 650mm+150mm*2, 750mm*2 SATA x 8: 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4: 500mm+150mm+150mm+150mm*1 |
