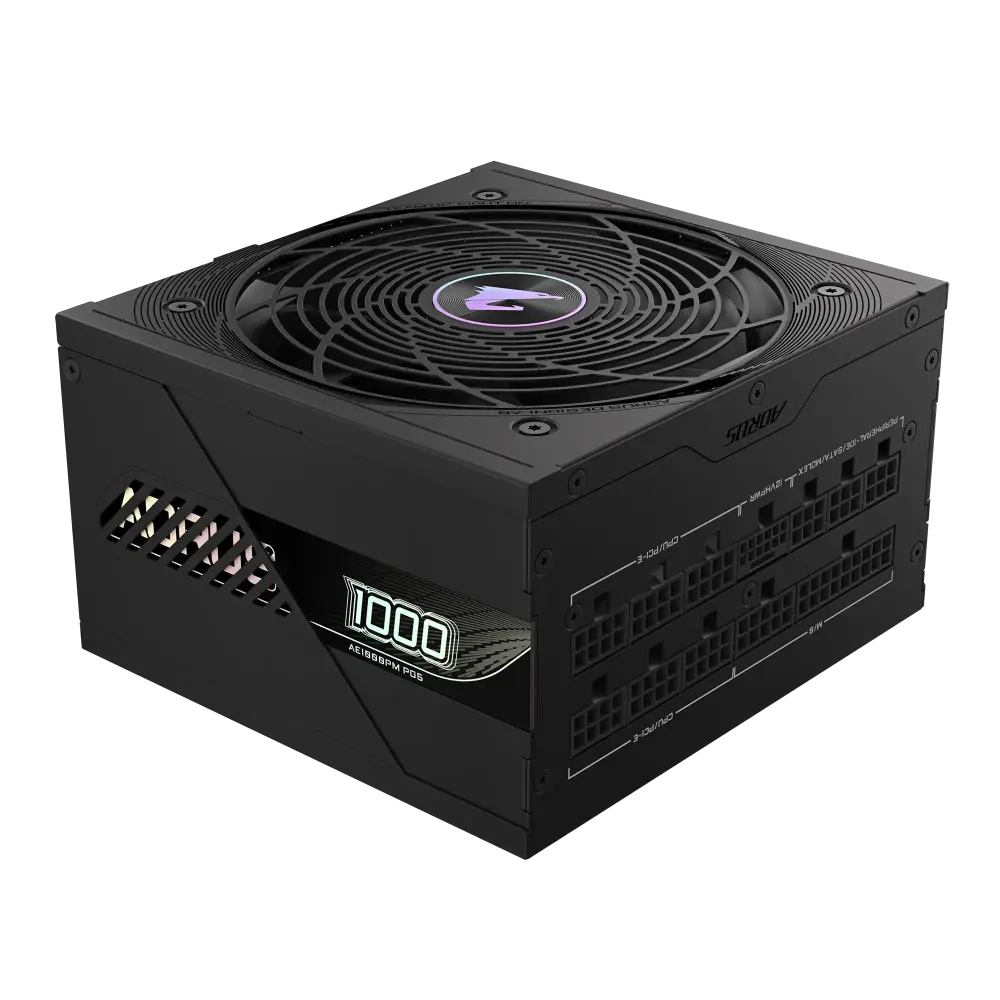

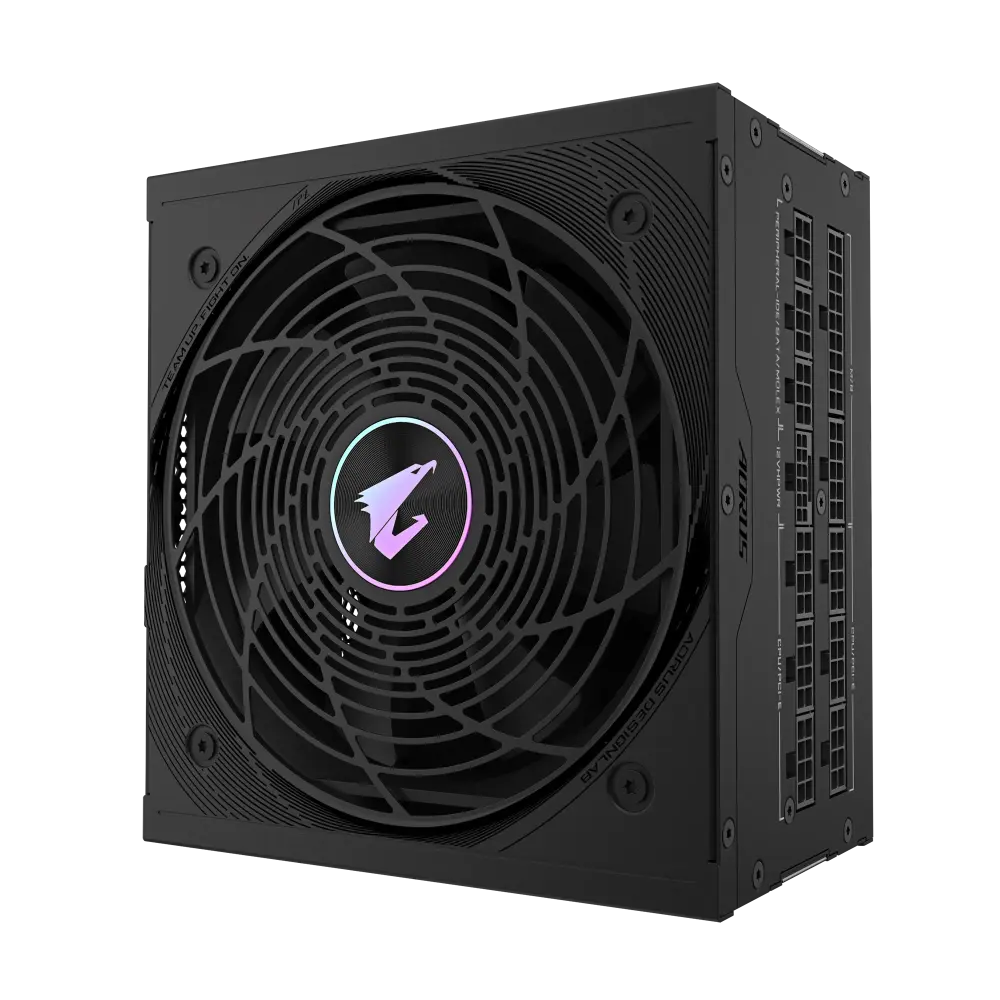

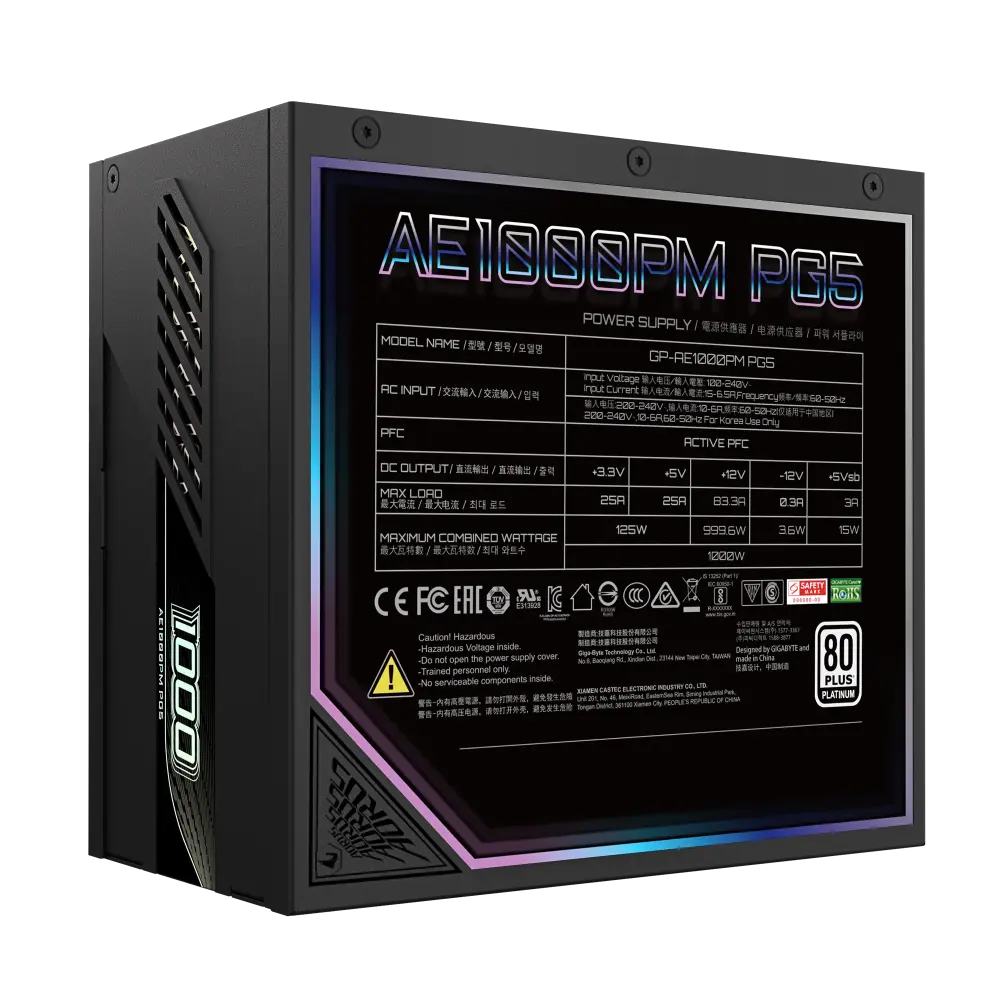

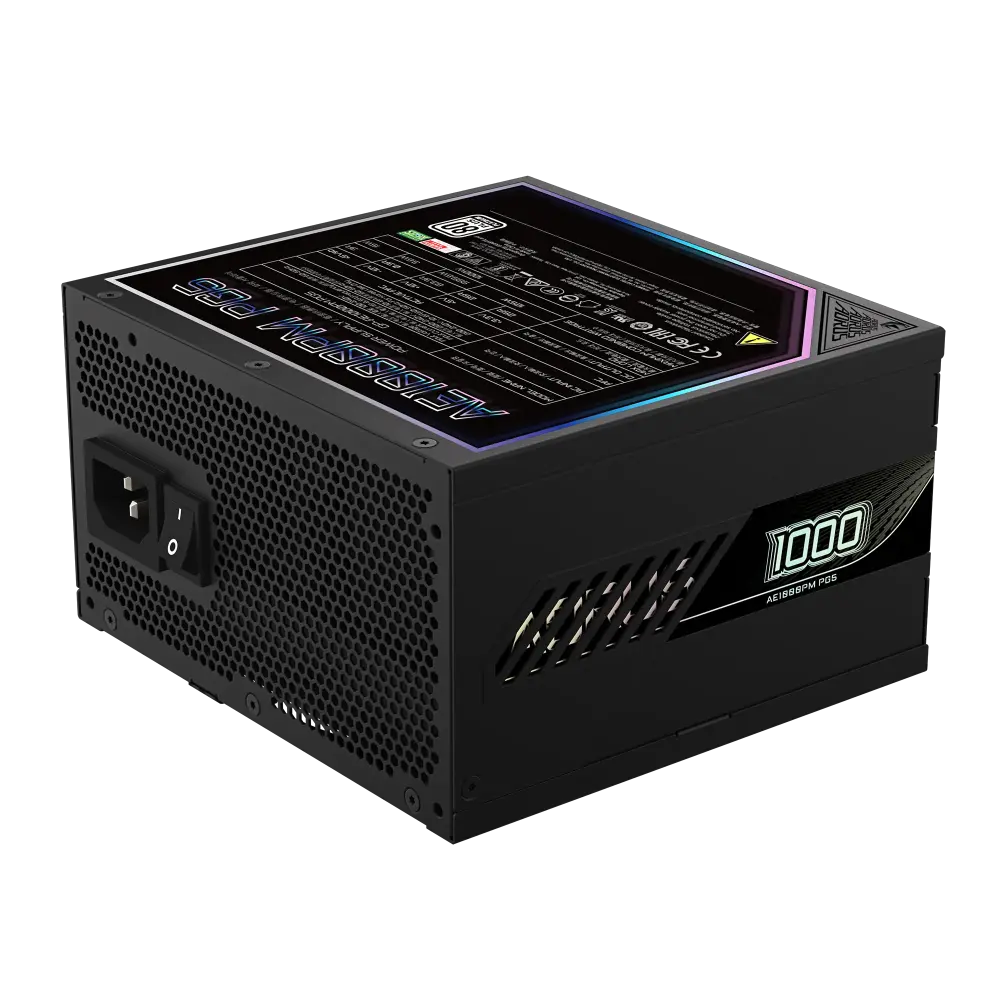

Gigabyte GP-AE1000PM PG5 1000W Power Supply Black

Description

Manufacture: Gigabyte | Model: GP-AE1000PM PG5

The GP-AE1000PM PG5 is a high-performance 1000W power supply designed to meet Intel Form Factor ATX 12V v3.1 standards. Featuring Active PFC for improved power efficiency, it operates within a wide input voltage range of 100-240V AC. The unit is 80 PLUS Platinum certified, ensuring up to 92% efficiency at typical loads. A durable 120mm Fluid Dynamic Bearing (FDB) fan provides superior cooling while maintaining silent operation. With multiple protection mechanisms such as OVP, OPP, SCP, UVP, OCP, and OTP, it guarantees safe and stable power delivery. The unit includes fully black, flat cables for improved cable management and aesthetics. It also boasts an extended lifespan with an MTBF of over 100,000 hours. The power supply features a power good signal of 100-150ms and a hold-up time greater than 16ms. Designed for demanding systems, it provides multiple connectors, including PCI-e 16 Pin, PCI-e 6+2 Pin, SATA, and CPU/EPS connectors, making it an ideal choice for high-end builds.

Key Features:

• 1000W ATX 12V v3.1 Power Supply
• 80 PLUS Platinum Certified for 92% Efficiency
• Active PFC for Enhanced Power Stability

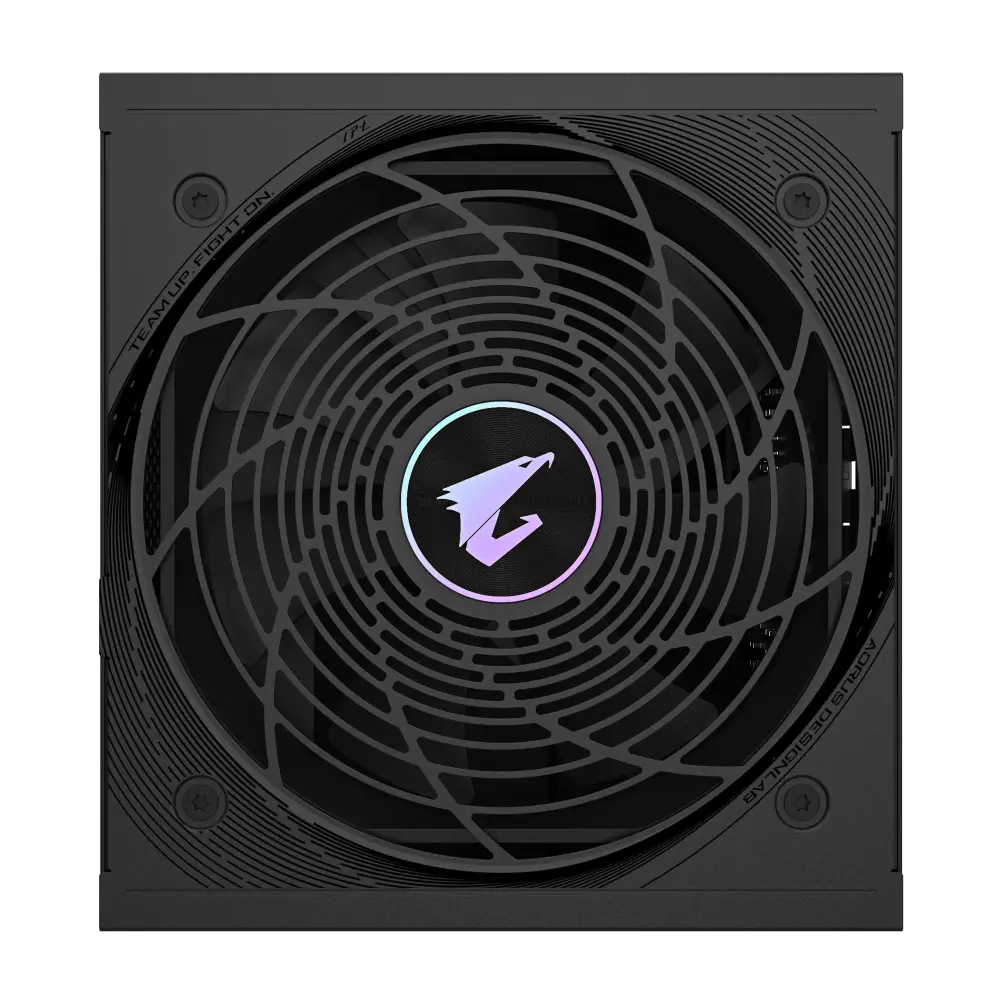

• 120mm Fluid Dynamic Bearing (FDB) Cooling Fan
• Multiple Protection Mechanisms: OVP, OPP, SCP, UVP, OCP, OTP
• Flat, All-Black Cables for Easy Cable Management
• MTBF of Over 100,000 Hours for Long-Term Reliability
• Power Good Signal: 100-150ms
• Hold-Up Time Greater than 16ms

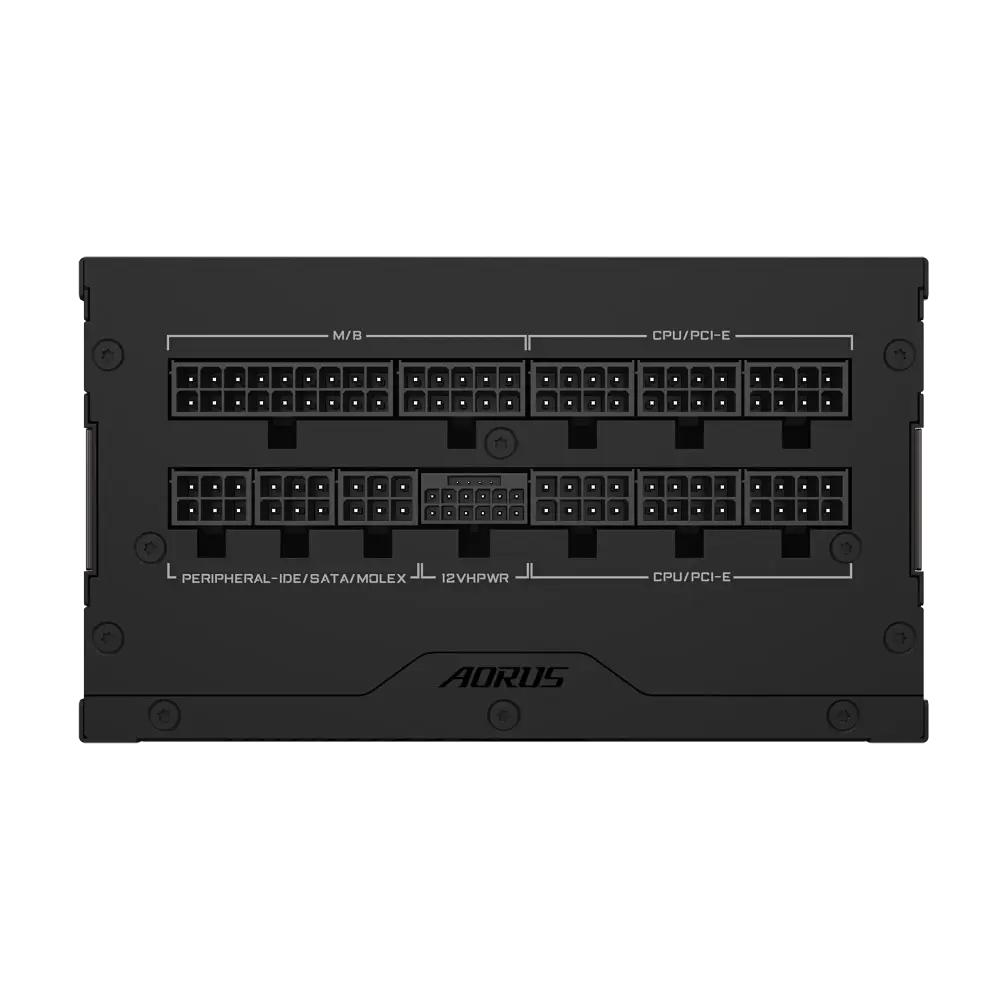

• Comprehensive Connectivity: ATX, EPS, PCI-e, SATA, and Peripheral
