Sku: GV-N506TWF2OC-8GD 1.0
Brand: Gigabyte
Category: nVidia
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
Product Type: Graphics Card, Model: GV-N506TWF2OC-8GD, GPU: NVIDIA GeForce RTX 5060 Ti, VRAM: 8GB GDDR7, Core Clock: 2587 MHz (Boost), CUDA Cores: 4608, Memory Clock: 28 Gbps, Interface: PCIe 5.0, Output: 3x DP 2.1b, 1x HDMI 2.1b, Slot Width: Dual Slot, Recommended PSU: 650W, Power Connector: 1x 8-pin.
We Accept
Manufacture # Gigabyte | Model #GV-N506TWF2OC-8GD 1.0

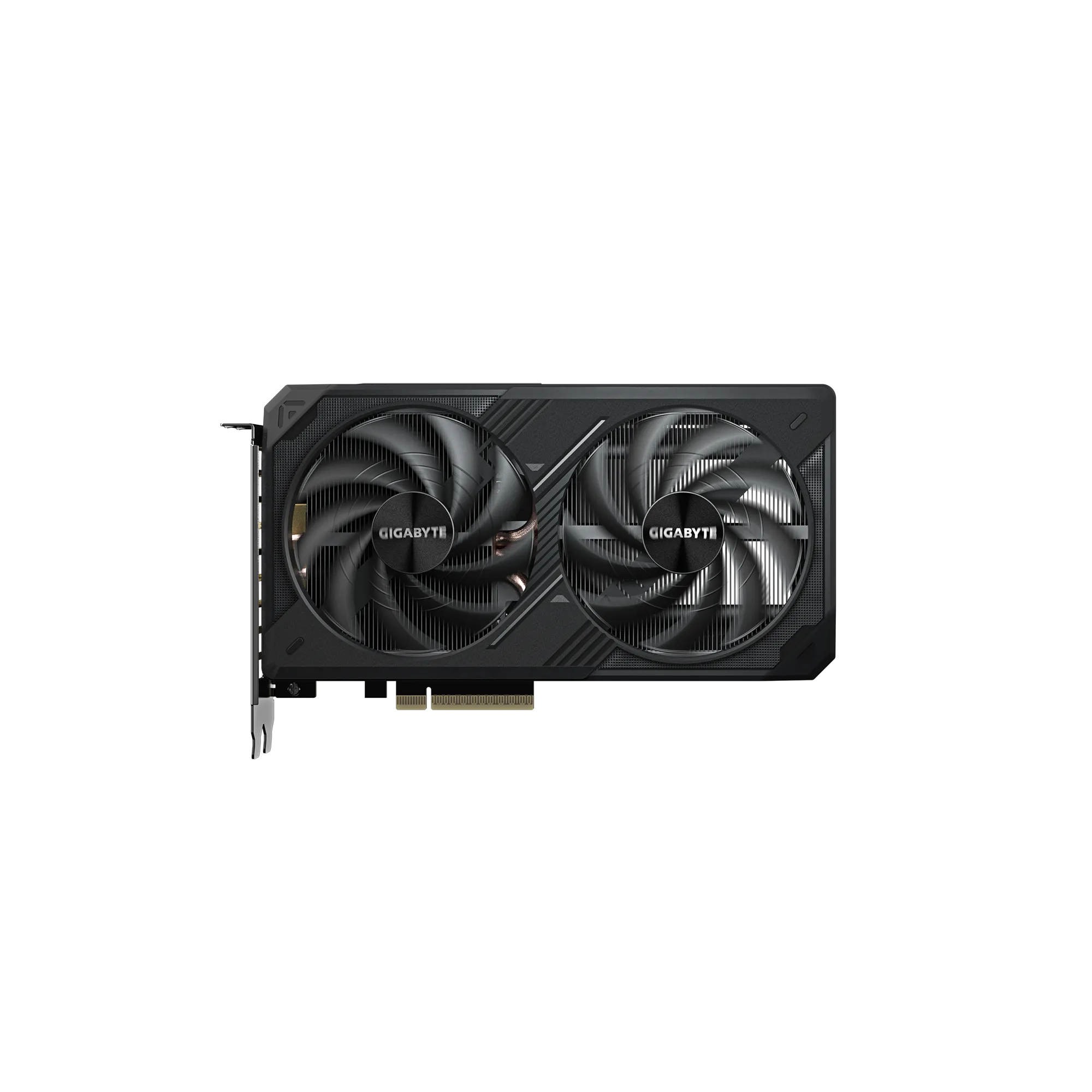

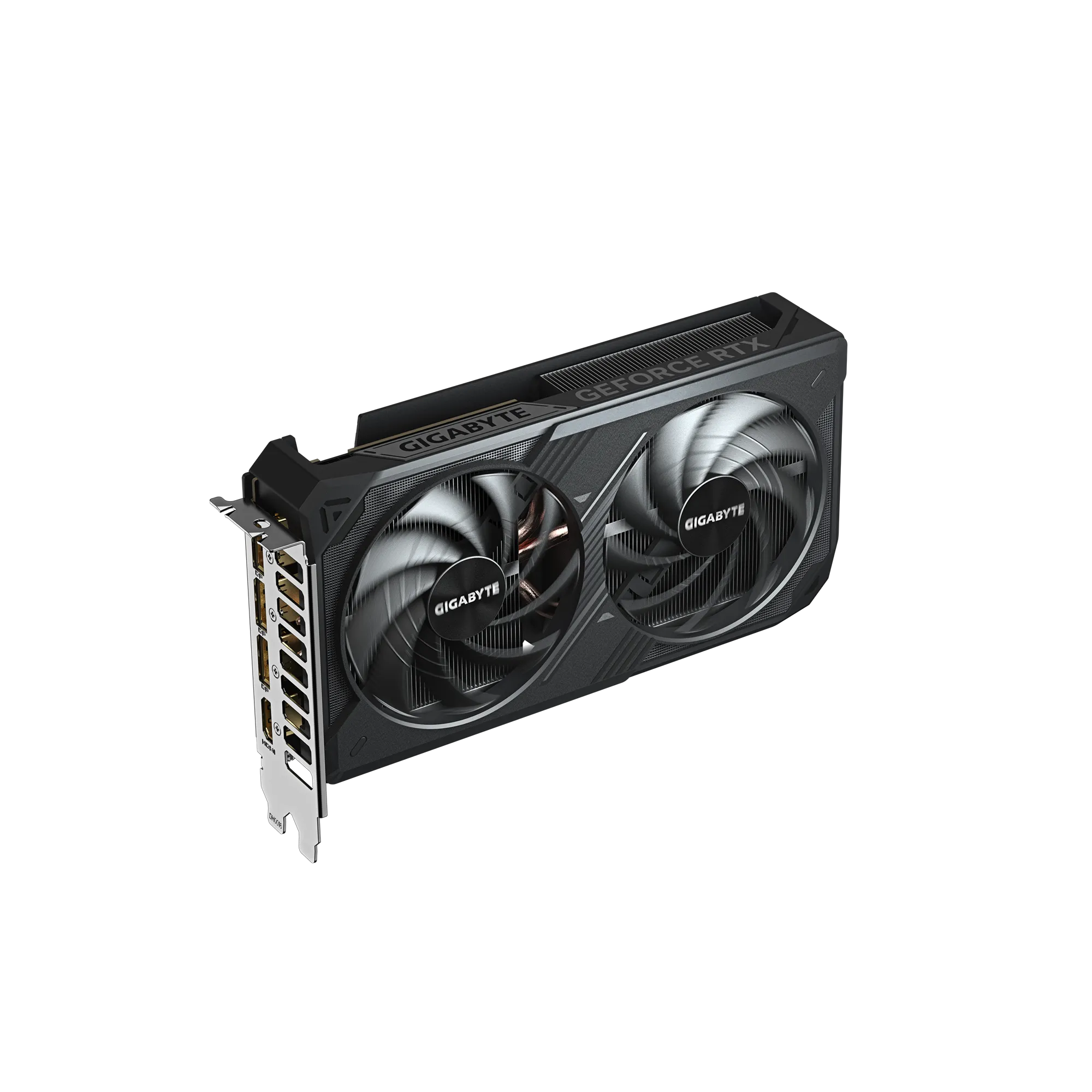

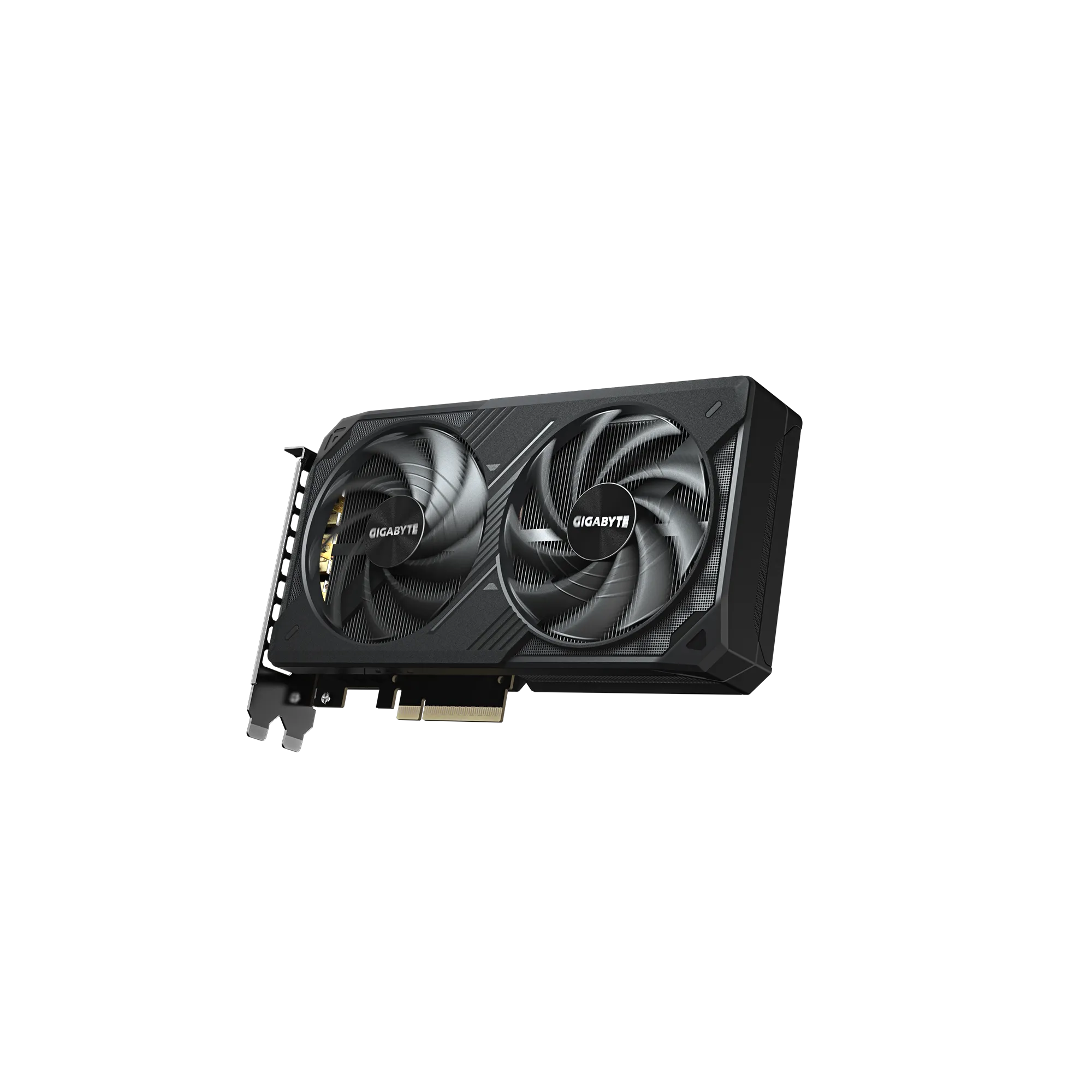

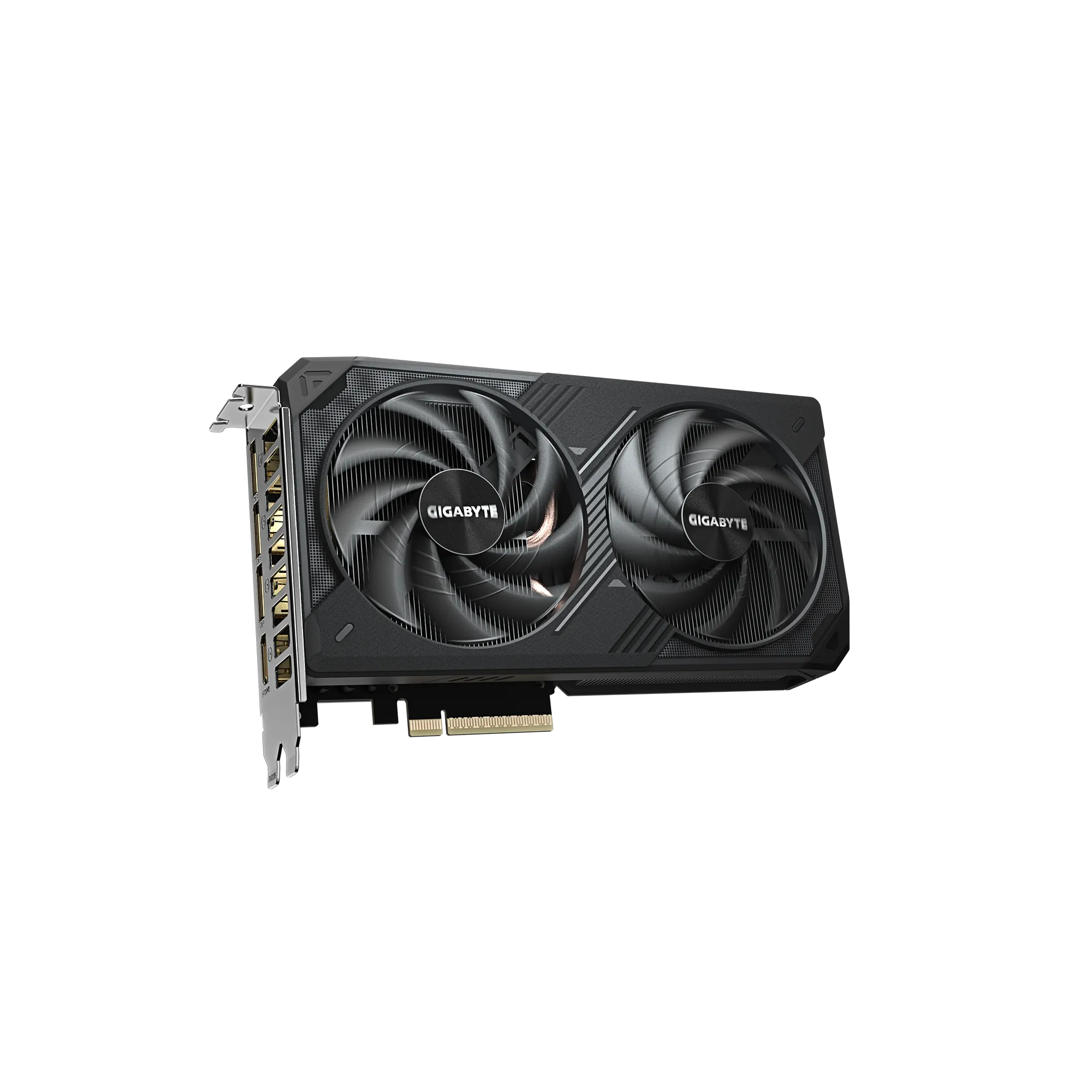

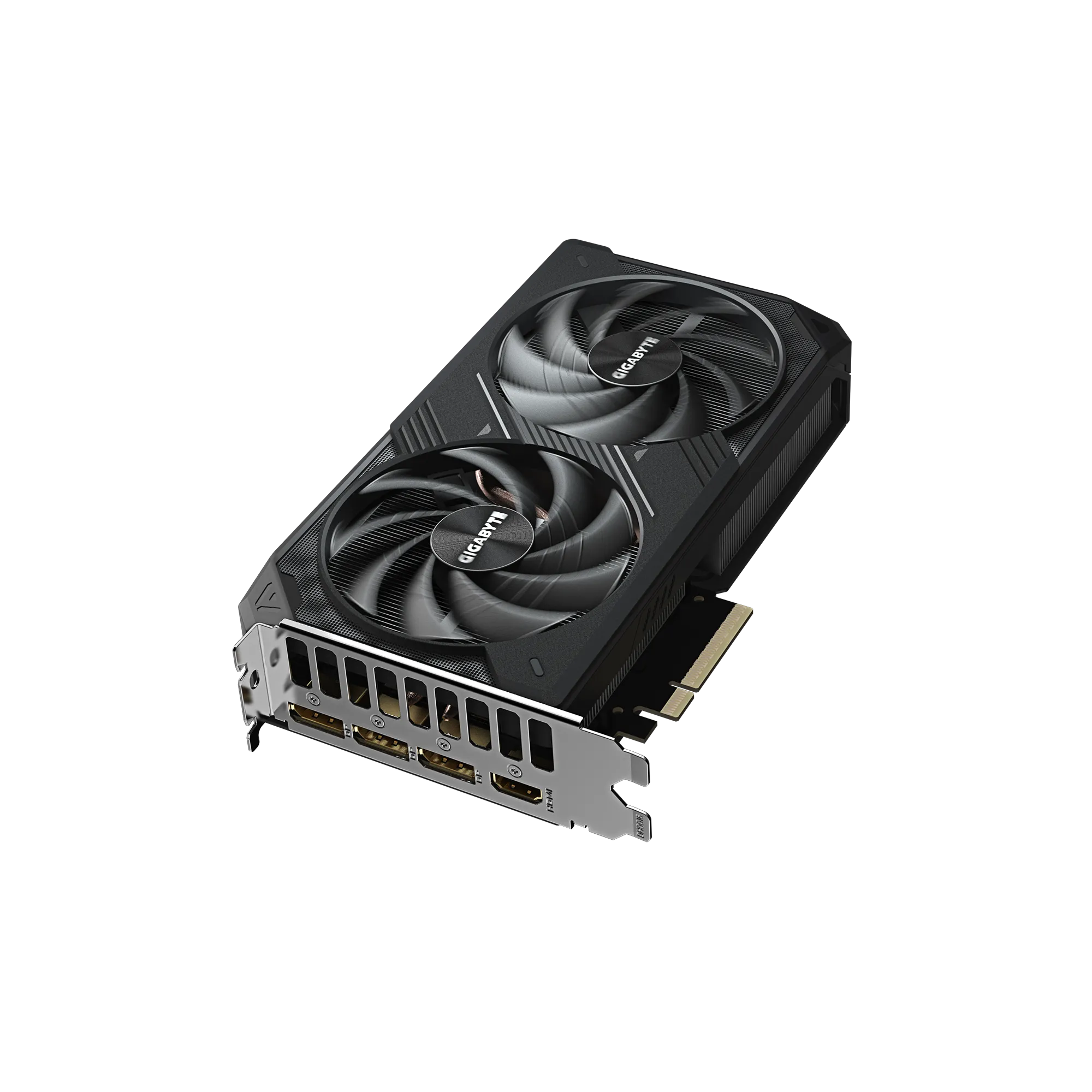

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
Key Features:
Manufacturer Warranty: 01 Years Limited Warranty
| Product Family | GIGABYTE GeForce RTX 5060 Ti WINDFORCE OC |
| Model Number | GV-N506TWF2OC-8GD 1.0 |
| Graphic Engine | NVIDIA® GeForce RTX™ 5060 Ti |
| GPU Architecture | NVIDIA Blackwell |
| CUDA® Cores | 4608 |
| Core Clock (Boost) | 2587 MHz |
| Video Memory | 8GB GDDR7 |
| Memory Clock | 28 Gbps |
| Memory Interface | 128-bit |
| Bus Standard | PCI Express 5.0 |

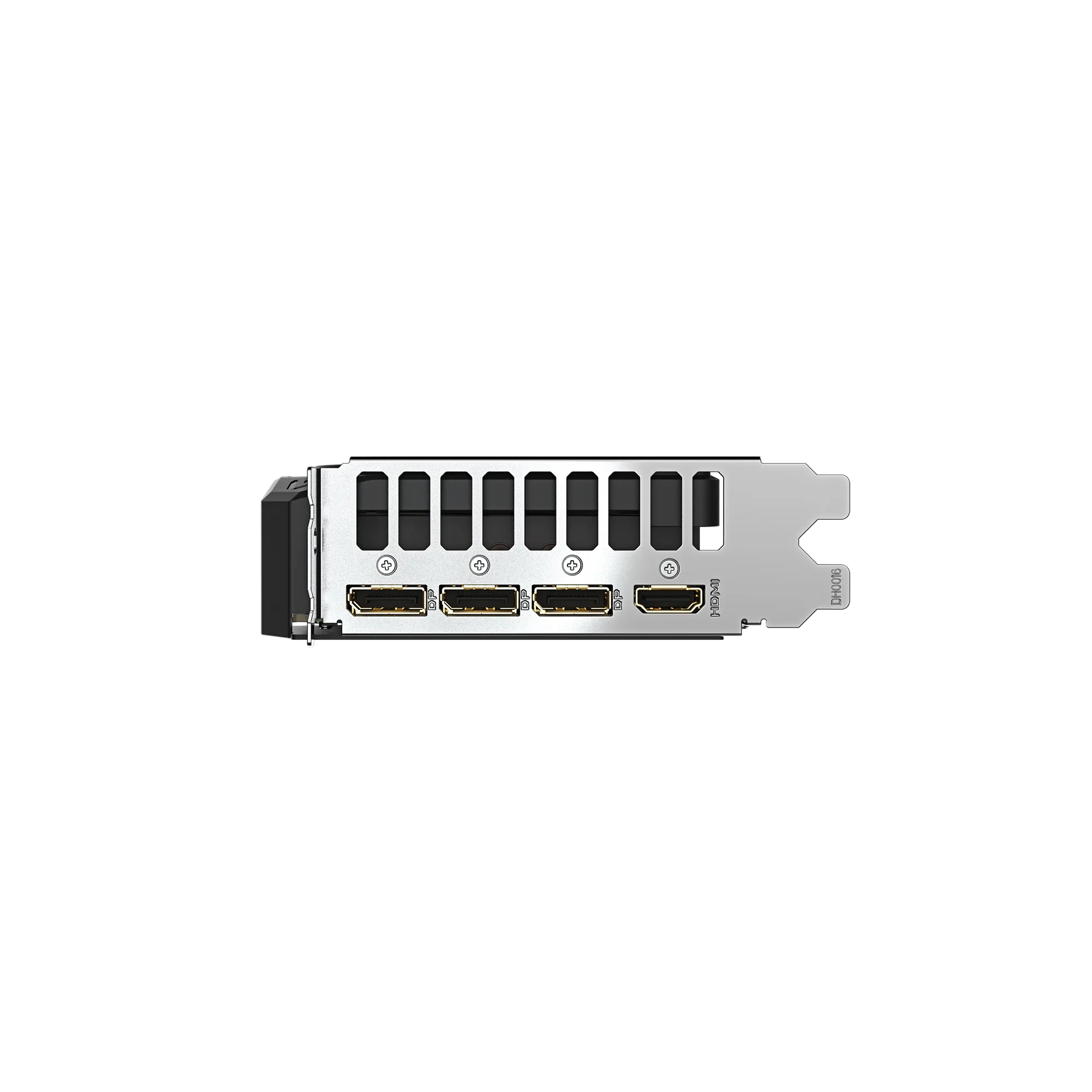

| Output Ports | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Maximum Digital Resolution | 7680 x 4320 |
| Recommended PSU | 650 W |

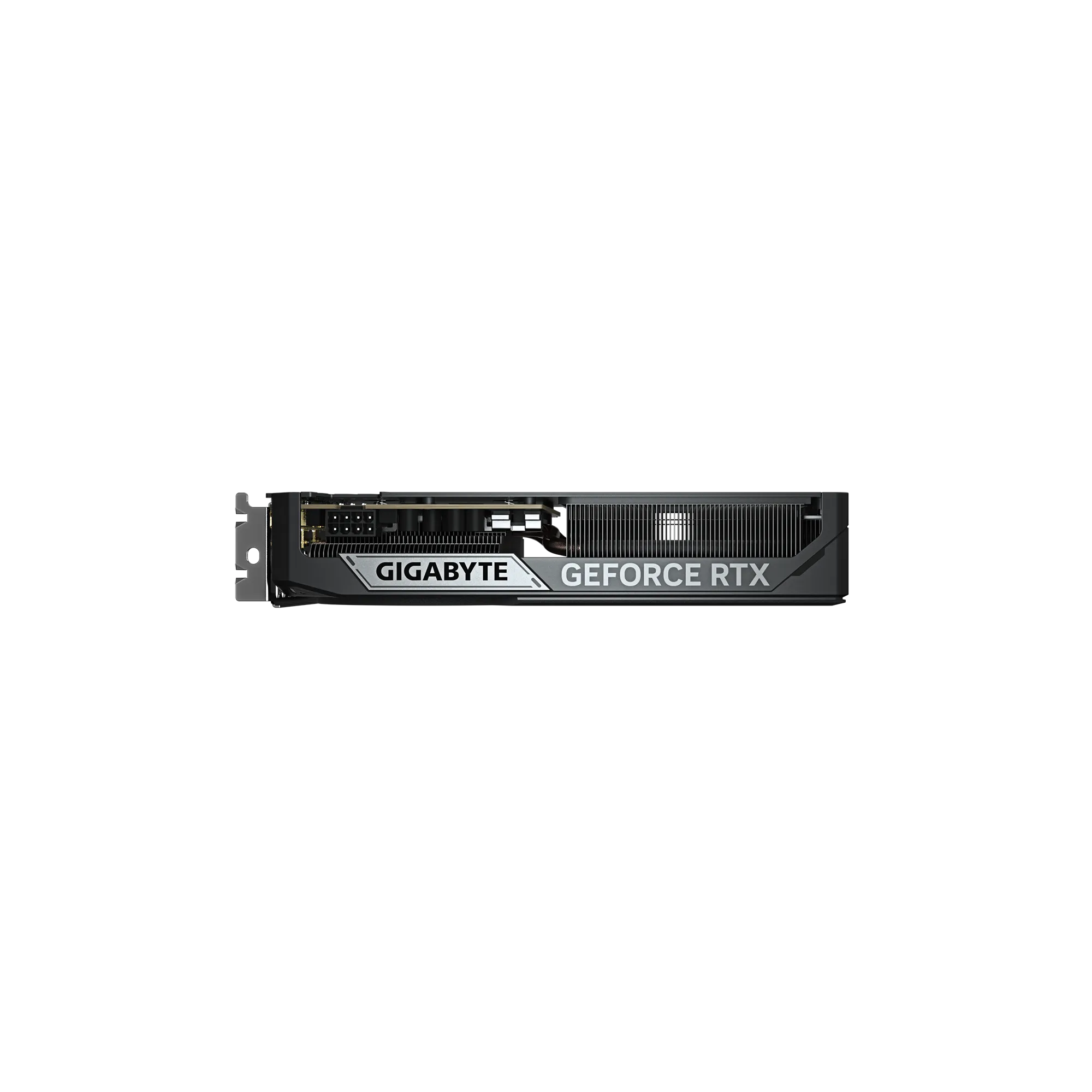

| Power Connectors | 1 x 8-pin |
| Card Dimensions (L x W x H) | 208 x 120 x 40 mm |
