The GIGABYTE B850M AORUS ELITE WIFI6E ICE is a high-performance micro-ATX motherboard built on the AMD B850 chipset, supporting Ryzen 9000/8000/7000 Series processors. With DDR5 memory up to 8200MT/s, PCIe 5.0, Wi-Fi 6E, and advanced cooling, it delivers top-tier features for gamers and DIY PC builders in a compact, powerful form.
We Accept
Manufacture: Gigabyte | Model: B850M A ELT WF6E ICE

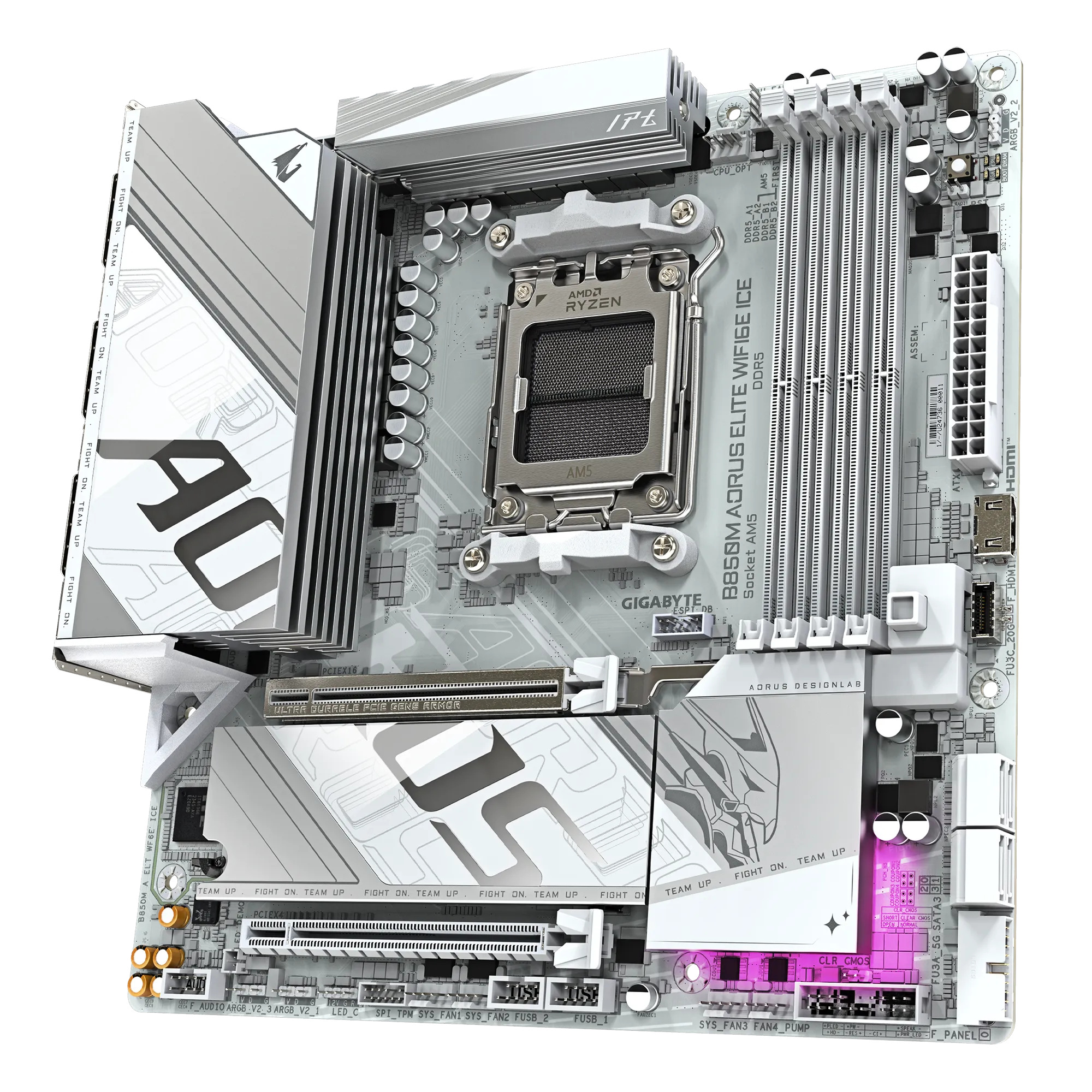

The GIGABYTE B850M AORUS ELITE WIFI6E ICE is a next-gen micro-ATX motherboard engineered for AMD Ryzen™ 9000, 8000, and 7000 Series processors on the AM5 socket. It blends power, performance, and practicality with its 12+2+2 Twin Digital VRM, advanced thermal solutions, and DDR5 support up to 8200MT/s.
Equipped with X3D Turbo Mode and AI-assisted DDR5 overclocking, it maximizes gaming performance with a single click. The board features dual M.2 slots, including one PCIe 5.0 x4, robust PCIe 5.0 graphics support, Wi-Fi 6E + 2.5GbE LAN, and a comprehensive I/O with USB 3.2 Gen2x2.
Designed for enthusiasts, it includes EZ-Latch designs, screwless M.2 heatsinks, and GIGABYTE's intuitive BIOS with AIO Fan Control and RGB Fusion support. Backed by GIGABYTE’s Ultra Durable™ standards, it delivers cutting-edge performance and reliability in a space-saving micro-ATX form factor.
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series processors
12+2+2 Twin Digital VRM Design with DrMOS 60A
4 x DDR5 DIMMs, up to 256GB, up to 8200MT/s OC
Dual M.2 Slots: 1 x PCIe 5.0 x4 & 1 x PCIe 4.0 x4
PCIe 5.0 x16 UD Slot reinforced with stainless steel
Wi-Fi 6E + Bluetooth 5.3, with ultra-high gain antenna
Realtek 2.5GbE LAN
EZ-Latch Designs for tool-less M.2 and PCIe installation
X3D Turbo Mode for one-click gaming performance boost
Advanced Thermal Design with VRM and M.2 cooling
USB 3.2 Gen 2x2 Type-C, DisplayPort & HDMI output
RGB Fusion & Sensor Panel Link support
Supports RAID 0/1/5/10 on NVMe SSDs
GIGABYTE Control Center, Smart Fan 6, Q-Flash Plus
Micro-ATX Form Factor (24.4 x 24.4 cm)
| Category | Details |
|---|---|
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Socket | AM5 |
| Chipset | AMD B850 |
| Form Factor | Micro-ATX (24.4cm x 24.4cm) |
| Memory | 4 x DDR5 DIMMs, Dual Channel, up to 256GB |
| Memory OC Support | Up to 8200 MT/s (EXPO/XMP supported) |
| Graphics Interface | 1 x PCIe 5.0 x16 (UD Slot), 1 x PCIe 3.0 x4 |
| Integrated Graphics Output | 1 x DisplayPort 1.4 (4K@144Hz), 1 x HDMI 1.4 (1080p@30Hz) |
| M.2 Slots | 1 x PCIe 5.0 x4 (M2A_CPU), 1 x PCIe 4.0 x4 (M2B_CPU) |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 (NVMe), RAID 0/1/10 (SATA) |
| LAN | Realtek 2.5GbE LAN |
| Wi-Fi & BT | Wi-Fi 6E (RTL8852CE), Bluetooth 5.3 |
| USB Ports (Rear) | 1 x USB-C (3.2 Gen 2), 2 x USB 3.2 Gen 2 Type-A, 5 x USB 3.2 Gen 1, 4 x USB 2.0 |
| USB Ports (Internal) | USB 3.2 Gen 2x2 Type-C header, USB 3.2 Gen 1, USB 2.0 |
| Audio Codec | Realtek ALC1220 (rev 1.1) or Realtek Audio CODEC (rev 1.0) |
| Audio Output | 7.1-channel HD Audio, S/PDIF Out |
| Fan Headers | 1 x CPU, 1 x CPU/Water Pump, 3 x SYS, 1 x SYS/Water Pump |
| RGB Headers | 3 x ARGB Gen2, 1 x RGB |
| BIOS | AMI UEFI BIOS, Q-Flash, Q-Flash Plus |
| Special Features | EZ-Latch (PCIe & M.2), Sensor Panel Link, Smart Fan 6, RGB Fusion, GCC |
| OS Support | Windows 11/10 64-bit |
