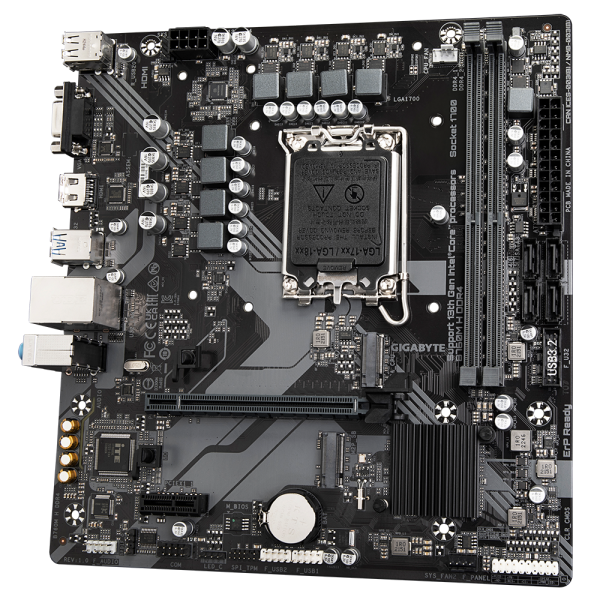

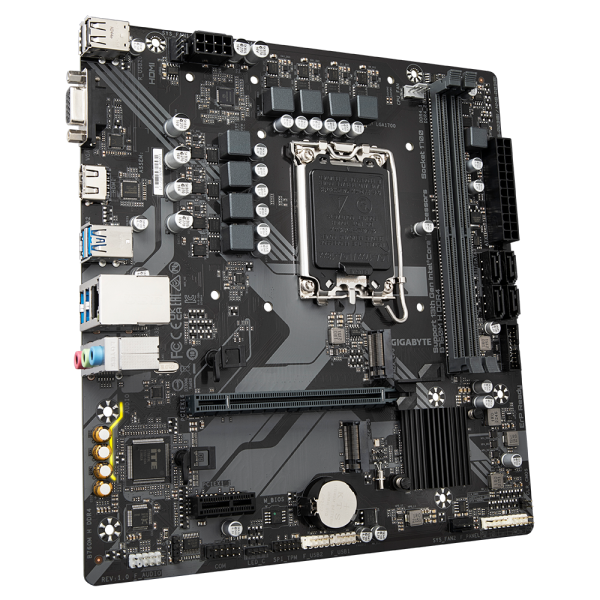

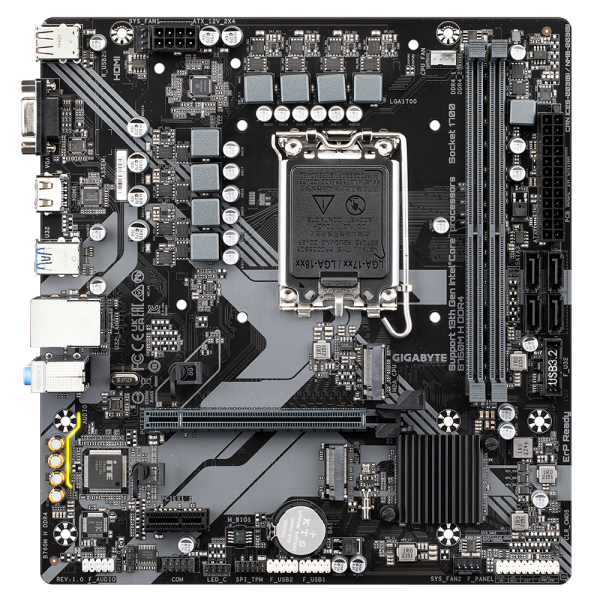

Gigabyte B760M H DDR4 LGA 1700 mATX Motherboard

Sku: B760M H D4

Brand: Gigabyte

Category: Intel Boards

$154.00

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Find

Chipset: Intel B760, RAM Capacity: upto 64GB (32GB each), DIMM Slots: 2, OS: Support for Windows 11/10 64-bit, Form Factor: Micro ATX, Warranty: 03 Years, B760M H D4.

-
+

We Accept

Thumbnail 3

Description

Manufacture # Gigabyte | Model #  B760M H D4



GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.



Features:

  • Intel Socket LGA 1700: Support 13th and 12th Gen Series Processors
  • Unparalleled Performance: Hybrid 6+1+1 Phases Digital VRM Solution
  • Dual Channel DDR4: 2*DIMMs XMP Memory Module Support
  • Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
  • EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
  • Fast Networks: GbE LAN
  • Extended Connectivity: HDMI, D-Sub
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP



Overview:

  • Chipset: Intel B760
  • RAM Capacity: upto 64GB (32GB each)
  • DIMM Slots: 2
  • OS: Support for Windows 11/10 64-bit
  • Form Factor: Micro ATX



Manufacturer Warranty: 03 Years Limited Warranty

General

Chipset A chipset is an electronic component in an integrated circuit known as a "Data Flow Management System" that manages the data flow between the processor, memory and peripherals.
Intel B760
Socket A CPU socket or CPU slot contains mechanical components providing mechanical and electrical connections between a processor and PCB. This allows for placing the CPU without soldering.
LGA1700
Support for the 13th and 12thGeneration Intel Core, Pentium Gold and Celeron Processors
BIOS Basic Input/Output System, also known as the System BIOS is firmware used to provide runtime services for operating systems and programs to perform hardware initialization during the booting process.
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash

Memory

RAM Capacity The total memory that can be added to a computer depends on the address registers built into the CPU.
upto 64GB (32GB each)
DIMM Slots DIMM (dual in-line memory module) slots are the place on your motherboard where the RAM goes.
2
RAM Frequency Supports RAM frequency is measured in MHz and usually immediately follows the DDR version in the RAM spec.
DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules

Onboard Graphics

With HDMI
1 x HDMI port
Supporting a maximum resolution of 4096x2160@60 Hz
With DisplayPort

Wireless Communication

Wi-Fi Wi-Fi is a wireless networking technology that allows devices such as computers, mobile devices, and other equipments to interface with the Internet.
Bluetooth Bluetooth is a wireless technology that enables the exchange of data between devices using wavelength.

Slots And Ports

Expansion Slots An expansion slot is a socket on the motherboard that is used to insert an expansion card, which provides additional features to a computer such as video, sound, graphics, ethernet or memory.
1 x PCI Express x16 slot
1 x PCI Express x16 slot
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
Internal I/O Connectors An I/O (Input/Output) port is a socket on a computer that a cable is plugged into. The port connects the CPU to a peripheral device via a hardware interface or to the network via a network interface.
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

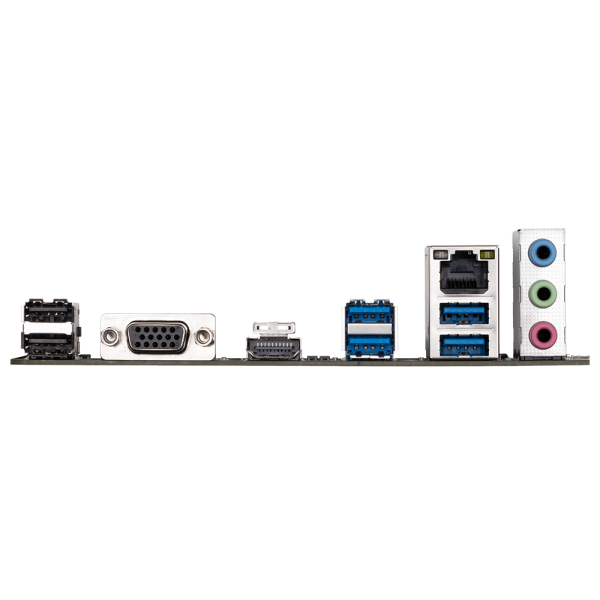

Back Panel Connectors The back or rear panel is the portion of the motherboard that allows you to connect external devices, such as your monitor, speakers, keyboard, mouse etc.
2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks

Software

Operating System Supports An operating system (OS) is system software that manages computer hardware, software resources, and provides common services for computer programs.
Support for Windows 11/10 64-bit
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Physical

Form Factor The motherboard's form factor indicates the shape and size specifications of the board.
Micro ATX
Dimensions
23.0cm x 21.5cm
