Gigabyte B760M Gaming X AX LGA 1700 DDR5 Micro-ATX Motherboards

Description

Manufacture: Gigabyte | Model: GA-B760M-GAMING-X-AX

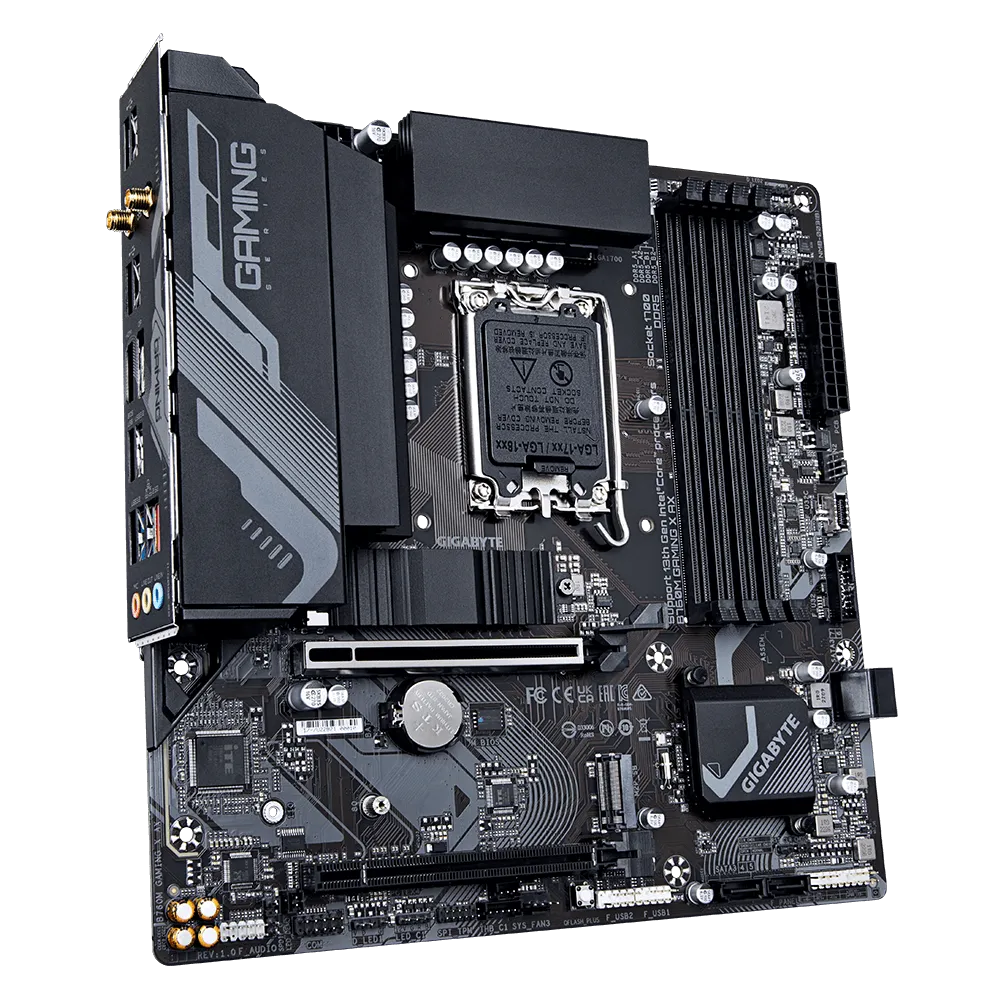

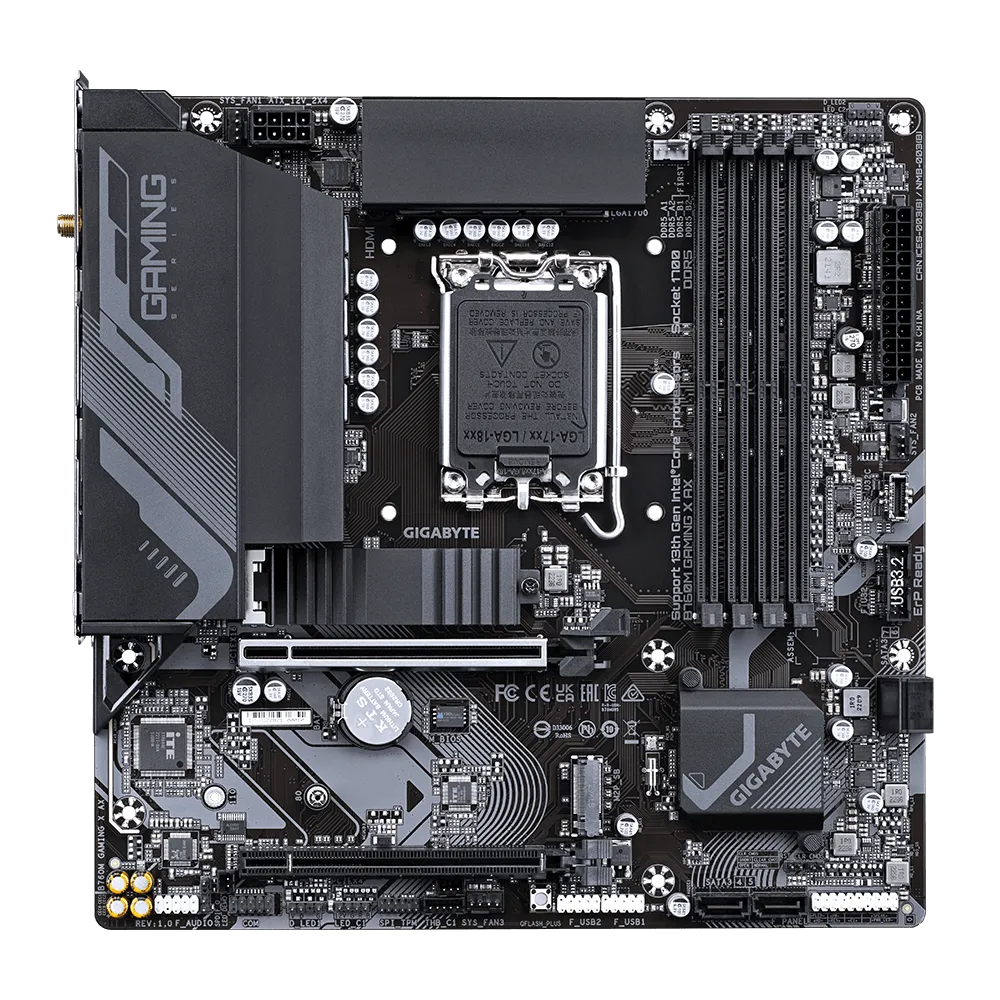

The GIGABYTE B760M GAMING X AX (rev. 1.0) is a micro-ATX motherboard crafted for gamers and enthusiasts looking to build a high-performance Intel-based system. It supports Intel® Core™ 14th/13th/12th Gen processors on the LGA1700 socket and features a robust 8+1+1 phase VRM digital power design. With DDR5 memory support up to 7600 MT/s (OC), dual PCIe 4.0 M.2 slots, and enhanced thermal solutions, this motherboard ensures top-tier speed, stability, and longevity. Equipped with Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2 Type-C®, and advanced Smart Fan 6 cooling, it's optimized for immersive gaming, smooth multitasking, and easy PC building with EZ-Latch and Q-Flash Plus.

Key Features

• CPU Support: 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold & Celeron® processors

• VRM: Hybrid 8+1+1 Phases Digital VRM for stable power delivery

• Memory: 4× DDR5 DIMMs, up to 256GB, 7600 MT/s (OC), XMP ready

• Storage: 2× PCIe 4.0 x4 M.2, 4× SATA 6Gb/s, RAID 0/1/5/10

• Networking: Realtek 2.5GbE LAN & Intel Wi-Fi 6E AX210/AX211, Bluetooth 5.3

• Graphics Output: HDMI 2.1 & DisplayPort 1.2 (up to 4K60)

• Expansion: PCIe 4.0 x16 + PCIe 3.0 x4 slots

• Cooling: Smart Fan 6 with multiple sensors, hybrid fan headers, FAN STOP

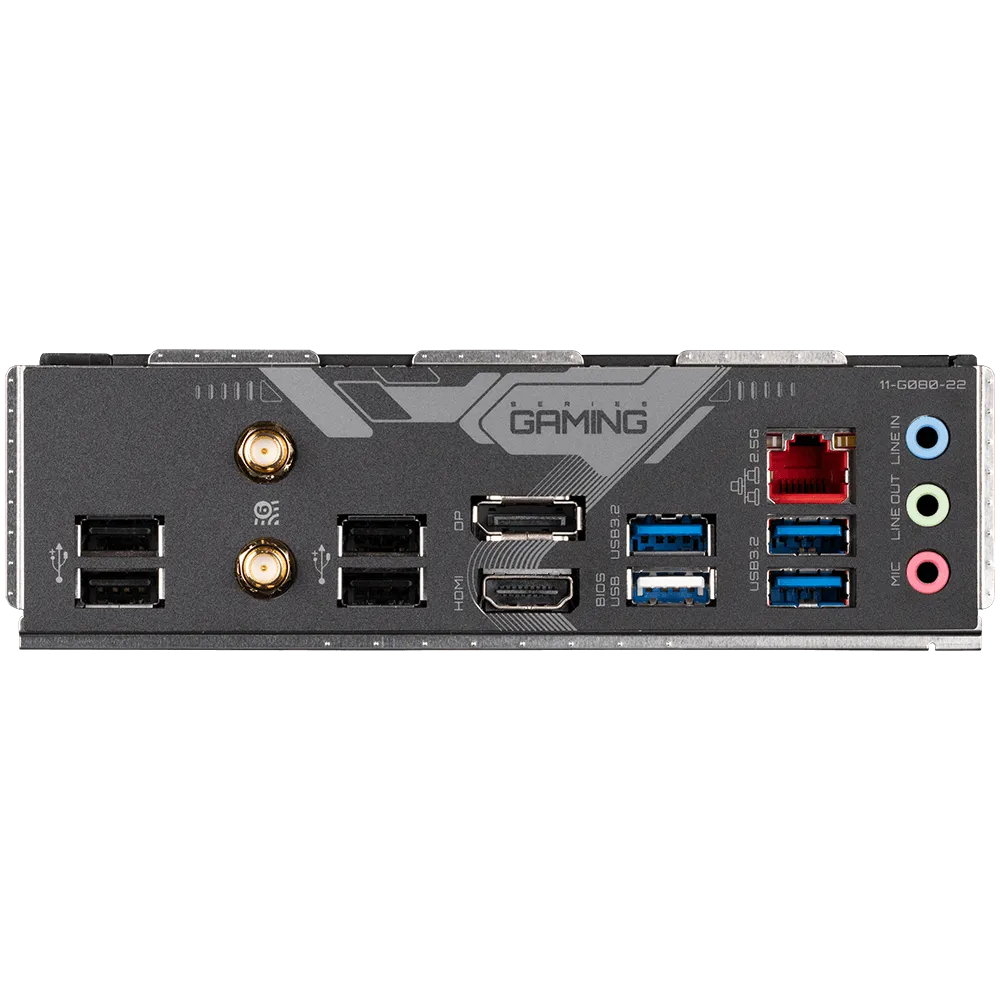

• Connectivity: Front USB-C® 10Gb/s, 5× USB 3.2 Gen 1, 9× USB 2.0

• EZ-Latch: Quick-release PCIe slot design

• BIOS Update: Q-Flash & Q-Flash Plus (no CPU/RAM/GPU needed)

• Form Factor: Micro-ATX (24.4 x 24.4 cm)
