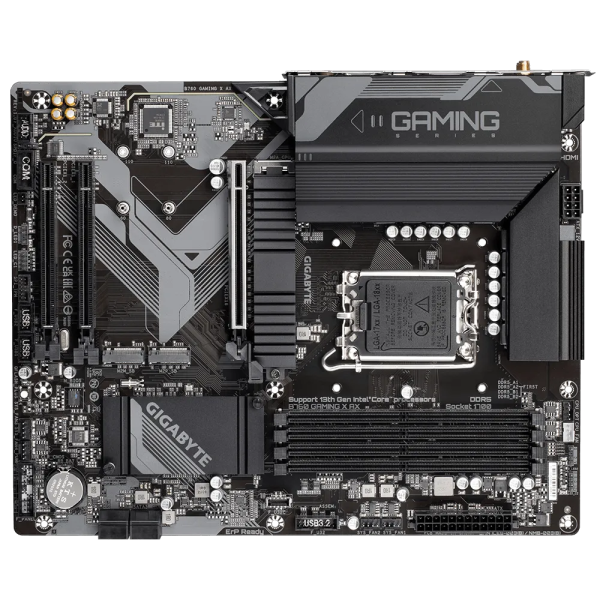

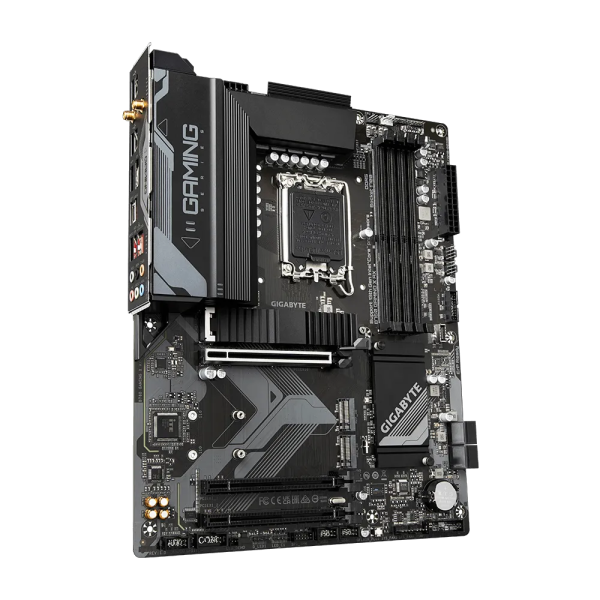

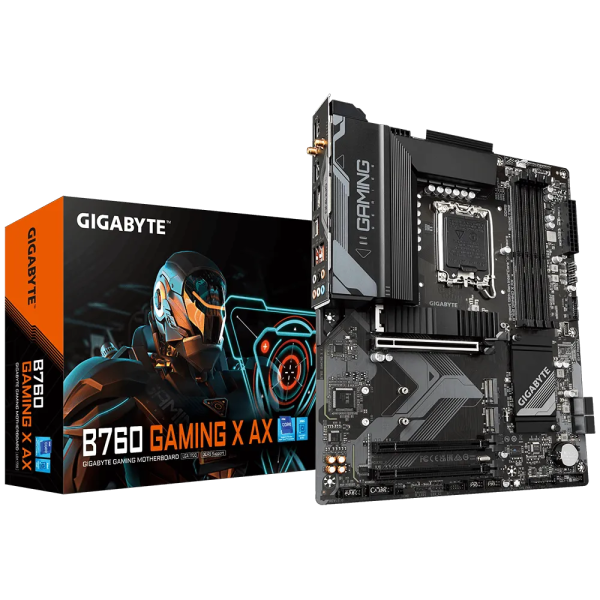

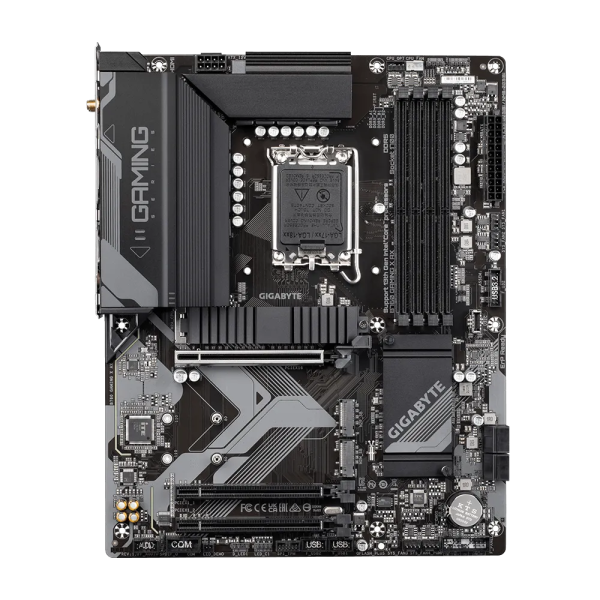

Gigabyte B760 Gaming X AX DDR5 Intel LGA 1700 ATX Motherboard GA B760 GAMING X AX

Sku: B760 GAMING X AX

Availability: In Stock

Brand: Gigabyte

Category: Intel Boards

$298.10

Chipset: Intel B760, RAM Capacity: upto 192GB (48GB each), DIMM Slots: 4, Operating System Supports: Support for Windows 11/10 64-bit, Form Factor: ATX, Dimensions: 30.5cm x 24.4cm, Warranty: 03 Years, GA-B760-GAMING-X-AX.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # Gigabyte | Model # GA-B760-GAMING-X-AX



The fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.



Features:

  • Gigabyte Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
  • Gigabyte Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
  • Gigabyte motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
  • Gigabyte motherboards use the best components and reinforce every slots to make each of them solid and durable.



Overview:

  • Chipset: Intel B760
  • RAM Capacity: upto 192GB (48GB each)
  • DIMM Slots: 4
  • Operating System Supports: Support for Windows 11/10 64-bit
  • Form Factor: ATX
  • Dimensions: 30.5cm x 24.4cm



Manufacturer Warranty: 03 Years Limited Warranty

General

Chipset A chipset is an electronic component in an integrated circuit known as a "Data Flow Management System" that manages the data flow between the processor, memory and peripherals.
Intel B760
Socket A CPU socket or CPU slot contains mechanical components providing mechanical and electrical connections between a processor and PCB. This allows for placing the CPU without soldering.
LGA 1700
Supports 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors
BIOS Basic Input/Output System, also known as the System BIOS is firmware used to provide runtime services for operating systems and programs to perform hardware initialization during the booting process.
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus

Memory

RAM Capacity The total memory that can be added to a computer depends on the address registers built into the CPU.
upto 192GB (48GB each)
DIMM Slots DIMM (dual in-line memory module) slots are the place on your motherboard where the RAM goes.
4
RAM Frequency Supports RAM frequency is measured in MHz and usually immediately follows the DDR version in the RAM spec.
DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

Onboard Graphics

With HDMI
1 x HDMI port
Supporting a maximum resolution of 4096x2160@60 Hz
With DisplayPort
1 x DisplayPort
Supporting a maximum resolution of 4096x2304@60 Hz

Wireless Communication

Wi-Fi Wi-Fi is a wireless networking technology that allows devices such as computers, mobile devices, and other equipments to interface with the Internet.
Intel Wi-Fi 6E AX210
WIFI a, b, g, n, ac, ax, supporting 2.4 / 5 / 6 GHz carrier frequency bands
Bluetooth Bluetooth is a wireless technology that enables the exchange of data between devices using wavelength.
5.3

Slots And Ports

Expansion Slots An expansion slot is a socket on the motherboard that is used to insert an expansion card, which provides additional features to a computer such as video, sound, graphics, ethernet or memory.
1 x PCI Express x16 slot
2 x PCI Express x16 slots
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
Internal I/O Connectors An I/O (Input/Output) port is a socket on a computer that a cable is plugged into. The port connects the CPU to a peripheral device via a hardware interface or to the network via a network interface.
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

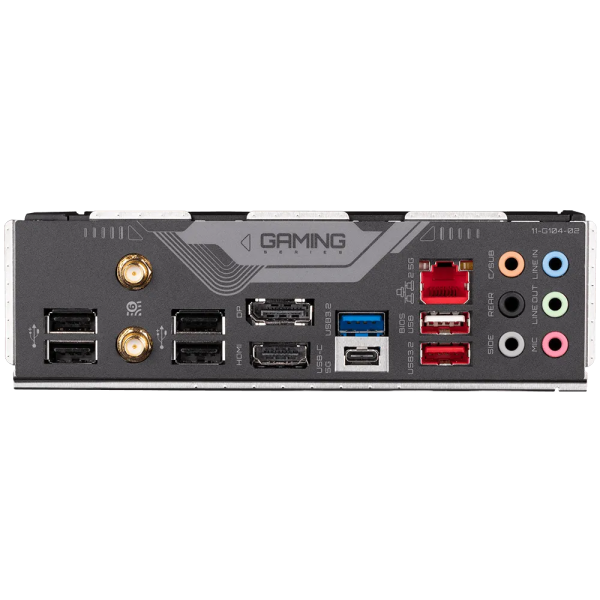

Back Panel Connectors The back or rear panel is the portion of the motherboard that allows you to connect external devices, such as your monitor, speakers, keyboard, mouse etc.
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
6 x audio jacks

Software

Operating System Supports An operating system (OS) is system software that manages computer hardware, software resources, and provides common services for computer programs.
Support for Windows 11/10 64-bit
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Physical

Form Factor The motherboard's form factor indicates the shape and size specifications of the board.
ATX
Dimensions
30.5cm x 24.4cm
