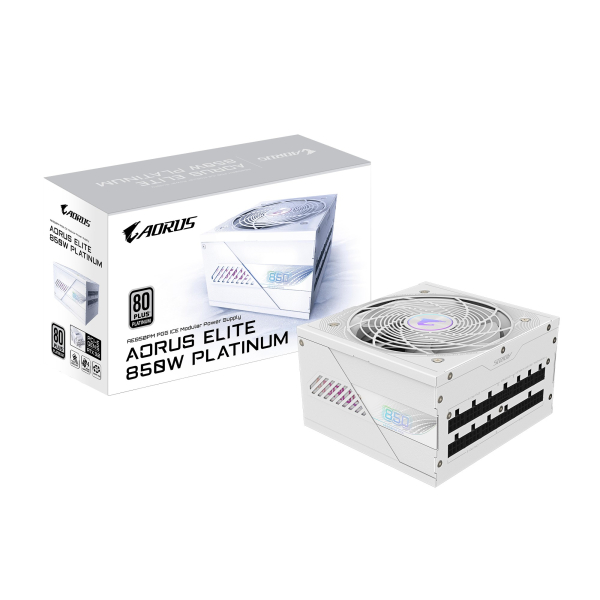

Gigabyte AORUS ELITE 850W 80+ Platinum PCIe 5.0 ATX 3.1 Fully Modular ATX Power Supply Ice

Description

Manufacture: Gigabyte | Model: GP-AE850PM PG5 ICE

The GP-AE850PM PG5 ICE is a high-performance 850W power supply designed to meet the latest Intel Form Factor ATX 12V v3.1 standards. Featuring an 80 PLUS Platinum certification, it ensures up to 92% efficiency at typical loads, reducing power consumption and heat output. With Active PFC and a power factor of over 0.9, it provides stable and reliable power delivery across a wide input voltage range of 100-240V AC. The PSU is equipped with a 120mm Fluid Dynamic Bearing (FDB) fan for efficient cooling and quiet operation. Engineered for longevity, it boasts an MTBF of over 100,000 hours and includes multiple safety protections such as OVP, OPP, SCP, UVP, OCP, and OTP. The power good signal is rated between 100-150ms, while the hold-up time exceeds 16ms. One of its standout features is the sleek, all-white flat cables, which enhance both aesthetics and cable management. Offering a comprehensive range of connectors, including PCI-e, EPS, and SATA, this PSU is an excellent choice for high-performance gaming rigs and professional workstations.

Key Features:

• 850W ATX 12V v3.1 Power Supply
• 80 PLUS Platinum Certified for 92% Efficiency
• Active PFC for Enhanced Power Stability
• 120mm Fluid Dynamic Bearing (FDB) Cooling Fan
• Multiple Protection Mechanisms: OVP, OPP, SCP, UVP, OCP, OTP
• Flat, All-White Cables for Aesthetic and Easy Cable Management
• MTBF of Over 100,000 Hours for Long-Term Reliability
• Power Good Signal: 100-150ms
• Hold-Up Time Greater than 16ms
• Comprehensive Connectivity: ATX, EPS, PCI-e, SATA, and Peripheral
