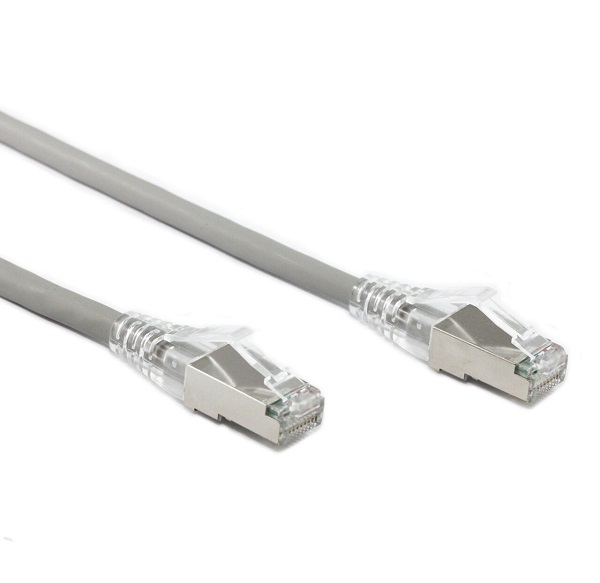

Generic 2.5m Grey Cat6a Sftp Cable Lszh ( Component Test ) (CB-LZC6A-2.5GRY)

Description

Manufacture # Generic | Model # CB-LZC6A-2.5GRY

CAT6A ( CAT6 Augmented ) cable is an ideal solution for 10G network. It supports the higher frequencies required for 10G Ethernet and fully backwards compatible with CAT6 and CAT5e. All of our CAT6A cables are double shielded and fully screened to ensure immunity from Alien Crosstalk and other external interference and are specified up to frequencies of 500Mhz.

SFTP (Screened Foiled Twisted Pair) cabling offer shielding between the pair sets and an overall sheath shield within the 100 Ohm twisted pair cable. This type of shielding protects EMI from entering or exiting the cable and also protects neighboring pairs from crosstalk.

Features:

• Cable features four individually aluminum/Mylar wrapped twisted CB-LZC6A-2.5GRY pairs
• An overall tinned copper braided shield, foamed PE insulation, and a LSZH Jacket.
• 26AWG CB-LZC6A-2.5GRY stranded copper conductors
• Specially designed RJ45 shielded plug with 50u gold-plated contact
• Snagless designed boot provides tab protection.

Overview:

• MPN: CB-LZC6A-2.5GRY
• Brand: Generic
• Product Use: General
• Color: Grey
• Cable type: Network cable

Manufacturer Warranty: 01 Years Limited Warranty
