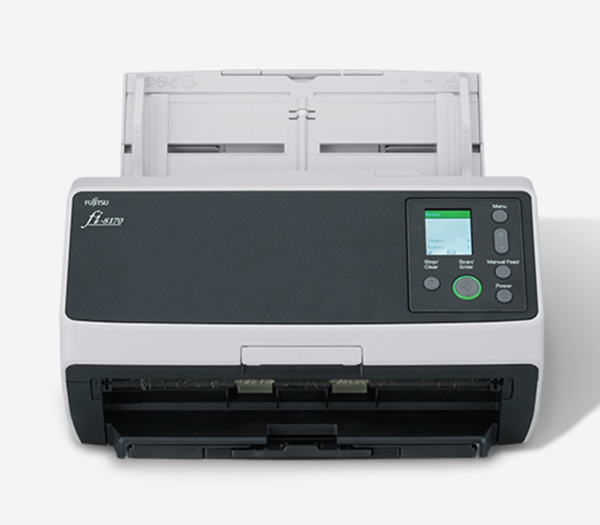

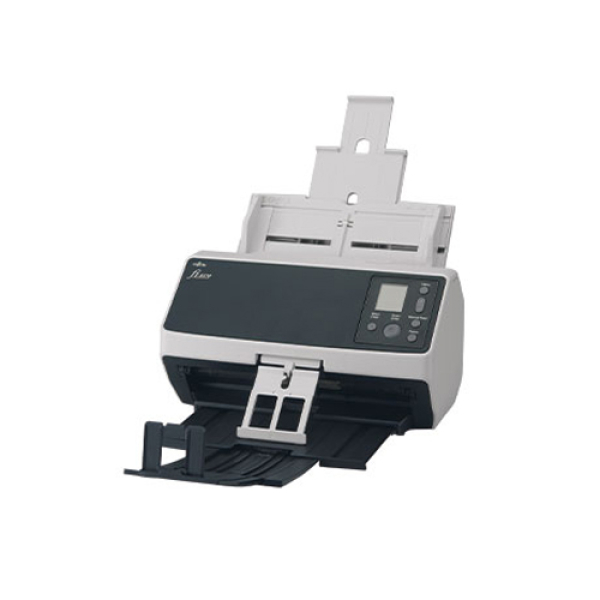

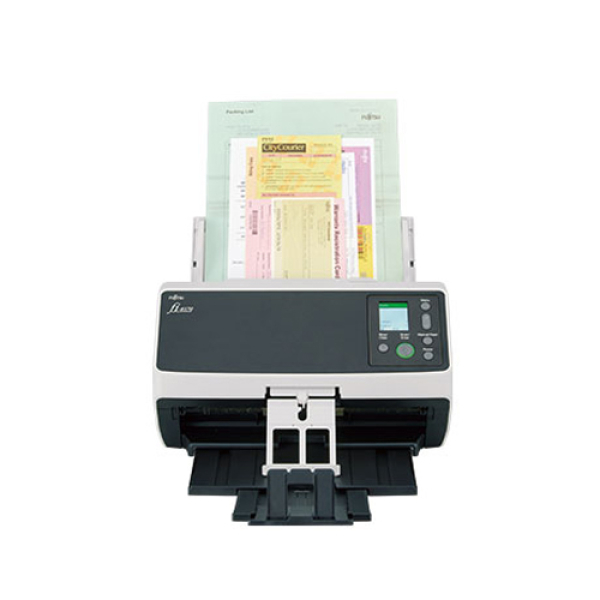

Fujitsu FI-8170 Color Duplex USB Document Scanner

SKU : FI-8170
Brand : Fujitsu
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse
Optical Resolution: 600 dpi, Image Sensor Type: Contact Image Sensor (CIS) x 2, Light Source: RGB LED (Front and Back), Paper Separation Method: Brake Roller, Expected Daily Volume: 10000, Warranty: 01 Year, FI-8170.
Ask a question about this product

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa


  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Fujitsu | Model # FI-8170


The evolution of the market’s leading image scanners, the Fujitsu fi-8000 series delivers state-of-the-art technology designed to address today’s business challenges and drive sustainable value creation.



  • This guarantees feed stability for different document formats and saves users from wasting time sorting different document types into individual batches. It also enables the 100 sheet ADF capacity and higher speeds for more efficient, high-throughput workgroup scanning.
  • The Fujitsu fi-8000 series protects documents from damage using innovative new technology. Patented? Image Monitoring identifies overly skewed documents in real time and halts the scanning process before they can be damaged.
  • The patented? feeding mechanism ensures safe capture of passports with a carrier sheet, while MRZ recognition ensures consistently accurate capture of personal data.
  • This patented? technology is an evolution beyond standard multi-feed detection which stops when anything beyond a single sheet is identified during feed through.
  • Fast boot time and up to 70ppm duplex mean the Fujitsu fi-8170 delivers a highly efficient scanning process for the ultimate in workgroup productivity. Incorporating USB 3.2 and gigabit LAN connectivity also makes rapid file transfer possible.



  • Optical Resolution: 600 dpi
  • Image Sensor Type: Contact Image Sensor (CIS) x 2
  • Light Source: RGB LED (Front and Back)
  • Paper Separation Method: Brake Roller
  • Expected Daily Volume: 10000


Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Scanner Type Automatic Document Feeder (ADF) / Manual Feed, Duplex
ADF Capacity 100 x A4 80 g/m²
100 x Letter 20 lb
Scanning Colour Modes Colour, Greyscale, Monochrome
Automatic (Colour / Greyscale / Monochrome detection)
Optical Resolution 600 dpi
Image Sensor Type Contact Image Sensor (CIS) x 2
Light Source RGB LED (Front and Back)
Scanning Speed (A4 Portrait) Simplex : 70 ppm
Duplex : 140 ipm
Media Support Standard Sizes : A4, A5, A6, B5, B6, Business Card, Post Card, Letter, Legal and Custom Size.

Custom Sizes
Minimum : 48 x 50 mm (1.9 x 2.0")
Maximum : 216 x 355.6 mm
A4 Portrait (210 x 297 mm), Legal (8.5 x 14")
Maximum paper feeding width: 240 mm (9.5")

Manual Feed Paper Sizes : Folded A3, B4, Double Letter and all document sizes listed above.

Paper Sizes with optional Carrier Sheet : A3, B4, Double Letter, Photographs and all document sizes listed above.

Paper Weight : 20 g/m² - 465 g/m²

Long Page Scanning : 6,096 mm (240 ")

Card Scanning : Card with the size specified in ISO7810 (85.6 mm x 53.98 mm)
with a maximum thickness of 1.4 mm

Special Media Types : Passport scanning
(ISO/IEC 7810 ID-3 compliant passport with thickness 7 mm or less when opened)
Multifeed Detection YES
Image Processing Functions Advanced DTC, Automatic Colour Detection, Automatic Profile Selection, Automatic Rotation, Background Pattern Removal, Blank Page Detection, Character Extraction, Cropping, Custom Rotation, De-Screen, De-Skew, Dither, Dropout Colour (None / Red / Green / Blue / White / Saturation / Custom), Dynamic Threshold (iDTC), Edge Fill, Edge Repair, Error Diffusion, Front Back Merging, Halftone, Hole Punch Removal, Image Emphasis, Index Tab Cropping, Multi Image Output, SDTC, Split Image, sRGB Output, Static Threshold, Vertical Streaks Reduction.
Output Filetypes PDF, Searchable PDF, PDF/A, TIFF, Multi-Page TIFF, Bitmap, JPEG, JPEG2000, PNG, Word, Excel, PowerPoint (Varies by application)
Paper Separation Method Brake Roller
Expected Daily Volume 10000
Local Interface USB Port : USB 3.2 Gen 1/ 3.0 / 2.0 / 1.1 (Type-B Connector)
Ethernet Interface Ethernet Specification : 10BASE-T/100BASE-TX/1000BASE-T
Ethernet Port Connector Type : RJ-45
Power Source Mains AC
Power Requirements 100V - 240V AC ±10 % (50 / 60 Hz)
Power Consumption Operating Mode : 28 W or less
17 W (Eco Mode)

Sleep Mode : 2.0 W or less (LAN)
*When the EEE function (Power saving Ethernet) of the AP or router is enabled
1.4 W or less (USB)

Standby ModE : 0.2 W or less
Operating Environment Operating Temperature Range : 5°C - 35°C (41°F - 95°F)
Operating Humidity Range : 15% - 80% (non-condensing)
Device Colour Black / Light Grey
Device Dimensions (Height x Width x Depth) 300 mm x 170 mm x 163 mm
11.8" x 6.7" x 6.4"
Device Weight (approx) 4.0 kg
Environmental & Regulatory Compliance ENERGY STAR / RoHS
Recommended Windows Driver PaperStream IP (TWAIN)
PaperStream IP (TWAIN x64) for 64-bit applications
PaperStream IP (ISIS)
Software PaperStream Capture
PaperStream ClickScan
PaperStream NX Manager (available as download)
Software Operation Panel
Error Recovery Guide
Scanner Central Admin
fi Series Online Update
ABBYY FineReader for ScanSnap (available as download)
