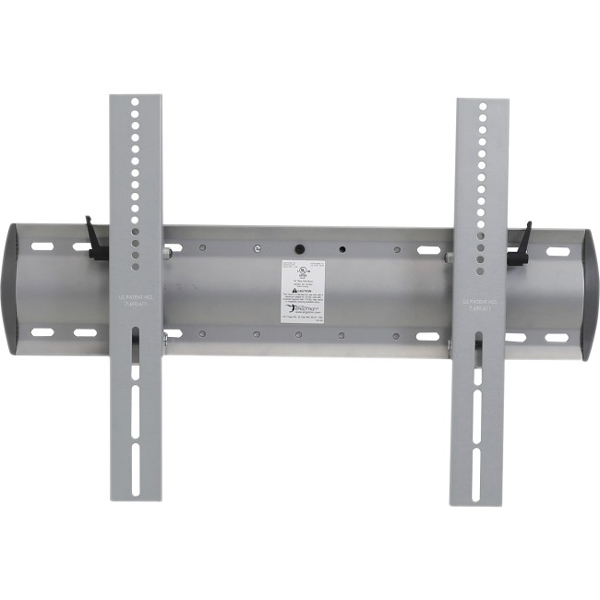

ERGOTRON Tilting Wallmount. Medium Display. 61-143-003

Sku: 61-143-003

Availability: Out of Stock

Brand:

Category: Monitor Brackets

$240.90

ERGOTRON 61-143-003 TM Tilting Wall Mount, Easy Installation, For up to 120" Screens, Capacity up to 175 lbs, Easily tilts, VESA MIS-D/E/F, Mounting Profile 3.5", Integrated security fasteners, Extruded aluminum, and steel, Silver.   The TM is the perfect accessory for large displays or TVs weighing up to 175 lbs (79 kg). Attaching your valuable flat panel investment to a wall can be nerve-racking.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture # Ergotron | Model # 61-143-003



Ergotron 61-143-003 TM is the perfect accessory for large displays or TVs weighing up to 175 lbs (79 kg). Attaching your valuable flat panel investment to a wall can be nerve-racking.



So we took our engineering know-how and created an extremely stable TV wall mount solution that’s easy to install. With its integrated CF motion technology, anyone can effortlessly tilt the screen to the perfect angle.



Features:

  • Tilt your screen with just a light touch or use the integrated tilt lock-down feature to hold it in position
  • Ergotron 61-143-003 Simple three-step installation
  • Protect your investment: Integrated security fasteners hold display in place and deter others from removing your display
  • View in comfort: Cut glare while improving sight lines
  • Fits most ≥ 32" displays up to 175 lbs (79 kg)
  • Includes fasteners for mounting to wood studs or concrete walls



Overview:

  • Brand: Ergotron
  • Model: 61-143-003
  • Product: TM Tilting Wall Mount (silver)
  • Includes: Wall plate, Two display brackets with tilt-lock levers, Hardware fastener kit.




Manufacturer Warranty: 05 Year Limited Warranty

Part Number 61-143-003
Description TM Tilting Wall Mount (silver)
Includes

  • Wall plate

  • Two display brackets with tilt-lock levers

  • Hardware fastener kit
Mounting Holes Must fit within spacing range below: horizontal = 100 mm (min.) to 600 mm (max.); vertical = 100 mm (min.) to 450 mm (max.)
TM, XL Version For displays with horizontal hole pattern of 601–800 mm, order TM, XL version (pt. # 61-142-003)
Premium Construction Composed of extruded aluminum and steel
Mounting Options Wall plate attaches to vertical wall surfaces. Includes hardware for mounting to wood studs (16" centered studs) or concrete walls
TM, XL version If mounting to wall using 24" centered studs, order TM, XL version (pt. # 61-142-003)
Profile off the Wall 3.5" (89 mm)
UL Certified and Listed UL certified and listed to UL Standard 2442. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)
Shipping Dimensions 34.6"W x 12.9"H x 4.3"D (88 x 33 x 11 cm)
Shipping Weight 14 lbs (6.3 kg)
Warranty Five (5) years
