Manufacture # Ergotron |Model # 61-142-003
Ergotron 61-142-003 XL version provides extra width to handle larger displays that use mounting-hole patterns up to 800 mm wide. Attaching your valuable flat panel investment to a wall can be nerve-racking. So we took our engineering know-how and created an extremely stable TV wall mount solution that’s easy to install. With its integrated CF motion technology, anyone can effortlessly tilt the screen to the perfect angle.
Features:
Overview:
Manufacturer Warranty: 05 Year Limited Warranty
| Part Number | 61-142-003 |

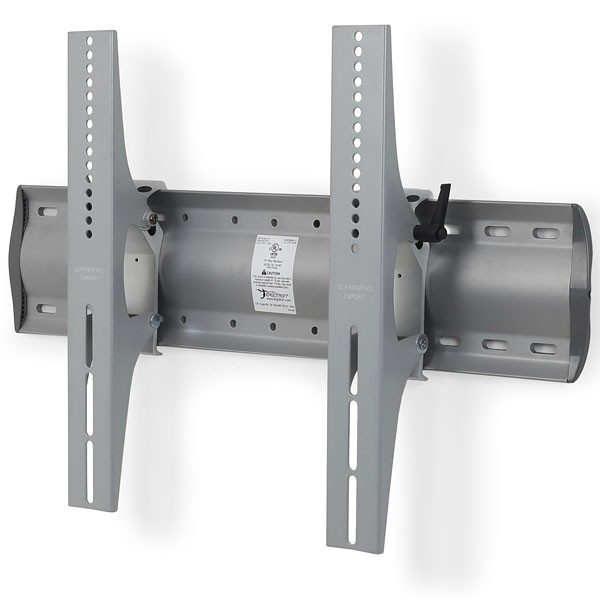

| Description | TM Tilting Wall Mount, XL (silver) |
| Includes |
|
| Mounting Holes | Must fit within spacing range: horizontal = 100 mm (min.) to 800 mm (max.); vertical = 100 mm (min.) to 450 mm (max.) |
| Premium Construction | Composed of extruded aluminum and steel |
| Mounting Options | Wall plate attaches to vertical wall surfaces. Includes hardware for mounting to wood studs (16" or 24" centered studs) or concrete walls |
| Display Tilt | Smooth continuous display tilt range from 15° forward to 5° back |
| Profile off the Wall | 3.5" (89 mm) |
| UL Certified and Listed | UL certified and listed to UL Standard 2442. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use) |
| Shipping Dimensions | 39.5"W x 12.9"H x 4.3"D (100 x 33 x 11 cm) |
| Shipping Weight | 16 lbs (7.3 kg) |
| Warranty | Five (5) years |
