ERGOTRON Styleview Vertical Lift Enclosure With 60-595-062

SKU : 60-595-062
Brand : Ergotron
This product is either discontinued or we cannot get that from suppliers.
ERGOTROn 60-595-062 StyleView VL Enclosure, For up to 22" Screen, Capacity up to 33 lbs, Height adjustment, Easily lifts, and pans, VESA MIS-D, Slide-out mouse tray includes built-in pad surface, Keyboard tray pans left/right, Integrated mouse and scanner holders, locking storage for CPU, Keyless locking mechanism, Cable management, WHITE   Ergotron 60-595-062 is a secure, complete, compact workstation. Perfect for space-constrained patient rooms, the low profile vertical lift provides 9" (23 cm) of smooth height adjustment and folds into a slim, compact unit when not in use.
Ask a question about this product
Call Us

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Ergotron | Model # 60-595-062

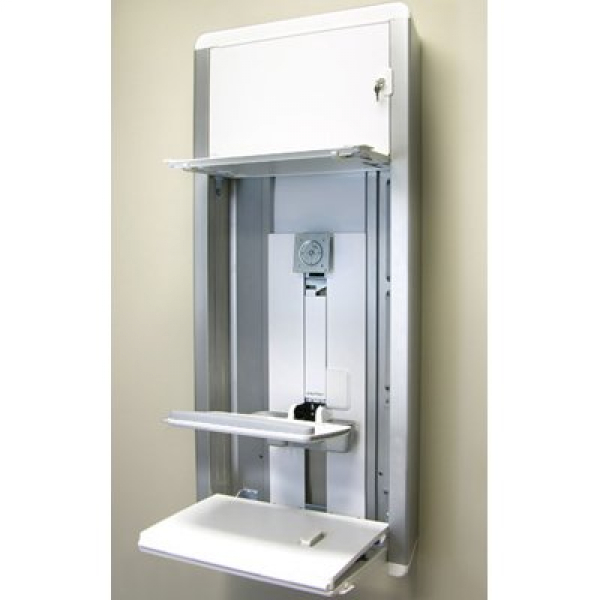

Ergotron 60-595-062 is a secure, complete, compact workstation. Perfect for space-constrained patient rooms, the low profile vertical lift provides 9" (23 cm) of smooth height adjustment and folds into a slim, compact unit when not in use. Its keyless locking mechanism protects patient data for compliance with privacy requirements. The slide-out, negative-tilt keyboard tray enhances user comfort, and the panning capability of the monitor and keyboard promotes patient-caregiver interaction. A unique cable management system conceals and organizes cords, making cleaning a snap.



Features:

  • Nine-inch (229 mm) vertical adjustment of monitor and keyboard in tandem enhances ergonomics for multiple users
  • Ergotron 60-595-062 Slide-out keyboard tray extends an extra 5" (125 mm) and pans for comfortable data entry
  • Ergonomic negative-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry
  • Patented counterbalance system provides smooth adjustment while maintaining touch-screen stability
  • Low profile - only 6.75" (17.2 cm) deep - and narrow width make it perfect for space-constrained areas
  • Easy to use: Quick, simple 4-step installation and effortless operation
  • The advanced open-architecture design supports future hardware upgrades
  • Cable management system conceals and organizes wires and cords
  • Extremely easy to clean; promotes infection control
  • Attractive design; hides clutter associated with computer equipment.



Overview:

  • Brand: Ergotron
  • Model: 60-595-062
  • Product: StyleView VL Enclosure
  • Pan: Monitor pans left/right ±5° (based on typical 17" monitor; will vary with monitor size)



Manufacturer Warranty: 05 Years Limited Warranty

Technical Specifications

Part Number 60-595-062
Description StyleView VL Enclosure (white and aluminum)
Includes
  • Wall plate

  • Mounting template

  • Enclosure

  • Vertical lift

  • Slide-out keyboard tray

  • Wrist rest

  • Mouse pouch

  • Scanner holder

  • Internal cable management

  • Batteries

  • Monitor mounting hardware

  • Wall mounting hardware

  • Keys

Installation Easy 4-step installation: 1. Attach wall plate using template; 2. Hang enclosure; 3. Install computer; 4. Set keyless security code
Weight Capacity Listed weight capacity represents total load on Vertical Lift engine, including the monitor and contents of keyboard tray, mouse pouch and scanner holder. Maximum load capacity: monitor pivot = 18 lbs (8.2 kg); CPU compartment = 20 lbs ( 9.1 kg); door/worksurface = 50 lbs (22.6 kg)
Pans Monitor pans left/right ±5° (based on typical 17" monitor; will vary with monitor size)
Vertical Adjustment Nine inches (229 mm) of vertical adjustment ergonomically accommodates user heights ranging from the 5% female height to the average male height
Mouse Tray Slide-out mouse tray includes built-in pad surface
Keyboard Tray
  • Negative-tilt keyboard tray is adjustable 0° to -10°; folds up flat when stored

  • Keyboard tray pans left/right up to 120°

Mouse and Scanner Holder Integrated mouse and scanner holders
Cable Access Cable access openings allow cables to pass through top and bottom of enclosure
CPU Compartment CPU compartment is top-vented for maximum CPU heat dissipation
Open-back Design Open-back design allows wall outlets and other ports to be contained within boundary of enclosure
Accommodates Accommodates most small form factor and ultra small form factor CPUs
Maximum CPU Physical Dimensions 13.75" W x 12.75" H x 3.75" D (34.9 x 32.4 x 9.5 cm)
Maximum Monitor Physical Dimensions 20.7" W x 14.7" H x 2.75" D (52.6 x 37.3 x 7.0 cm)
Mounting Standards VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
VESA Hole Pattern VESA hole pattern should be on center on back of monitor
Plastic/Polycarbonate Components Plastic/polycarbonate components are compliant with the surface flame spread and smoke development requirements from the NFPA 101 Life Safety Code interior wall finish requirements
Product Dimensions 60.6" x 27.2" x 6.75" (closed) or 20.6" (open) (154 x 69 x 17 or 53 cm)
Shipping Dimensions 65" x 31" x 11.5" (1651 x 787 x 292 mm)
Shipping Weight 97 lbs (44.1 kg)
Warranty Five (5) years; One (1)-year warranty on all electronic components (excludes AA batteries)
