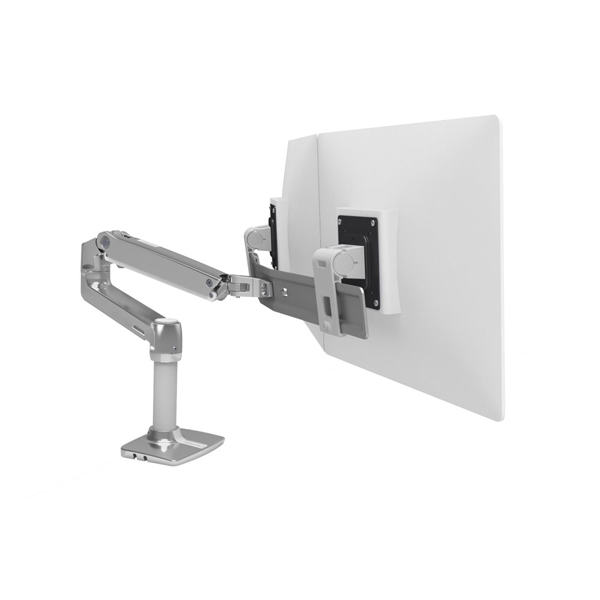

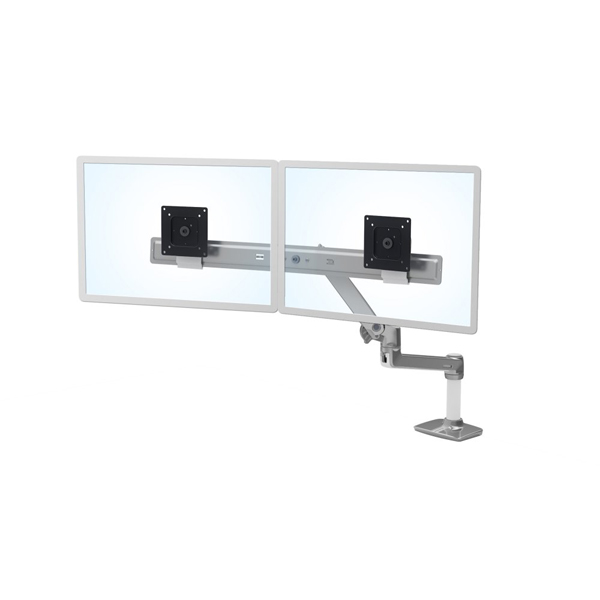

Ergotron 45-489-026 LX Desk Dual Direct Arm, For up to 25" Screens, Capacity up to 22 lbs/Display, Easily lifts, tilts, pans, and rotates, VESA MIS-D 75/100mm, Streamline cable management, Steel and Plastic, POLISHED ALUMINUM
Find your best view, save desk space and discover your most productive self, thanks to the LX Desk Dual Direct Arm.
We Accept
Manufacture # Ergotron |Model # 45-489-026
Ergotron 45-489-026 creates a fully adjustable side-by-side monitor configuration that lifts both LCD screens simultaneously to where they’re easier to see while reclaiming valuable desktop space. Reposition your LCDs with just a touch. Up. Down. Forward. Back. The low–profile crossbow allows monitors to move simultaneously with ease. Monitors pivot up and down independently providing a compact range of motion and optimal monitor alignment.
Features:
Overview:
Manufacturer Warranty: 10 Years Limited Warranty
| Part Number | 45-489-026 |
| Description | LX Desk Dual Direct Arm (polished aluminum) |
| Cable Management | Streamline cable management that routes cables under arm and within extension |
| Portrait/Landscape | Portrait/landscape rotation with lockout |
| Handle | Handle for Dual Direct Arm available as an accessory (98–037–062) |
| Mounting Standards | VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Grommet Mount | Attaches through hole 5/16" to 2" (7–51 mm) wide and up to 3" (80 mm) thick |
| Weight Capacity | Maximum individual LCD weight = 2–11 lbs (1–5 kg) per monitor. Total weight capacity = 4–22 lbs (1.8–9.9 kg) |
| Note | If installed on WorkFit-T or WorkFit-TL, maximum allowable individual monitor weight is reduced to 4.8 lbs (2.2 kg). A separately order Grommet Mount (98-017) is required for attachment |
| Tilt Range | 15° backward, 15° forward |
| Extended Reach | Up to 24.3" (61.7 cm) |
| Vertical Height Adjustment | 13" (33 cm) vertical height adjustment with total monitor weight less than 17 lbs (7.7 kg). If total monitor weight greater than 17 lbs (7.7 kg), the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm) |
| Maximum Outside Width of Display | Maximum outside width of display is 25.1" (63.8 cm) when displays are 1.8" (4.8 cm) thick; 24.8" (63 cm) wide when monitor is 2.6" (6.6 cm) thick. Accommodates most displays with screen–size up to 25" as well as some displays with screens as large as 27". Actual allowable width of displays will vary slightly depending on display thickness |
| Shipping Dimensions | 32.8" x 13" x 7" (83 x 33 x 18 cm) |
| Shipping Weight | 15.5 lbs (6.6 kg) |
| Warranty | Ten (10) years |
