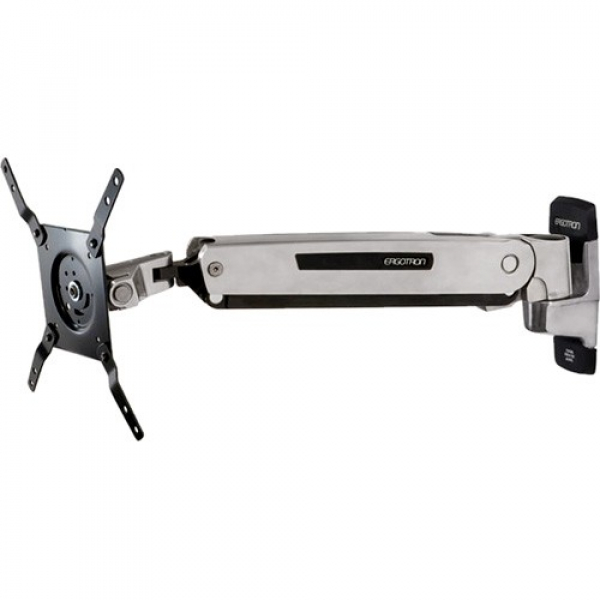

ERGOTRON Interactive Arm Ld 45-361-026

Description

Manufacture # Ergotron |Model # 45-361-026

Accommodate the active TV positioning needs of today and tomorrow. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 15-inch (38 cm) motion adjustment to either side.Lift, swing or turn your TV/display! Position the screen to relieve eye, neck and back strain. Equipped with patented Constant Force™ technology, the arm provides fluid, light-touch adjustments for effortless TV/display movement.

Features:

• 20-inch (51 cm) height range allows users to move between sitting and standing positions while they interact with the display
• Extends LCD up to 17" (43 cm); push your display out of the way when not in use
• The revolutionary design allows interaction with your TV by moving the screen to where you want it when watching movies, gaming, exercising and more
• Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions
• Patented CF motion technology provides premium ease-of-use adjustment
• Cable management clips on the underside of the arm route and hide wires
• Ideal for space-constrained spaces—folds to within 4.5" (11 cm) of wall in storage position
• Secure installation—locking connection between arm and base
• Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment

Overview:

• Color- POLISHED ALUMINUM (Silver)
• Interactive Arm, LD, Light Duty (polished aluminum)
• Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray accessory (50-193-200)
• Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
• Weight Capacity: 7 to 25 lbs (3.1 to 11.3 kg)
• † Monitor tilts 70° up and 5° down
• Rotation Stop on wall-mount base limits turn of arm-base connection to 180°, preventing arm from contacting wall*
• Locking connections between arm and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
• ‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
• Mounting Options: Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Plate, or to Wall Track using bracket (97-091, order separately)
• Base includes theft-deterrent anchor holes for cable locks
• NOTE: Displays mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights

Includes:

• Interactive Arm
• Wall-Mount Base
• VESA brackets

Manufacturer Warranty: 05 Year Limited Warranty
