Sku: 45-478-026
Brand:
Category: Monitor Brackets
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find

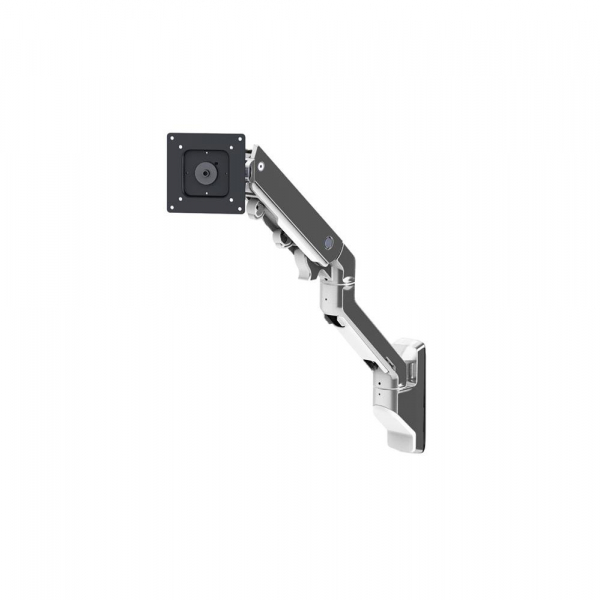

ERGOTRON 45-478-026 HX Wall Monitor Arm, For up to 49" Screen, Capacity up to 42 lbs, Easily lifts, tilts, pans, and rotates, Vesa MIS-D/E/F, Portrait/landscape rotation with lockout, Streamlined cable management, POLISHED ALUMINUM
With the HX Wall Monitor Arm, you can reposition large monitors using patented Constant Force™ Technology. It enhances your workspace with a sleek design, and an optional dual or triple monitor bow kit ups your screen count and productivity.
We Accept
Manufacture # Ergotron |Model # 45-478-026
Choose a monitor arm that’s as adaptable as you. With the HX Wall Monitor Arm, you can reposition large monitors weighing up to 42 lbs (19.1 kg) using patented Constant Force™ Technology. It enhances your workspace with a sleek design, and an optional dual or triple monitor bow kit ups your screen count and productivity. It’s BIFMA level® 2 certified based on the arm’s low environmental and social impact.
Features:
Overview:
Includes:
Manufacturer Warranty: 10 Years Warranty
| Part Number | 45-478-026 |
| Color | POLISHED ALUMINUM |
| Includes | Arm, Extension, Monitor Pivot, Wall Mount, Mounting Hardware |
| Description | HX Wall Monitor Arm |
| Screen | ≤49" |
| Capacity | 20–42 lbs 9.1–19.1 kg § |
| Lift | 11.5" 29.2 cm |
| Tilt | 75° † † (Tilt Range: 70° backward, 5° forward) |
| Pan | 180° |
| Rotation | 360° |
| VESA | MIS-D/E/F ‡ |
| Note | To use this arm with the ultra-wide, curved Samsung 49" Odyssey G9, the accessory HX Heavy-Duty Tilt Pivot is required. See Tech Specs. |
| Mounting Standards | VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm, or 400 x 400 mm |
| Mounting Options | Attaches directly to sturdy vertical surfaces. Where applicable, apply to wood stud. Also attaches to wall track using bracket 97-091 (order separately) |
| Warranty | TEN(10) years |
