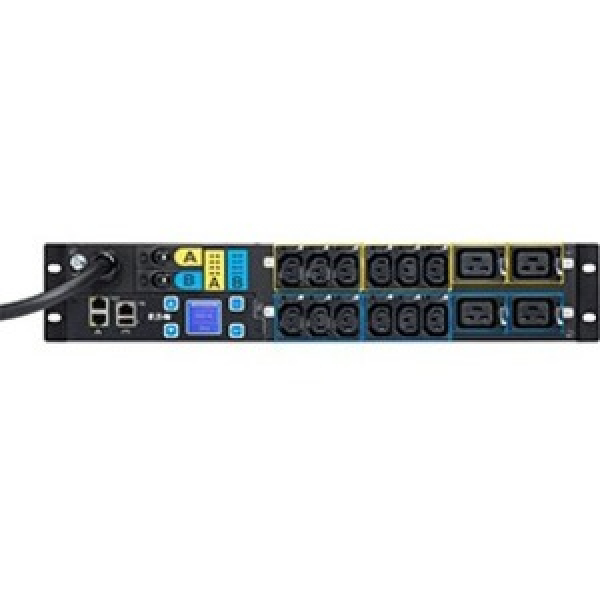

    Eaton Power Distribution Unit (EMAH06)

Eaton Power Distribution Unit (EMAH06)

SKU : EMAH06
Brand : EATON
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered
Input Voltage: AC 230 V, Input Wiring: 1-phase, Frequency Required: 50 Hz, Circuit Protection: Circuit breaker, Interfaces: 1 x management (Ethernet) - RJ-45, 1 x management (RS-232) - RJ-45, 1 x cascading, 1 x sensor, Cables Included: Power cable - integrated - 3 m.   The Eaton ePDU third generation (G3) Managed models build on Eaton’s existing state-of-the-art ePDU G3 technology while offering new capabilities for rack power distribution in data centers and information technology (IT) applications.
Ask a question about this product
$2,089.00

Estimated Shipping

Pickup when available
Delivery when available

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Eaton  | Model # EMAH06



The Eaton ePDU third generation (G3) Managed models build on Eaton’s existing state-of-the-art ePDU G3 technology while offering new capabilities for rack power distribution in data centers and information technology (IT) applications. You now have comprehensive management and monitoring capabilities down to the outlet level. This new level of precision saves time, saves money and avoids risk, making the ePDU G3 Managed the gold standard in power management.



Features:

  • When connecting multiple EMAH06 source input servers to an A and B feed power source
  • The daisy-chain capability allows you to group power supplies across
  • Secure and protect your environment by easily turning off unused outlets
  • Avoid overloading your system from others plugging in unauthorized devices
  • Eaton’s EMAH06 patent-pending IEC outlet grip secures plugs in place with a lever-actuated grip
  • The plugs are secured from accidental disconnect due to bumps or vibrations.



Overview:

  • Device Type: Power distribution unit - rack-mountable
  • Height (Rack Units): 2U
  • Cord Length: 3 m
  • Input Voltage: AC 230 V
  • Input Wiring: 1-phase
  • Frequency Required: 50 Hz



Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Device Type Power distribution unit - rack-mountable
Height (Rack Units) 2U
Cord Length 3 m
Input Voltage AC 230 V
Input Wiring 1-phase
Frequency Required 50 Hz
Input Connectors 1 x power IEC 60309 32A
Power Output Connectors Details 12 x power IEC 60320 C13
4 x power IEC 60320 C19
Max Electric Current 32 A
Circuit Protection Circuit breaker
Remote Management Interface Ethernet 10/100, RS-232
Remote Management Protocol SNMP, Telnet, HTTP, HTTPS, TFTP
Interfaces 1 x management (Ethernet) - RJ-45
1 x management (RS-232) - RJ-45
1 x cascading
1 x sensor
Cables Included Power cable - integrated - 3 m
Features Current meter, digital voltmeter, active power meter, real power meter, energy meter
Packaging Recycled Content 100 %
Compliant Standards REACH, ISO 9001:2008, ISO 14001:2004, IEC 60950-1 Second Edition, EN 60950-1:2006+A11:2009+A1:2010+A12:2011, EN55022:2010, EN55024:2010, IEC 61000-6-2:2005, RoHS 2011/65/EU, EN50581:2012, WEEE 2012/19/EU, EN 61000-6-4:2007+A1:2011
Service & Support Limited warranty - 2 years
Min Operating Temperature 0 °C
Max Operating Temperature 60 °C
Width 44.5 cm
Depth 22.5 cm
Height 8.7 cm
