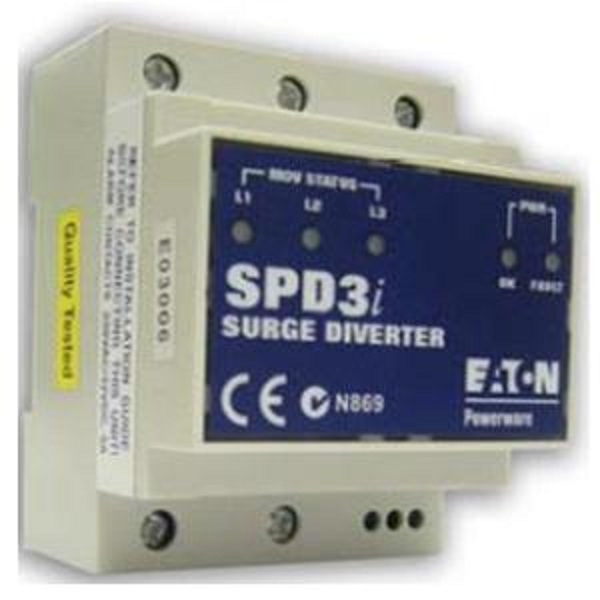

Eaton 3ph60ka2moden-e&l-esurge Divert SPD360GI

Brand : EATON

SKU : SPD360GI

Availablity : Pre Order

Patented SPD360GI MTMOV technology
( Failsafe thermal disconnect )
SPD360GI UL1449 ed3 Type 4 components
60kA, 2 mode, L-E and N-E

The SPD360Gi is designed to protect three phase power systems against damage from surges and spikes caused by lightning and other electricalsources. The unit is intended for point of entry or main board protection.

Ask a question about this product

$360.00

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications

Product Description

Manufacture # Eaton | Model # SPD360GI

Features:

Patented SPD360GI MTMOV technology
( Failsafe thermal disconnect )
SPD360GI UL1449 ed3 Type 4 components
60kA, 2 mode, L-E and N-E
UL94-V0 ABS din rail mount housing
Din 43880 form factor 4 din wide
Dry contact alarm
LED visual indicators for protection,
power and fault conditions.

Overview:

Method of mounting: Fixed. DIN Rail mount
Input voltage – Uc: 380-480vac 3P
Maximum continuous voltage –MCOV: 320 L-N
Temporary overvoltage - TOV: 350VAC L-N, 15 mins

Manufacturer Warranty: 05 Years Limited Warranty

Technical Specifications

Dimensions (H x W x D, mm)	90 x 70 x 58
Weight (g)	200
Warranty	5 years, workmanship and materials
Installation instructions	Supplied with unit
Number of ports	1 Port
Method of mounting	Fixed. DIN Rail mount
Input voltage	380-480vac 3P
Maximum continuous operating voltage (MCOV)	320 L-N
Temporary overvoltage - TOV	350VAC L-N, 15 mins
Service Type	TT, TN, TN C-S 3 phase system with a grounded neutral.
Test classification (IEC61643-11)	Class II
Protection modes	Line-Earth, Neutral-Earth
Inom 8/20us (Line-Neutral). Nominal surge life.	30kA
Imax 8/20us (Line-Neutral). Maximum surge level.	50kA
Residual voltage (Vpl) (Line-Neutral). (Let through voltage)	<1100v (3kA, 8/20us, ( IEC61643-11)
Safety disconnect	Series thermal fusing on MOV’s
External disconnector requirement	Max 125A HRC fuse
Terminations	Power 16mm²
Alarms/indicators	5 LED display, dry contact alarm relay output – 250VAC/32VDC, 5A, 5kV isolation
Enclosure rating	IP20
Design standards	IEC61643-11, ANSI/IEEE C62.41 Cat A & B, AS1768-2007 Cat A & B, UL1449ed3 type 4
Environment	-10 to 60°C, 0 to 95%RH (non-condensing)
