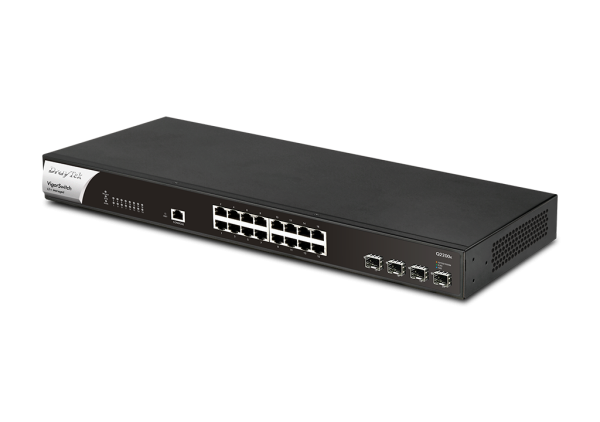

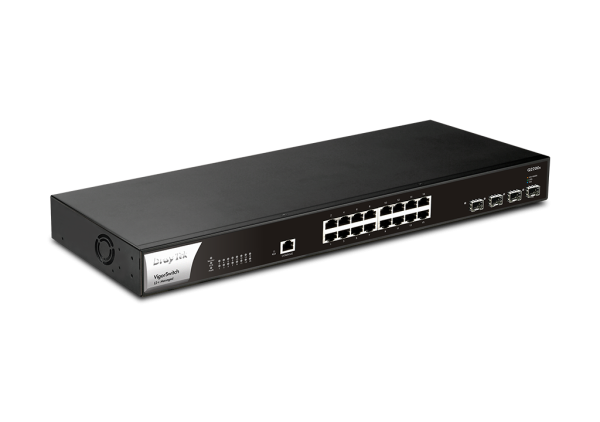

DrayTek Vigor Q2200X 16 Port 2.5 GbE and 4 Port 10Gbps SFP+ Switch

SKU : DSQ2200x
Brand : DrayTek
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Console Port: 1 x RJ-45, Factory Reset Button: 1, Buffer Size: 12 Mbit, Switching Capacity: 166 Gbps, MAC Address Table: 16k, Jumbo Frame: Up to 10KB, 02 Years Limited Warranty, DSQ2200x.
Ask a question about this product

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa


  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # DrayTek Vigor | Model # DSQ2200x


When configured with WiFi6 VigorAPs VigorSwitch Q2200x can bring full WiFi 6 capability and features to LAN clients. Furthermore, it supports advanced Layer 3 features, DHCP Server, and VLAN Routing, to improve network efficiency and ensure that the LAN network continues to work even if the gateway is offline. Therefore, this switch is well placed to be the core switch in most SME/SMB networks.



  • Provides higher performance to WiFi 6 AP and other Ethernet devices.
  • Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.
  • Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.
  • Improve overall network performance by using VigorSwitch Q2200x to route the inter-VLAN traffic directly and offload the router.
  • Recognise traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritisation.
  • VigorSwitch Q2200x supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
  • Improve the performance of critical traffic by prioritising it with CoS, DSCP, and IP Precedence tag.


  • Console Port: 1 x RJ-45
  • Factory Reset Button: 1
  • Buffer Size: 12 Mbit
  • Switching Capacity: 166 Gbps
  • MAC Address Table: 16k
  • Jumbo Frame: Up to 10KB


Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Interface :-
LAN Port 16 x 10/100/1000/2500Mbps Ethernet, RJ-45
4 x 1000Mbps/10Gbps SFP+ slot
Console Port 1 x RJ-45
Factory Reset Button 1
Capacity :-
Buffer Size 12 Mbit
Switching Capacity 166 Gbps
Forwarding Rate 119.04 Mpps (64 bytes)
MAC Address Table 16k
Jumbo Frame Up to 10KB
L3 Routing Table 6k static route + 512 prefix route
Networking Standards :-
IP Version IPv4, IPv6
Ethernet Standards 802.3u 100Base-T
802.3ab 1000Base-T
802.3bz 2.5GBase-T
802.3ae 10GBase-X
802.3x Flow Control
802.3 Auto-Negotiation
802.1q Tag-based VLAN
802.1p Class of Service
802.1d STP
802.1w RSTP
802.1s MSTP
802.3ad LACP
802.1ad QinQ
802.1x Port Access Control
802.1AB LLDP
802.3az EEE
VLAN :-
Max.Number of VLAN 256
VLAN Type 802.1q Tag-based
Management VLAN
Voice VLAN
Surveillance VLAN
802.1x Guest VLAN Yes
Port Isolation Yes
Q-in-Q Basic
ONVIF Surveillance :-
Discovery Yes
Surveillance Topology Yes
Real-Time Video Streaming Yes
ONVIF Device Maintenance Device Info, Reset Factory Default, Time Settings, Reboot
QoS :-
Number of QoS Queues 8
Queue Scheduling SPQ, WRR
CoS (Class of Service) 802.1p CoS, DSCP, CoS-DSCP, IP Precedence
Rate Limit & Shaping Yes
Security :-
Access Control List MAC, IPv4, IPv6
Storm Control Broadcast, Unknown Multicast, Unknown Unicast
DoS Defense Yes
802.1x Port Access Control Yes
IP Source Guard Yes
IP Conflict Detection Yes
IP Conflict Prevention Yes
Loop Protection Yes
Dynamic ARP Inspection Yes
DHCP Snooping with Option 82 Yes
Link Aggregation :-
Max. Number of Group 8
Max. Number of Member in Each Group 8
Type Static, LACP
Traffic Load Balancing MAC Address, IP/MAC Address
Multicast :-
IGMP Snooping v2, v3(BISS)
IGMP Querier Yes
MLD Snooping v1, v2 (Basic)
Max. Number of Multicast Group 256
Group Throttling Yes
Group Filtering Yes
MVR (Multicast VLAN Registration) Yes
Layer 3 Features :-
Static Route Yes
VLAN Route Yes
DHCP Server Yes
AAA :-
Authentication Server RADIUS, TACACS+
Port Authorization Yes
Management Account Yes
RADIUS Attribute Assignment User Privilege, VLAN
Accounting Yes
Multiple Server Yes
Management :-
Web Interface HTTP, HTTPS
Command Line Interface Telnet, SSH v2
OpenVPN Client Certificate-based authentication
User Authentication Local Database, RADIUS, TACACS+
sFlow Yes
SNMP v1, v2c, v3
Private MIB Yes
RMON Group 1, 2, 3, 9
LLDP LLDP-MED, Media Endpoint Discovery Extension
Mail Alert Port Status, Port Speed, System Restart, IP Conflict
Syslog Yes
2-Level Admin Privilege Yes
Multiple Admin Accounts Yes
Managed by Vigor Router SWM Yes
Managed by VigorConnect Yes
Managed by VigorACS 3 Yes
Config File Export/Import Yes
Dual Image Yes
SNTP (Simple Network Time Protocol) Yes
Diagnostics Tools Port Mirroring, Ping, Cable Test
Physical :-
19-inch Rack Mountable Mouting Kit Included
Power Input AC 100-240V @ 0.9A
Max. Power Consumption 45 watts
Dimension (mm) 440(W) x 205(D) x 44(H)
Weight 2.8 kg (6.0 lb)
Operating Temperature 0 to 50°C
Storage Temperature -20 to 70°C
Operating Humidity 10 to 90% non-condensing
Storage Humidity 5 to 90% non-condensing
