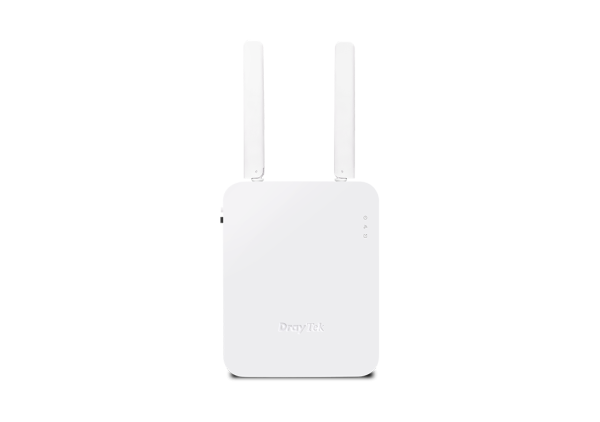

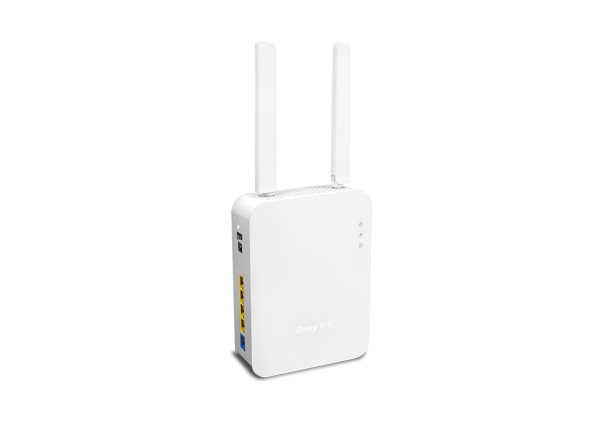

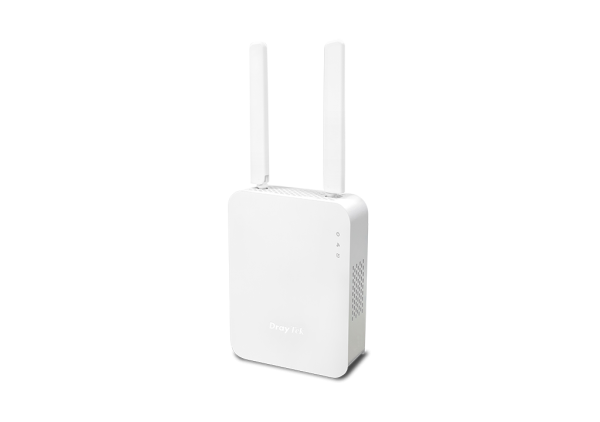

DrayTek Vigor 906 802.11ax Wi Fi 6 High Performance Wireless Router

SKU : DAP906
Brand : DrayTek
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered or available for pick up from our Seven Hills, NSW warehouse
PoE: 802.3at (in), 2.4GHz Link Rate: Up to 574 Mbps, 5GHz Link Rate: Up to 2402 Mbps, MAC Address Filter: Up to 256 entries, Operating Mode: AP, Mesh Root, Mesh Node, 02 Years Limited Warranty, DAP906.
Ask a question about this product

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa


  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # DrayTek | Model # DAP906


The DrayTek VigorAP 906 is a dual-band 802.11ax wireless Access Point suitable for high-density environments where a large number of concurrent Wi-Fi connections need to be supported, such as in classrooms, conferences, offices, public events, etc.2×2 MU-MIMO and Beamforming features provide excellent Wi-Fi connectivity with a maximum of 3 Gbps aggregated link data rate.



  • Simplify the infrastructure by getting data and power through a single cable.
  • Schedule Wi-Fi On and Off to control wireless access and save energy.
  • User profile database for local and external 802.1x authentication.
  • Market your business and communicate with the guests while offering hospitality WLAN. Learn more
  • Manage, maintain, and monitor VigorAP 906 from the DrayTek routers. Learn more
  • Easily link to other VigorAP to expand the wireless network. Learn more


  • PoE: 802.3at (in)
  • 2.4GHz Link Rate: Up to 574 Mbps
  • 5GHz Link Rate: Up to 2402 Mbps
  • MAC Address Filter: Up to 256 entries
  • Operating Mode: AP, Mesh Root, Mesh Node


Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Interface :-
LAN Port 5x 10/100/1000M Base-T, RJ-45 (1x PoE)
PoE 802.3at (in)
Antenna 2x External Dipole Dual-Band
Gain: 2.5 dBi for 5GHz, 2.7 dBi for 2.4GHz
Button 1x Factory Reset Button
1x Wireless On/Off/WPS
1x Power On/Off
WLAN :-
WiFi 6 Yes
2.4GHz Standard IEEE 802.11b/g/n/ax 2×2 MIMO, up to 1024-QAM
5GHz Standard IEEE 802.11a/n/ac Wave 2/ax 2×2 MU-MIMO, up to 1024-QAM
2.4GHz Link Rate Up to 574 Mbps
5GHz Link Rate Up to 2402 Mbps
Max. Number of Concurrent Active Clients 254 (127 per radio band)
Operating Mode AP, Mesh Root, Mesh Node
Roaming AP-Assisted Roaming, PMK-Caching, Pre-Authentication
AirTime Fairness Yes
Band Steering Yes
Auto Channel Selection Yes
Max. Number of SSID 8 (4 per radio band)
Client Numer Limit Per radio, Per SSID
Connection Time Control Yes
IGMP Snooping Yes
Security :-
Security Mode WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None
Authentication Personal, Enterprise
Hidden SSIDs Yes
MAC Address Filter Up to 256 entries
Wireless Client Isolation Yes
Mobile Device Management Yes
Application :- Yes
Built-in RADIUS Server Yes
Hotspot Web Portal Yes
DHCP DHCP Server, DHCP, Client, DHCP Relay Agent
Static IP Yes
MAC Clone Yes
802.1q VLAN Yes
Schedule Auto-Reboot, Wi-Fi Up/Down, LED On/Off
Management :- Yes
Local Service HTTP, HTTPS, Telnet
Configuration Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root
Firmware Upgrade HTTP, TFTP, TR-069
Tools Speed Test, AP Discovery, Statistics, Interference Monitor
Configuration Backup and Restore Yes
Syslog Yes
Mail Alert Yes
SNMP v2, v2c, v3
Managed by VigorACS Yes
Central AP Management 30 VigorAP
Physical :-
Environment Indoor
Mounting Ceiling Mount, Wall Mount, Desktop
Power Method 12VDC, 1.5A
Max. PoE Output 48-56V, 0.4A
Max. Power Consumption 17.3 watts
Dimension 194mm x 155mm x 50mm
Weight 680g
Operating Temperature 0 to 45°C
Storage Temperature -25 to 70°C
Operating Humidity 10 to 90% non-condensing
