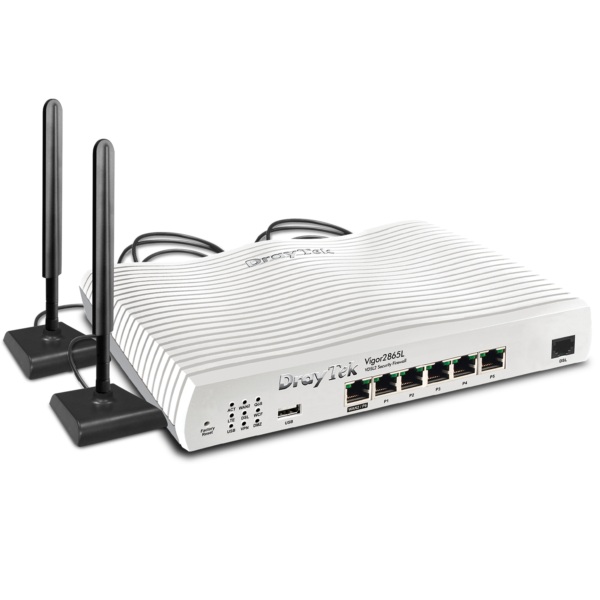

DrayTek Vigor 2865L VDSL2 35b 4G-SIM Slot 5x GbE LAN Router

SKU : DV2865L
Brand : DRAYTEK
Availablity : on order
6 to 8 weeks Delivery Time Due To Covid 19
Fixed WAN Port: 1x RJ-11 for VDSL2 35b or ADSL2/2+, LAN/WAN Switchable Port: 1x 10/100/1000Base-TX RJ-45, Fixed LAN Port: 5x 10/100/1000Base-TX RJ-45, USB Port: 1x USB 2.0, LTE Antenna: 2x External Dipole, Gain: 3 dBi, 2.4G WLAN: 802.11n 2x2 MIMO 400Mbps (ac model), 5G WLAN: 802.11ac Wave 2 2x2 MU-MIMO 867Mbps (ac model), NAT Throughput: 800 Mbps, SSL VPN Performance: 130 Mbps, LTE Category: 6, Max. Data Rate: 300 Mbps downlink, 50 Mbps uplink, Wireless WAN: 2 (ac model), Load Balancing: IP-based, Session-based, Connection Detection: ARP, Ping, VLAN: 802.1q Tag-based, Port-based, Warranty: 02 Years
Ask a question about this product
$870.00

Estimated Shipping

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Draytek | Model # DV2865L



Vigor2865 LTE Series is a VDSL2 35b/ADSL2+ firewall router with embedded 4G/LTE connectivity, making it ideal for SMB/Branch office where Internet connection is the core of business continuity, or new business locations that wired connection is yet to be available.



It has 1 x RJ-11 WAN port for VDSL2/ADSL2+ (including profile 35b Super Vectoring), 1 x GbE WAN/LAN switchable port, 2 x embedded SIM slots supporting LTE Cat 6 (1 SIM online at a time), and 1 x versatile USB port for additional 4G/LTE connection or other applications. All these WANs together provides robust load-balancing/failover functionality.



The series includes models without wireless LAN and with built-in 802.11ac Wave 2 wireless LAN. It also offers other professional features including QoS, High Availability, Route Policy, SPI Firewall, Content Filtering and more. It can act as the controller to manage other VigorAP and VigorSwitch in LAN, or register to VigorACS for cloud-based management.



Overview:

  • Fixed WAN Port: 1x RJ-11 for VDSL2 35b or ADSL2/2+
  • LAN/WAN Switchable Port: 1x 10/100/1000Base-TX RJ-45
  • Fixed LAN Port: 5x 10/100/1000Base-TX RJ-45
  • SIM Slot: 2x Standard-Sized (1 SIM online at a time)
  • USB Port: 1x USB 2.0
  • LTE Antenna: 2x External Dipole, Gain: 3 dBi



Manufacturer Warranty: 02 Years Limited Warranty



Vigor2865 LTE Series

Cat.6 4G LTE and VDSL2 35b/Ethernet Security Firewall Routers

Multi-WAN routers with a Cat.6 4G LTE modem & 2 x SIM card slots, 1 x VDSL2 35b/ADSL2+ modem, 1 x configurable GbE WAN/LAN port, 5 x GbE LAN ports, SPI Firewall, 802.11ac, and 32 x VPN tunnels including 16 x SSL-VPN tunnels

Cat.6 4G LTE and VDSL2 35b Supervectoring Security Routers for SMB


Vigor2865Lac

The Vigor2865 LTE series are VDSL2 35b/ADSL2+ firewall routers with embedded 4G LTE connectivity, making them ideal for SMB where business continuity rely on DSL or Ethernet Internet connectivity, or branch offices at new locations where DSL or Ethernet connection is unavailable.

These routers have 1 x RJ-11 WAN port for VDSL2 (including profile VDSL2 35b Supervectoring)/ADSL2+, 1 x GbE WAN/LAN switchable port, 2 x embedded SIM slots that support Cat.6 LTE (SIM slot 2 for Failover), and 1 x versatile USB port for an additional 4G LTE connection or other applications. These WANs provide robust Load Balancing and Failover functionality.

All models support professional features including QoS, High Availability, Route Policy, SPI Firewall, Content Filtering and much more, and can act as controllers to manage VigorAPs and VigorSwitches on the LAN, or can register to VigorACS for cloud-based remote management. The Vigor2865Lac model supports built-in 802.11ac Wave 2 wireless LAN.

The Vigor2865 LTE series router has 2 LTE antennas. A 1 metre extension lead with a magnetic base allows the antennas to be placed in the best position for optimum 3G/4G reception.

LTE/4G Specification

  • LTE/4G category 6
  • 300 Mbps downstream and 50Mbps upstream
  • 4G LTE FDD Band: 1, 3, 5, 7, 8, 20, 28, 32
  • 4G LTE TDD Band: 38, 40
  • 3G WCDMA Band: 1, 5, 8

The SMS feature allows status and alerts to be sent by the router, or an IT admin can reboot the router remotely. Learn more

For mission critical applications, the Vigor2865 LTE series routers can be used in High Availability mode to provide uninterrupted network connectivity in case the primary router fails.

The 4G LTE feature makes the Vigor2865 LTE series routers ideal solutions for applications such as:

  • Remote locations with no fixed line or NBN coverage.
  • Quick setup for new branches waiting for NBN connections.
  • Load Balancing or Failover backup for an existing primary Internet connection which can be any of xDSL/Ethernet/LTE type.
  • Temporary installations such as disaster recovery, emergency, exhibitions, sporting events, etc., where Internet access is required for a short period.
  • Provision of Internet access on public transport such as coaches, buses, trains, freighters, ferries, etc.

The Vigor2865 LTE series routers can be rack mounted using a 1RU rack mount bracket on a standard 19” rack or cabinet.

VDSL2 35b

Download speed up to 300 Mbps

Up to 6 WANs for Lac model

Load Balancing; NAT throughput up to 800 Mbps

Cat.6 4G LTE

300Mbps download and 50Mbps upload speeds

32 x VPN tunnels

IPsec VPN throughput up to 300 Mbps

1. Wireless Antenna (Lac model)
2. Reset Button
3. WLAN/WPS Button (Lac model)
4. LED Indicator
5. 1 x USB 2.0 ports for connection to 3G/4G LTE USB modems, FTP server, network printer and thermometer
6. GbE LAN/WAN Switchable Port: 1x GbE RJ-45
7. Fixed LAN Port: 5x GbE RJ-45
8. Fixed WAN Port: 1x RJ-11 for VDSL2 35b/ADSL2+
9. LTE Antenna
10. Power Input
11. Power On/Off Switch
12. 2 x Standard-sized SIM Slots (SIM slot 2 for Failover)

Key Features


Embedded SIM Slot

Provides 4G/LTE Internet access to where fixed lines are not available without the need for a USB dongle.

DrayDDNS

Free DDNS service to access the router using a fixed hostname of your choice.

Load Balancing

Maximise throughput and reliability by using multiple Internet connections.

Wireless WAN (Wireless model only)

Get Internet access wirelessly from a Wi-Fi network, a mobile hotspot, or a personal hotspot set up on smartphones.

35b Supervectoring Modem

Integrated VDSL modem, supporting VDSL2 profile 35b supervectoring.

Hotspot Web Portal

Market your business and communicate with guests by offering hospitality Wi-Fi.

VPN (Virtual Private Network)

Build a secure and private tunnel from the LAN of the Vigor2865 Series to remote offices and teleworkers over the Internet.

Bandwidth Management

Prevent one device using all the bandwidth with bandwidth limit policy, session limit policy, and QoS settings.

SSL VPN

SSL VPNs work through firewalls providing secure remote access to any network environment.

Central AP Management

Use the Vigor2865 router as a wireless controller to maintain and monitor VigorAPs.

Firewall & Content Filter

Filter web pages by URL keywords or web category to block access to insecure or inappropriate content.

Central Switch Management

Set up VLANs easily from the router and get a centralised hierarchy view of the switches.

Performance Comparison: Vigor2865 vs. Vigor2862


Hardware Acceleration


Without sacrificing traffic control features such as QoS, Bandwidth Limit, WAN Budget, Traffic Graph and Data Flow Monitor, Hardware Acceleration enhances performance for:

  • NAT & routing connections
  • QoS
  • IPsec VPN

Hardware NAT & Routing


With Hardware Acceleration and Hardware QoS enabled, the router supports up to 8k NAT and routing connections, and firewall performance reaching 940Mbps on single WAN and 1.3Gbps combined performance on multi-WANs.

Hardware QoS


Hardware QoS allows prioritization of applications and services on DrayTek routers, to improve performance of critical applications such as VoIP, conferencing and video streaming, etc. Furthermore, it allows flexible bandwidth allocation to suit business requirements.

Hardware IPsec


While the Vigor2865 series already has improved IPsec performance over the previous Vigor2862 series, with Hardware Acceleration enabled, IPsec performance can now reach 800 Mbps. The first 16 tunnels are automatically accelerated on a first come first serve basis. If any drops out, a new tunnel will be put into the accelerator automatically to top off 16 accelerated tunnels.

APP QoS


Application QoS allows prioritisation of applications and services on DrayTek routers to improve and enhance critical applications, such as VoIP, conferencing video streaming, etc. It also allow flexible bandwidth allocation to suit business requirements.

VoIP First

VoIP is always a top priority! The default VoIP port, UDP 5060 (configurable) has priority out-of-box with QoS.

Improve Experience for Business-Critical Apps

Select your business critical apps, and easily put them into QoS classes.

Flexible Bandwidth Allocation

Bandwidth will be reserved for high-priority classes, and can be used by low-priority classes when available.

Technical Specifications

Fixed WAN Port 1x RJ-11 for VDSL2 35b or ADSL2/2+
LAN/WAN Switchable Port 1x 10/100/1000Base-TX RJ-45
Fixed LAN Port 5x 10/100/1000Base-TX RJ-45
SIM Slot 2x Standard-Sized (1 SIM online at a time)
USB Port 1x USB 2.0
LTE Antenna 2x External Dipole, Gain: 3 dBi
Wireless Antenna 2x External Dipole, Gain: 3.5 dBi for 5GHz, 2.3 dBi for 2.4GHz, (ac model)
2.4G WLAN 802.11n 2x2 MIMO 400Mbps (ac model)
5G WLAN 802.11ac Wave 2 2x2 MU-MIMO 867Mbps (ac model)
NAT Throughput 800 Mbps
IPsec VPN Performance 300 Mbps (AES 256 bits)
NAT Throughput w/ Hardware Acceleration 940 Mbps (Ethernet WAN), 1.3 Gbps (Ethernet WAN + DSL WAN)
SSL VPN Performance 130 Mbps
Max. Number of NAT Sessions 60000
Max. Concurrent VPN Tunnels 32
Max. Concurrent OpenVPN + SSL VPN 16
VDSL Standards ITU-T G.993.2 Annex A/B/M/Q (up to Profile 35b), T1.424, ITU-T G.993.5 (Vectoring)
VDSL2 Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b (not G.fast)
ADSL Standards ITU-T G.992.1 (G.dmt), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5 (ADSL2+) (G.adslplus), T1.413 Issue 2
Other Standards ITU-T G.994.1 (G.hs), ITU-T G.997.1 (G.ploam), ITU-T G.998.4 (Retransmission)
Band Plan 998, 997
LTE Category 6
Max. Data Rate 300 Mbps downlink, 50 Mbps uplink
FDD Band 1 (2100MHz), 3 (1800MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz)
TDD Band 38 (2600MHz), 40 (2300MHz), 41(2540-2640MHz, for Saudi Arabia only)
WCDMA (3G) Band 1, 8
IPv4 PPPoE, DHCP, Static IP, PPTP/L2TP
IPv6 PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
Wireless WAN 2 (ac model)
Load Balancing IP-based, Session-based
WAN Active on Demand Link Failure, Traffic Threshold
Connection Detection ARP, Ping
VLAN 802.1q Tag-based, Port-based
Max. Number of VLAN 16
Number of LAN Subnet 8
DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
Hotspot Authentication Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP
Policy-based Routing Protocol, IP Address, Port, Domain, Country
IGMP IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave,  (Requires external storage)
Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN
User Authentication Local, RADIUS, LDAP, TACACS+, mOTP
IKE Authentication Pre-Shared Key, X.509
IPsec Authentication SHA-1, SHA-256
Encryption MPPE, DES, 3DES, AES
VPN Trunk (Redundancy) Load Balancing, Failover
NAT Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
VPN Pass-Through PPTP, L2TP, IPsec
Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Port, Application
Number of SSID 4 per radio band
Security Mode OWE, WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3
Authentication Pre-Shared Key, 802.1X
WPS PIN, PBC
WDS Repeater (5GHz only)
Access Control Access List, Client Isolation, Hide SSID, WLAN Scheduling,  (5GHz Only)
Local Service HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
Config File Compatibility Vigor2862 LTE
Firmware Upgrade TFTP, HTTP, TR-069
Access Control Access List, Brute Force Protection
Notification Alert SMS, E-mail
SNMP v1, v2c, v3
Central VPN Management 8 VPN
Central AP Management 20 VigorAP
Mesh Network 7 VigorAP (ac model)
Central Switch Management 10 VigorSwitch
Power Supply DC 12V @ 2A-2.5A
Max. Power Consumption 28.1 watts
Dimension 241mm x 166mm x 46mm
Weight 670g (Lac model)
Operating Temperature 0 to 45°C
Storage Temperature -25 to 70°C
Operating Humidity (non-condensing) 10 to 90%
