Dahua WizSense offers AI-driven security solutions with SMD 4.0, AI SSA, and perimeter protection for accurate human and vehicle detection. Featuring Smart H.265+, cyber security, IP67 protection, and intelligent video analytics, it ensures high-performance surveillance with minimal false alarms.
100% Guarantee Safe Checkout
Description

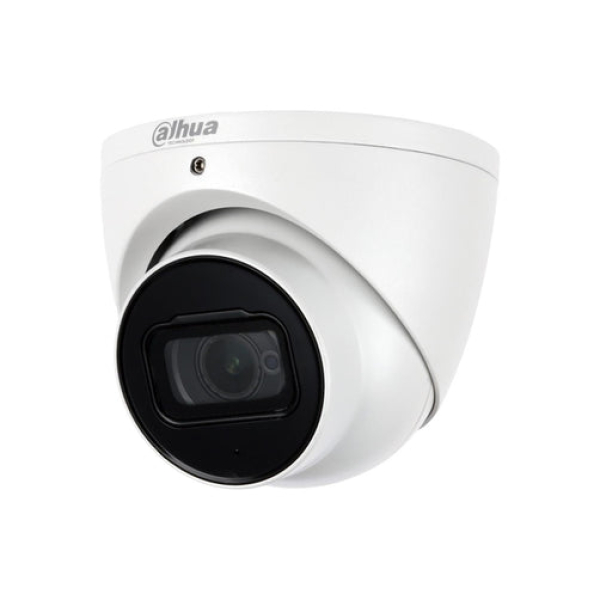

Manufacture: Dahua | Model: DH-IPC-HDW3466EMP-S-AUS
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chips and deep learning algorithms. It focuses on human and vehicle detection with high accuracy, enabling users to quickly act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple, and inclusive products and solutions.
SMD 4.0: Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
AI SSA: Dahua AI Scene Self-adaptation (AI SSA) adopts deep learning algorithms to detect environmental conditions such as rain, fog, backlight, low light, and flicker, adjusting the image parameters to suit the conditions, ensuring clear images in all environments.
Smart H.265+ & Smart H.264+: With advanced scene-adaptive rate control algorithms, Dahua smart encoding technology provides higher encoding efficiency than H.265 and H.264. It offers high-quality video while reducing storage and transmission costs.
Perimeter Protection: Using deep learning algorithms, Dahua Perimeter Protection technology accurately detects humans and vehicles. In restricted areas (such as pedestrian or vehicle zones), false alarms from intelligent detection (such as tripwire and intrusion) are minimized.
Protection (IP67, Wide Voltage):
IP67: The camera passes a series of strict tests for dust and water immersion. It is dustproof and can function normally after being submerged in 1 meter of water for up to 30 minutes.
Wide Voltage: The camera allows ±30% input voltage tolerance, making it suitable for outdoor environments with unstable voltage.
Cyber Security: Dahua network cameras employ a variety of security technologies, including security authentication, access control protocols, trusted protection, encrypted transmission, and encrypted storage. These technologies strengthen the camera’s defense against cyber threats and prevent malicious attacks.
Sensor Type | 1/3" CMOS |
Max. Resolution | 2688 (H) × 1520 (V) |
ROM | 128 MB |
RAM | 512 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination | 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
S/N Ratio | >56 dB |
Illumination Distance | 50 m (164.04 ft) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 2 (IR LED) |
Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
Lens Type | Fixed-focal |
Lens Mount | M12 |
Focal Length | 2.8 mm; 3.6 mm; 6 mm |
Max. Aperture | F1.4 |
Field of View | 2.8 mm: Horizontal:102°; Vertical: 54°; Diagonal: 121° 3.6 mm: Horizontal:84°; Vertical: 42°; Diagonal: 101° 6 mm: Horizontal:52°; Vertical: 28°; Diagonal: 61° |
Iris Control | Fixed |
Close Focus Distance | 2.8 mm: 0.7 m (2.30 ft) 3.6 mm: 1.3 m (4.27 ft) 6 mm: 2.6 m (8.53 ft) |
Features | Tripwire, intrusion (support classification and accurate detection of vehicle and human) |
AI SSA | Yes |
Quick Pick | With AI NVR, quickly pick up human/vehicle targets from SMD events |
Smart Search | Works with Smart NVR for intelligent search and event extraction |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
Day/Night | Auto (ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
Scene Self-adaptation (SSA) | Yes |
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Auto |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) | Yes (4 areas) |
Defog | Yes |
AFSA | Yes |
Image Rotation | 0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower) |
Mirror | Yes |
Privacy Masking | 4 areas |
Built-in MIC | Yes |
Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
Alarm Events | No SD card; SD card full; SD card error; service life warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene change; audio detection; voltage detection; SMD; safety exception |
Network Port | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
Power Supply | 12 VDC/PoE (802.3af) |
Power Consumption | Basic: 3.3 W (12 VDC); 4.2 W (PoE) Max. (WDR + IR intensity + Intelligence): 7.1 W (12 VDC); 7.9 W (PoE) |
Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F) / Less than 95% RH |
Storage Temperature | –40 °C to +60 °C (–40 °F to 140 °F) |
Protection | IP67 |
Casing | Metal |
Product Dimensions | 93.6 mm × Φ106.0 mm (3.69" × Φ4.17") |
Net Weight | 500 g (1.10 lb) |
Gross Weight | 770 g (1.70 lb) |
