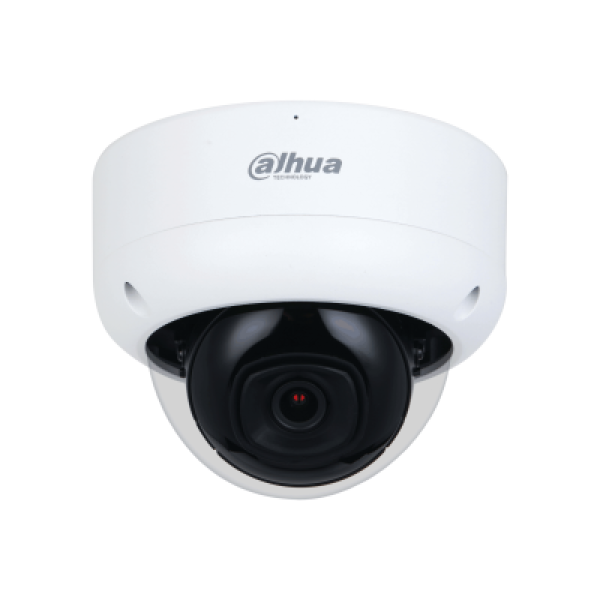

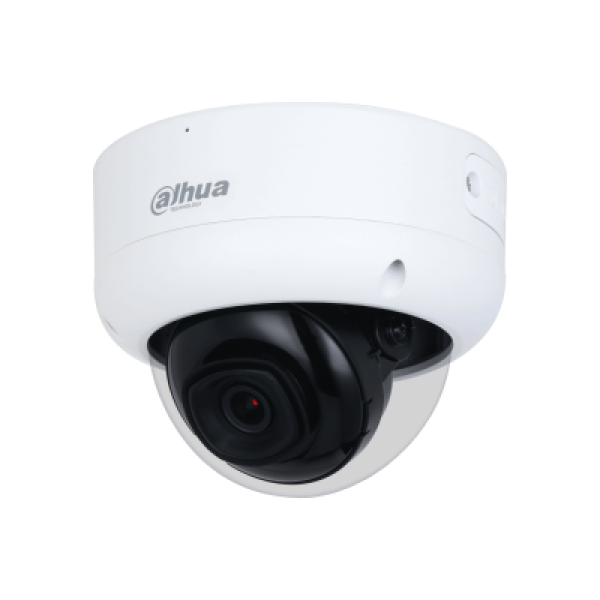

| Camera :- |
|
| Image Sensor |
1/2.7" CMOS |
| Max. Resolution |
3072 (H) × 2048 (V) |
| ROM |
128 MB |
| RAM |
1 GB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
0.005 [email protected] (Color, 30 IRE)
0.0005 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on) |
| S/N Ratio |
>56 dB |
| Illumination Distance |
30 m (98.43 ft) |
| Illuminator On/Off Control |
Auto/Manual |
| Illuminator Number |
3 (IR LED) |
| Pan/Tilt/Rotation Range |
Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355° |
| Lens :- |
|
| Lens Type |
Fixed-focal |
| Lens Mount |
M12 |
| Focal Length |
2.8 mm
3.6 mm; |
| Max. Aperture |
F1.4 |
| Field of View |
2.8 mm: Horizontal: 111°; Vertical: 58°; Diagonal: 132°
3.6 mm: Horizontal: 92°; Vertical: 45°; Diagonal: 110° |
| Iris Control |
Fixed |
| Close Focus Distance |
2.8 mm: 1.1 m (3.61 ft)
3.6 mm: 1.7 m (18.37 ft) |
| DORI Distance |
Lens | Detect | Observe | Recognize | Identify
2.8 mm | 63.6 m | 25.4 m | 12.7 m | 6.4 m
3.6 mm | 85.4 m | 34.2 m | 17.1 m | 8.5 m |
| Intelligence :- |
|
| IVS (Perimeter Protection) |
Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
| AI SSA |
Yes |
| Quick Pick |
With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video :- |
|
| Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec |
Smart H.265+
Smart H.264+ |
| AI Coding |
AI H.265
AI H.264 |
| Video Frame Rate |
Main stream: 3072 × 2048 @ (1–25/30) fps
Sub stream 1: 704 × 576 @ (1–25 fps)/
704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps) |
| Stream Capability |
3 streams |
| Resolution |
6M(3072 x 2048); 5M (2592 × 1668); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate |
H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps |
| Day/Night |
Auto (ICR)/Color/B/W |
| BLC |
Yes |
| HLC |
Yes |
| WDR |
120 dB |
| cene Self-adaptation (SSA) |
Yes |
| White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control |
Auto |
| Noise Reduction |
3D NR |
| Motion Detection |
OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) |
Yes (4 areas) |
| Defog |
Yes |
| AFSA |
Yes |
| Image Rotation |
0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower) |
| Mirro |
Yes |
| Privacy Masking |
4 areas |
| Audio :- |
|
| Built-in MIC |
Yes |
| Audio Compression |
G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm :- |
|
| Alarm Event |
AS: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception
S: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception |
| Network :- |
|
| Network Port |
RJ-45 (10/100 Base-T) |
| SDK and API |
Yes |
| Network Protocol |
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Cyber Security |
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host |
20 (Total bandwidth: 64 M) |
| Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser |
IE:IE11
Chrome
Firefox |
| Management Software |
Smart PSS; DSS; DMSS |
| Mobile Client |
iOS; Android |
| Port :- |
|
| Audio Input |
1 channel (RCA port) (Only - AS supports) |
| Audio Output |
1 channel (RCA port) (Only - AS supports) |
| Alarm Input |
1 channel in: 5 mA 3–5 VDC (Only - AS supports) |
| Alarm Output |
1 channel out: 300 mA 12 VDC (Only - AS supports) |
| Power :- |
|
| Power Supply |
12 VDC/PoE (802.3af) |
| Power Consumption |
Basic: 4 W (12 VDC); 4.9 W (PoE)
Max. (WDR + IR intensity + Intelligence): 8.5 W (12 VDC); 9.7 W (PoE) |
| Environment :- |
|
| Operating Temperature |
–40°C to +60°C (–40°F to 140°F) /Less than 95% RH |
| Storage Temperature |
–40°C to +60°C (–40°F to 140°F) |
| Protection |
IP67; IK10 |
| Structure :- |
|
| Casing |
Metal |
| Product Dimensions |
89.1 mm × Φ111.7 mm (3.50" × Φ4.40") |
| Net Weight |
516 g (1.14 lb) |
| Gross Weight |
670 g (1.48 lb) |
