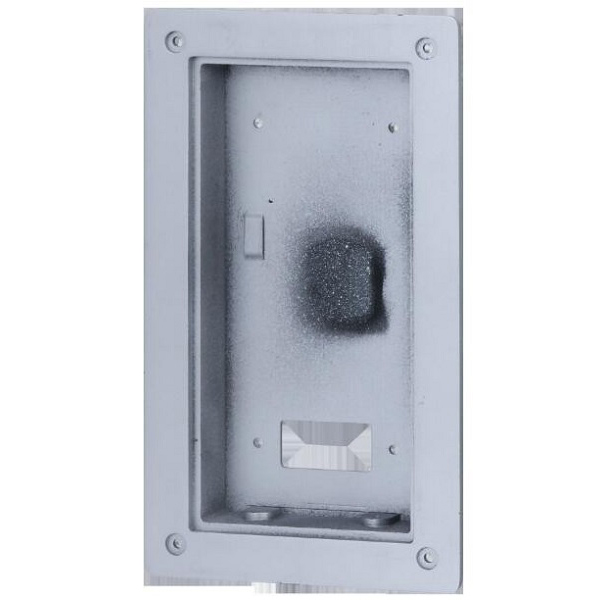

Dahua Flush Mount Bracket For Vto6221e-p & Vto3221e-p DH-AC-VTM116-01

Description

Manufacture # Dahua | Model # DH-AC-VTM116-01

Dahua Flush Mount Bracket For Vto6221e-p & Vto3221e-p.

Features:

• Cut an opening with the size of the mounting box on the wall.
• Pull the reserved cables through the cable hole on the mounting box, and then fix the mounting box in the wall with cement.
• Connect the cables to the ports on the VTO rear panel through the enclosure.
• Fix the VTO in the enclosure with the M3 screws, and then put sealant between the VTO and the enclosure.
• Fix the VTO and the enclosure in the mounting box with the ST4×25 screws.

Overview:

• Material: ADC12
• Dimensions(Front) : 138.0mm×240.0mm×35.0mm(5.43"×9.45"×1.38")
• Dimensions(rear) : 120.8mm×222.7mm×33.0mm (4.76"×8.77"×1.30")
• Wall Opening Dimensions: 120.8mm×222.7mm×33.0mm (4.76"×8.77"×1.30")

Manufacturer Warranty: 01 Years Limited Warranty
