Sku: DH-IPC-HDW5442TMP-AS-LED-0280B
Brand: Dahua
Category: IP Cameras
Availability: In Stock
Ships in 1-2 days.
Pickup from Seven Hills in 1-2 days.
Shipping Calculator
Find
We Accept

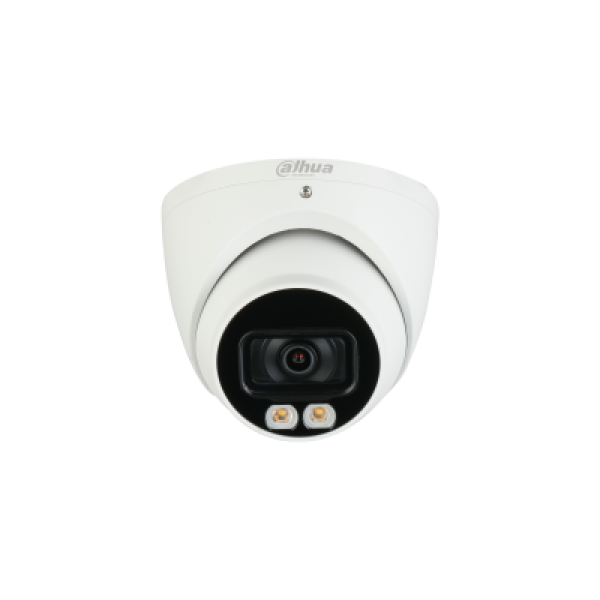

Manufacture: Dahua | Model: DH-IPC-HDW5442TMP-AS-LED-0280B
The Pro AI-series contains Face Detection, Perimeter Protection, and People Counting functions. Powered by deep-learning Artificial Intelligence algorithms, significantly improved accuracy. Meanwhile, the series features starlight and smart IR technology. This series is fully protected from dust and water, certified to IP67 standards.
| Sensor | 1/1.8” 4Megapixel progressive scan CMOS |
| Effective Pixels | 2688 (H) × 1520 (V) |
| RAM/ROM | 512 MB/128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3 s–1/100000 s |
| Minimum Illumination | 0.002 [email protected] |
| LED Distance | Distance up to 40 m (131.2 ft) |
| LED On/Off Control | Auto/Manual |
| LEDs | 2 |
| Lens Type | Fixed-focal |
| Mount Type | Board-in |
| Focal Length | 2.8 mm, 3.6 mm, 6.0 mm |
| Max. Aperture | F1.6 |
| Angle of View | H: 113°, V: 60°/H: 89°, V: 48°/H: 56°, V: 31° |
| Aperture Type | Fixed |
| Close Focus Distance | 1.3 m (4.27 ft)/1.9 m (6.23 ft)/3.8 m (12.47 ft) |
| Pan/Tilt/Rotation Range | Pan: 0?–360?; Tilt: 0?–78?; Rotation: 0?–360? |
| Face Detection | Support face image capture |
| Perimeter Protection | Tripwire, intrusion (Recognition of vehicles and people), fast-moving, loitering detection, parking detection, and people gathering |
| People Counting | Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection |
| Compression | H.265, H.264, H.264B, H.264H, MJPEG (sub stream) |
| Smart Codec | Yes |
| Streaming Capability | 3 Streams |
| Resolution | 2688 × 1520, 2560 × 1440, 2304 × 1296, 1080P, 1.3M, 720P, D1, VGA, CIF |
| Frame Rate | Main Stream: 2688 × 1520 (1 fps–25/30 fps), 2560 × 1440 (1 fps–25/30 fps), 1920 × 1080 (1 fps–50/60 fps) |
| Bit Rate | H.264: 32 Kbps–8192 Kbps; H.265: 19 Kbps–8192 Kbps |
| Compression | G.711a, G.711Mu, G.726, AAC, G.723 |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
| Certifications | CE-LVD: EN60950-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU, FCC: 47 CFR FCC Part 15, Subpart B, UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Power Supply | DC 12V (±30%), PoE (802.3af) (Class 0) |
| Power Consumption | <7.2W |
| Operating Conditions | -30° C to +60° C (-22° F to +140° F)/Less than 95% RH |
| Storage Conditions | -30° C to +60° C (-22° F to +140° F) |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | Φ106 mm × 99.2 mm (4.17” × 3.91”) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
