Manufacture: Dahua | Model: DH-SD8A840-HNF-PA

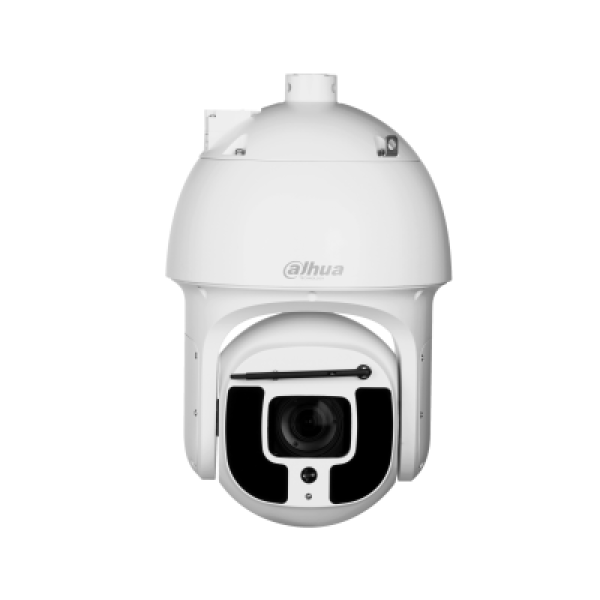

The 4K PTZ Camera is a high-performance surveillance solution designed for superior image clarity, advanced AI capabilities, and long-range monitoring. Equipped with a 1/1.8-inch CMOS sensor and 8MP resolution, it delivers stunning 4K UHD video with exceptional low-light performance. Featuring a powerful 40x optical zoom and 16x digital zoom, this camera provides a flexible field of view ranging from 63.9° to 2.0°. With Smart IR technology and a 500m illumination distance, it ensures reliable monitoring in total darkness. The PTZ functionality offers a 360° pan range and -30° to +90° tilt with auto flip, making it ideal for wide-area surveillance. AI-powered intelligence includes face recognition, auto-tracking, and perimeter protection with tripwire, intrusion, and loitering detection. Multiple video compression formats such as Smart H.265+ and H.264 optimize storage and bandwidth usage. The camera supports up to 3 video streams and features advanced image processing with WDR (120dB), 2D/3D noise reduction, and optical defog for enhanced clarity in challenging environments. With region of interest (RoI), privacy masking, and smart motion detection, this camera is an optimal choice for security applications in critical infrastructures, smart cities, and large-scale surveillance deployments.
| Image Sensor | 1/1.8" CMOS |
| Pixel | 8 MP |
| Max. Resolution | 3840 (H) x 2160 (V) |
| ROM | 8 GB |
| RAM | 2 GB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination (Color) | 0.005 [email protected] |
| Min. Illumination (B/W) | 0.0005 [email protected] |
| Min. Illumination (Illuminator On) | 0 [email protected] |
| Illumination Distance | 500 m (1640.42 ft) |
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR |
| Illuminator Number | 10 IR lights |
| Wiper | Smart wiper |
| Focal Length | 5.6 mm–223 mm |
| Max. Aperture | F1.4–F4.5 |
| Field of View | H: 63.9°–2.0°; V: 37.3°–1.1°; D: 71.2°–2.3° |
| Optical Zoom | 40x |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.5 m–2 m (1.64 ft–6.56 ft) |
| Iris Control | Auto; manual |
| Pan/Tilt Range | Pan: 0° to 360°; Tilt: –30° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–240°/s; Tilt: 0.1°/s–100°/s |
| Preset Speed | Pan: 240°/s; Tilt: 120°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Speed Adjustment | Yes |
| Power-off Memory | Yes |
| Idle Motion | Preset; Tour; Pattern; Scanning |
| PTZ Protocol | DH-SD; Pelco-P/D (auto recognition) |
| Smart Event | Event Trigger: Motion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, and storage anomaly |
| IVS | Object Abandoned/Missing |
| Intelligence | Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction |
| IVS (Perimeter Protection) | Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Face Recognition | Yes |
| Auto Tracking | Yes |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG (Sub Stream 1) |
| Streaming Capability | 3 streams |
| Resolution | 4K (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) |
| Video Frame Rate | Main stream: 4K/4M/1080p/1.3M/720p (1–25/30 fps); Sub stream 1: D1/CIF (1–25/30 fps); Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H264: 512 kbps–16384 kbps; H265: 256 kbps–10240 kbps |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Defog | Optical |
| Digital Zoom | 16x |
| Image Rotation | 0°; 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view |
| S/N Ratio | ≥55 dB |
| Audio Compression | G.711a; G.711mu; G.726; AAC; G722.1; G.729; MPEG2-Layer2; G723 |
