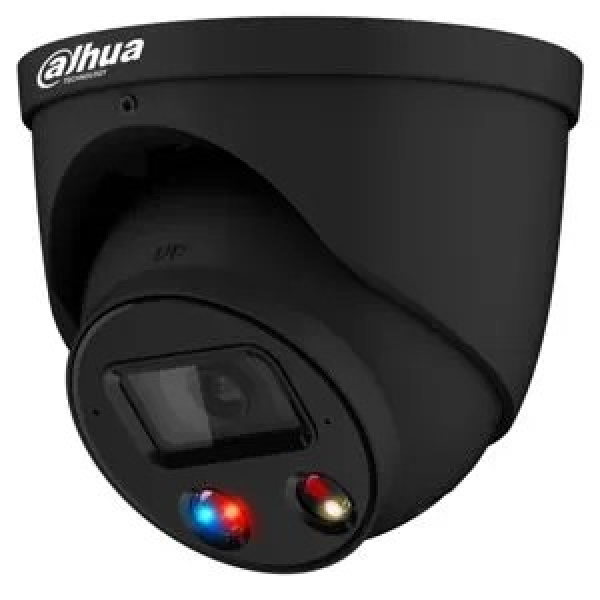

Manufacture: Dahua | Model: DH-IPC-HDW3549HP-AS-PV-S3-BLK
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt an independent AI chip and deep learning algorithm. It focuses on human and vehicle detection with high accuracy, enabling users to act quickly on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple, and inclusive products and solutions.
With an advanced deep learning algorithm, the Dahua WizSense 3 Series network camera supports intelligent functions such as perimeter protection and smart motion detection. Utilizing Starlight Technology, this series provides superior image quality even in low-light conditions.
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2592 (H) × 1944 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.003 [email protected] (Color, 30 IRE) 0.0003 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | ? 56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR) 30 m (98.43 ft) (Warm Light) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) 2 (Warm Light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Field of View | 2.8 mm: Horizontal: 97° × Vertical: 70° × Diagonal: 128° 3.6 mm: Horizontal: 78° × Vertical: 58° × Diagonal: 102° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft) 3.6 mm: 2.2 m (7.22 ft) |
| IVS (Perimeter Protection) | Tripwire; Intrusion (Supports classification and accurate detection of vehicle and human) |
| SMD 3.0 | Less false alarm, longer detection distance |
| Intelligent Search | Works with Smart NVR for refined intelligent search, event extraction, and merging |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Day/Night | Auto (ICR)/Color/B/W |
| Privacy Masking | 8 areas |
| Audio | Built-in MIC: Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
| User/Host | 20 (Total bandwidth: 72 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE8/9/11; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | iOS; Android |
| Certification | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.4 W (12 VDC); 3.1 W (PoE) Max: 7.9 W (12 VDC); 9.7 W (PoE) |
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F) / Less than 95% RH |
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection Grade | IP67 |
| Casing | Metal + Plastic |
| Dimensions | 288.4 mm × 94.4 mm × 84.7 mm (11.4" × 3.7" × 3.3") (L × W × H) |
| Net Weight | 1.0 kg (2.20 lb) |
| Gross Weight | 1.23 kg (2.71 lb) |
