Manufacture: Dahua | Model: DH-HAC-HDW2501TP-Z-A-DP-27135-S2

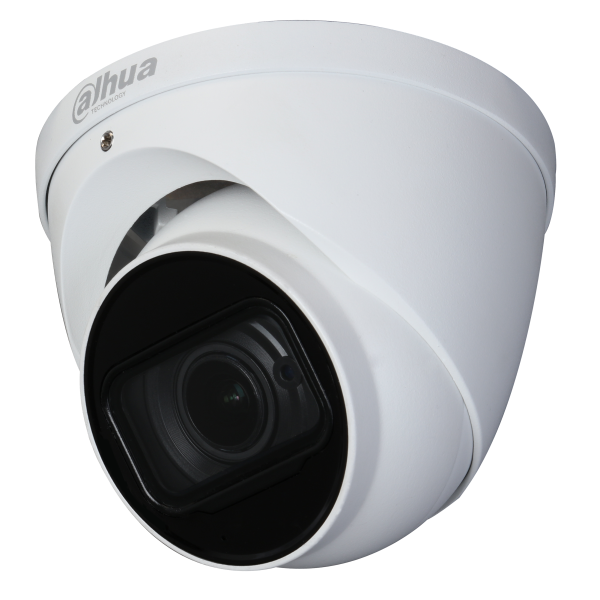

Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Pro series 5MP HDCVI camera features a compact design and offers a high-quality image at a friendly price. It offers various motorized/fixed lens models with 120 dB true WDR and a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance make the camera an ideal choice for SMB solutions.
Starlight technology generates clear color images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.
| Image Sensor | 1/2.7 inch CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Pixel | 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.001 Lux/F1.6; 30IRE; 0 Lux IR on |
| Illumination Distance | 60 m (196.9 ft) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 2 |
| Pan | 0°–360° |
| Tilt | 0°–78° |
| Rotation | 0°–360° |
| Lens Type | Motorized vari-focal |
| Auto Focus | Yes |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.6 |
| Field of View | Horizontal: 31.4°–113° Vertical: 17.6°–58° Diagonal: 36°–138° |
| Iris Type | Fixed iris |
| Close Focus Distance | 0.8 m (2.6 ft) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/WDR/HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Smart Illumination | Yes |
| Digital Zoom | 4x |
| Defog | Electronic defog |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Certifications | CE, FCC, UL |
| Audio Interface | One channel built-in mic |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
| Power Supply | 24V AC±25% / 12V DC±10% |
| Power Consumption | Max. 9.5W (12V DC, IR on) |
| Operating Temperature | –30°C to +60°C (–22°F to +140°F); < 95% (non-condensation) |
| Storage Temperature | –30°C to +60°C (–22°F to +140°F); < 95% (non-condensation) |
| Protection Grade | IP67 |
| Casing | Metal throughout the whole casing |
| Camera Dimensions | Φ122 mm × 104.8 mm (Φ4.8" × 4.13") |
| Net Weight | 0.63 kg (1.40 lb) |
| Gross Weight | 0.79 kg (1.70 lb) |
