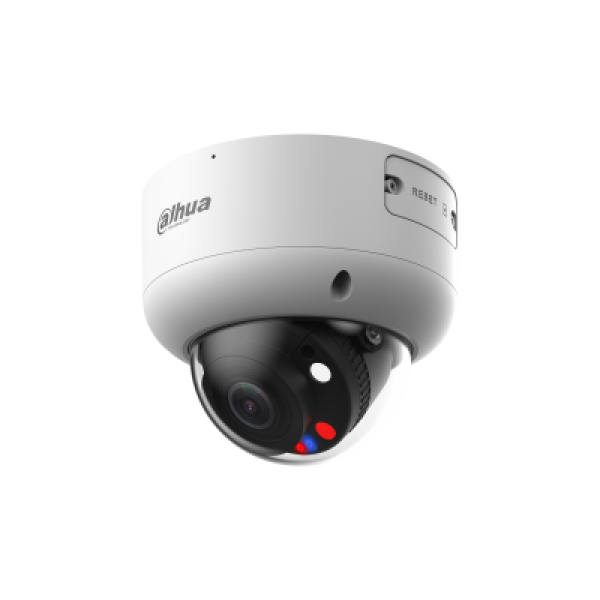

Dahua 5MP Smart Dual Light Active Deterrence Vari focal Dome WizSense Network Camera

Sku: DH-IPC-HDBW3549R1-ZAS-PV

Availability: Out of Stock

Brand: Dahua

Category: IP Cameras

$369.60

Dahua WizSense 3 Series offers AI-powered security cameras with human and vehicle detection, advanced perimeter protection, and starlight technology for clear images in low-light conditions. Featuring a 5MP CMOS sensor, H.265 video compression, and smart motion detection, it ensures efficient, high-quality surveillance with advanced alarm and two-way audio capabilities.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Dahua | Model: DH-IPC-HDBW3549R1-ZAS-PV



Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt an independent AI chip and deep learning algorithm. It focuses on human and vehicle detection with high accuracy, enabling users to act quickly on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple, and inclusive products and solutions.

With an advanced deep learning algorithm, the Dahua WizSense 3 Series network camera supports intelligent functions such as perimeter protection and smart motion detection. Utilizing Starlight Technology, this series provides superior image quality even in low-light conditions.



Key Features



  • 5-MP 1/2.7" CMOS image sensor, low luminance, and high-definition image.
  • Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4 MP (2688 × 1520) @25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in warm light and IR LED; max. IR illumination distance is 50 m and warm light distance is 40 m.
  • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire (both functions support classification and accurate detection of vehicles and humans).
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 input, 1 output; audio: 1 input, 1 output; supports max. 256 G Micro SD card; built-in dual MICs; 1-channel speaker; supports two-way talk.
  • 12 VDC/PoE power supply.
  • IP67, IK10 protection.
  • Sound and light alarm (red and blue lights).
  • SMD 3.0.
  • One-click arming/disarming through alarm input.

Image Sensor 1/2.7" CMOS
Max. Resolution 2960 (H) × 1668 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio >56 dB
Illumination Distance 50 m (164.04 ft) (IR)
40 m (131.23 ft) (warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
2 (warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens Type Motorized vari-focal
Lens Mount φ16
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.0
Field of View Horizontal: 113°–36°
Vertical: 57°–20°
Diagonal: 137°–40°
Iris Type Fixed
Close Focus Distance 1.5 m (4.92 ft)
IVS (Perimeter Protection) Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
SMD 3.0 Less false alarm, longer detection distance
Intelligent Search Work together with Smart NVR to perform refined intelligent search, event extraction and merging to event videos.
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Stream Capability 3 streams
Resolution 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5 mA 3V–5 VDC
Alarm Output 1 channel out: 300 mA 12 VDC
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 3.3 W (12 VDC); 4.7 W (PoE)
Max. (H.265+ main stream/IR intensity + warm light on): 7.7 W (12 VDC); 9 W (PoE)
Operating Conditions –30 °C to +60 °C (–22 °F to +140 °F)/Less than 95% RH
Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade IP67, IK10
Casing Metal
Dimensions 105 mm × Φ126.0 mm (4.13" × Φ4.96")
Net Weight 0.73 kg (1.61 lb)
Gross Weight 0.9 kg (1.98 lb)
